HDNB-R2-Green OTT BOX

  • HDNB-R2-Green
  • MXT

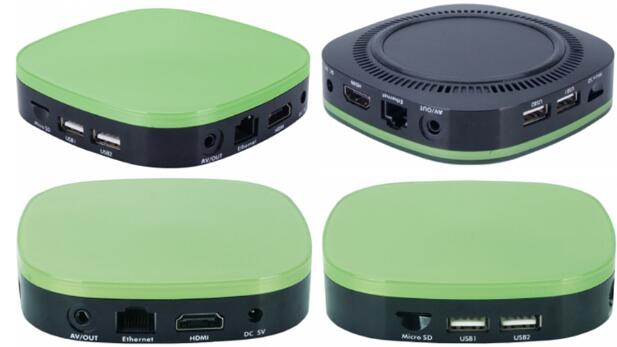

HDNB-R2-Green OTT BOX

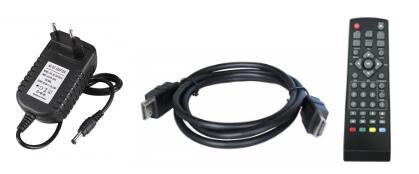

Accessories

HDNB-R2-Green OTT BOX

Specifications

Model

HDNB-R2

CPU

Rockchip 3229 Quad-Core(1.5GHZ)

Quad-Core(1.5GHZ)

1.5 GHz

GPU

Quad-core ARM Mali-450 GPU 3D Graphics Processing Unit

600MHz+

OpenGL ES 1.1/2.0 and OpenVG 1.1 support

Memory

DDR3 1G 1066MHz

Flash

EMMC 8GB (Support 16GB)

OS

Android 5.1(up to 6.0)

Video/Picture Decoder

H.265 HEVC MP@L4.1 up to 4K*2K@60fps

H.264 AVC HP@L4.2 up to 4K*2K@60fps

H.264 MVC up to 1080P@60fps

MPEG-4 ASP@L5 up to  4K*2K@60fps (ISO-14496)

WMV/VC-1 SP/MP/AP up to  4K*2K@60fps

AVS JiZhun Profile up to  4K*2K@60fps

MPEG-2 MP/HL up to  4K*2K@60fps (ISO-13818)

MPEG-1 MP/HL up to  4K*2K@60fps(ISO-11172)

RealVideo 8/9/10 up to 4K*2K@60fps

WebM up to VGA

Multiple language and multiple format sub-title video support

MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

Supports JPEG thumbnail, scaling, rotation and transition effects

Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats

Video/Picture Encoder

Independent JPEG and H.265 encoder with configurable performance/bit-rate

MKV,WMV/VC-1 SP/MP/AP,MPG,MPEG,dat,avi,mov,iso,mp4,rm,H.264,H.265,realVideo 8/9/10, VP8/9,up to 2160P



Audio Decoder

Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 5.1 down-mixing

Vedio Output

CVBS*1,HDMI*1

Input Interface

USB 2.0 *4

TF Card Slot *1

IEEE 802.3 10/100/1000 Gigabit Ethernet RJ45 *1

Super Wi-Fi AP6210 onboard, Support Bluetooth 4.0

Power Supply

100~240V 50/60Hz IN, 5V/2A OUT
