Detailed Product Description
Material: | Cold-rolling Steel | Type: | Sliding Type |
Environmental Temperature: | -25 - 55°C | Atmosphere Pressure: | 70~106Kpa |
Relative Humidity: | <85%(when The Temperature Is Below 30°C) | Port Numbers: | 48 Cores |

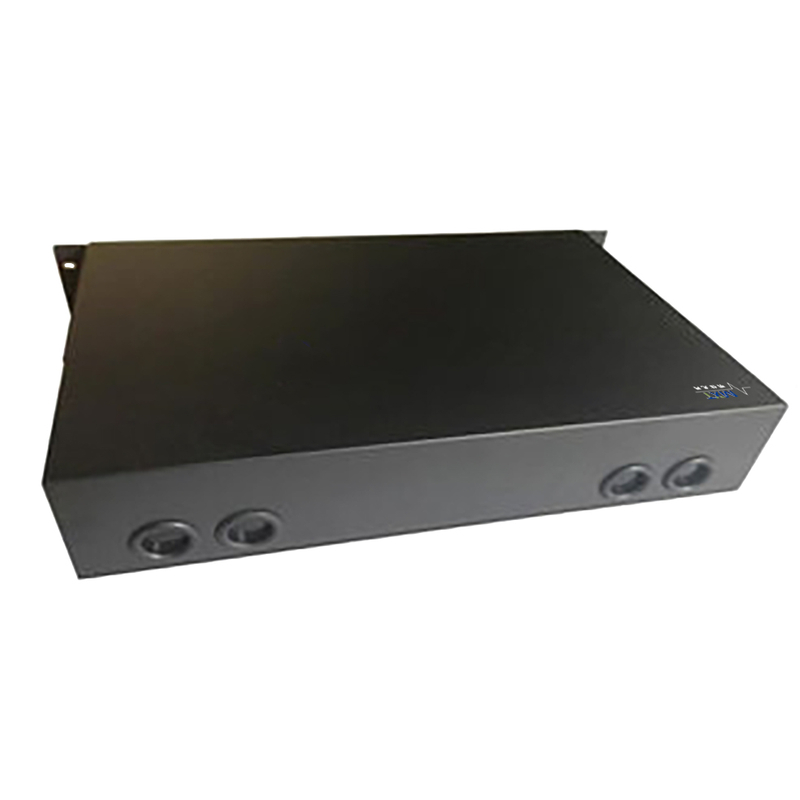

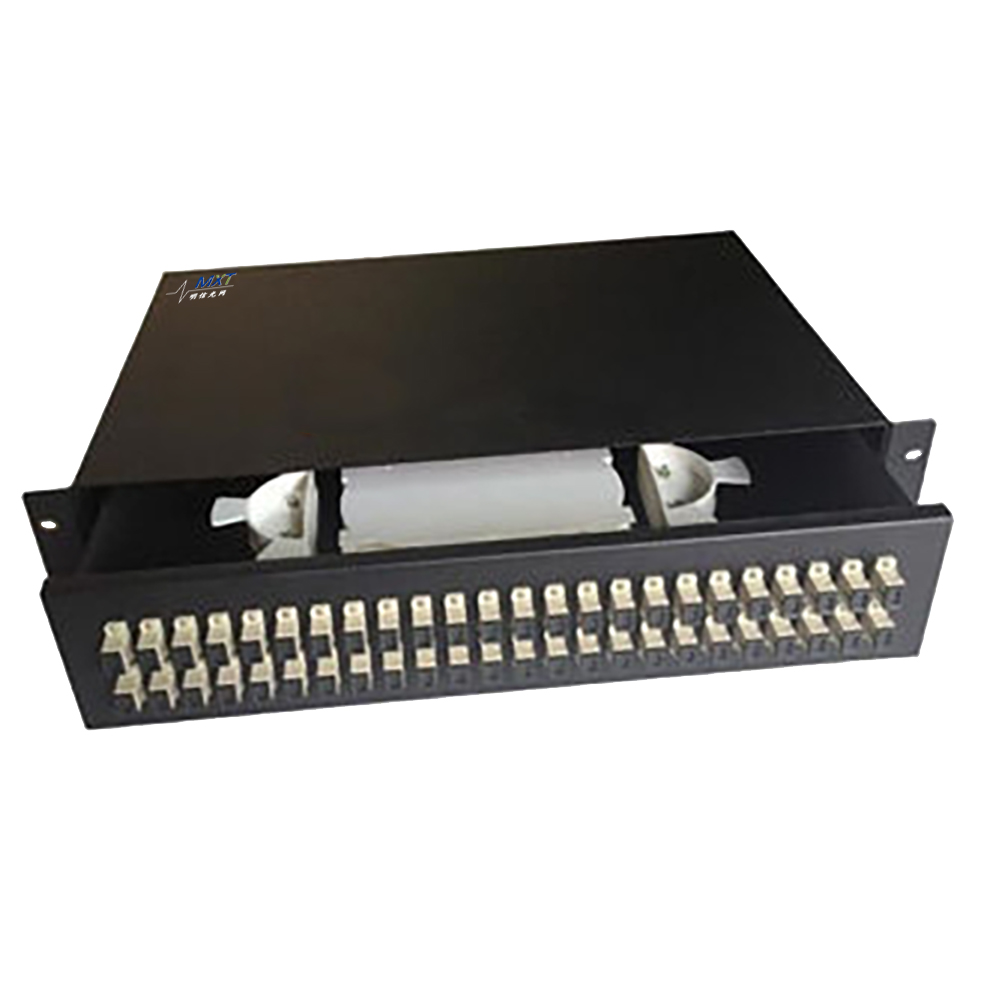

Steel Sc Fiber Optic Joint Box , 48 Port Fiber Patch Panel Drawer Type
● Suitable for the protective connection between cables and pigtails
● Suitable for the connection between optical cables and optical communication device
● Unique structure, easy installation, for indoor use
● Rack Mount, Wall Mount. Suitable for FC adapter,ST adapter,SC adapter, LC adapter etc.
● Capacity: 12,24,32,48,64,72,96 splices
● Adapters installed: FC adapter ,ST adapter,SC adapter, LC adapter etc
● Suitable for ribbon and bunchy fiber cable
Features
● Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.
● The box are Rack Mounted, which is convenient to install and dismantle;
● The splice tray could be piled one upon another, flexible to turn;
● The curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray;
● The box is of unique structure, reasonable layout, and has adequate room for operation;
● Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of
cables flexibly to make sure the cables are clamp tightly;
● The indoor type is of excellent seal performance, which could prevent water from entering effectively.
Parameter
Environmental temperature: | -25 - 55°C |
Relative humidity: | <85%(when the temperature is below 30°C) |
Atmosphere pressure: | 70~106Kpa |
Insulating resistance: | >2×104 MΩ/500VDC |
Voltage-resistance strength: | Under the effect of 15kv/DC/1min, non-puncture, and no arc-over. |
