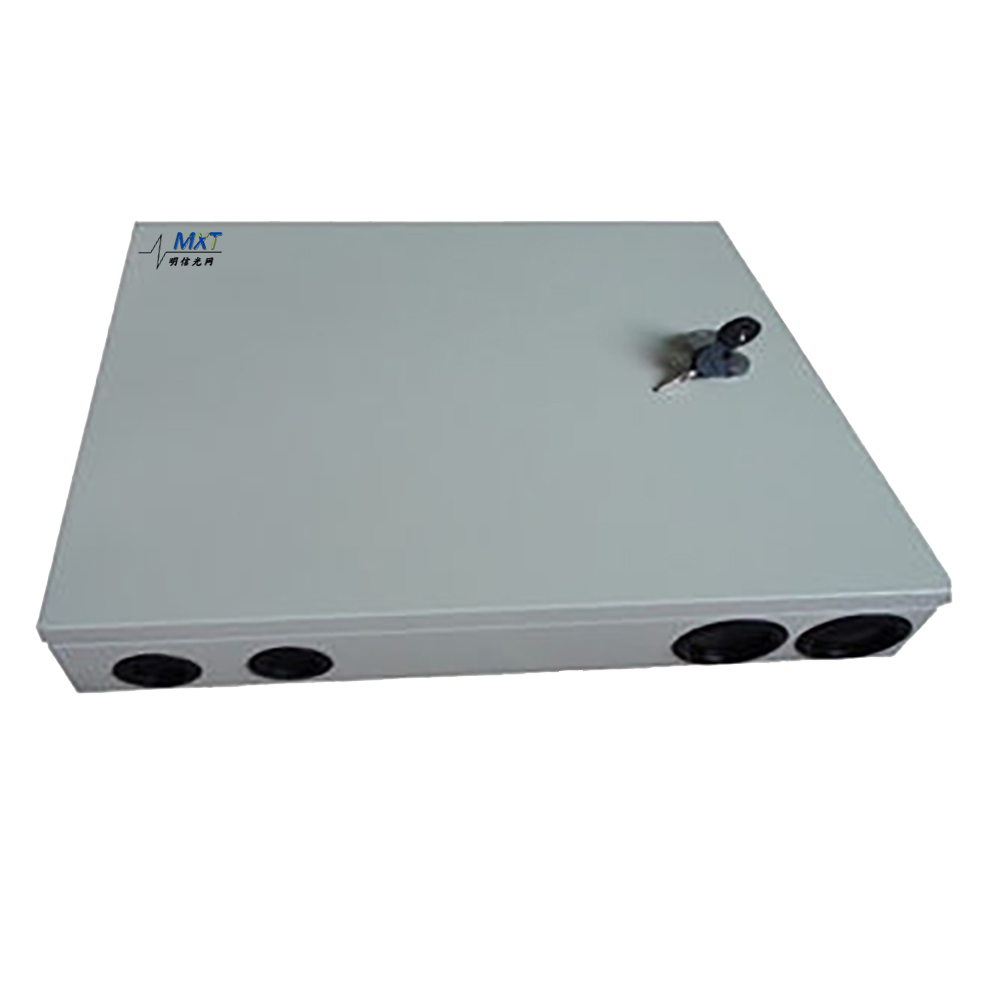

ODF 24 Fc Port Wall Mount Patch Panel Enclosure, Fiber Optic Terminal Box

This series optical distribution box can be used in the connection and dispatch of outdoor optical fiber communication links , available for the connection of optical cable , optical fiber and patch cord, with the advantages of artistic appearance , convenient operation and long service life.

  • MXT

Detailed Product Description

Material:

Cold-rolling Steel

Type:

Wall Mount Type

Environmental Temperature:

-25 - 55°C

Atmosphere Pressure:

70~106Kpa

Relative Humidity:

<85%(when The Temperature Is Below 30°C)

Port Numbers:

24 Cores


ODF 24 Fc Port Wall Mount Patch Panel Enclosure , Fiber Optic Terminal Box

This series optical distribution box can be used in the connection and dispatch of outdoor optical fiber communication links , available for the connection of optical cable , optical fiber and patch cord, with the advantages of artistic appearance , convenient operation and long service life.


Application

Telecommunications subscriber loop; Fiber to the home (FTTH); LAN/WAN; CATV


Characteristics

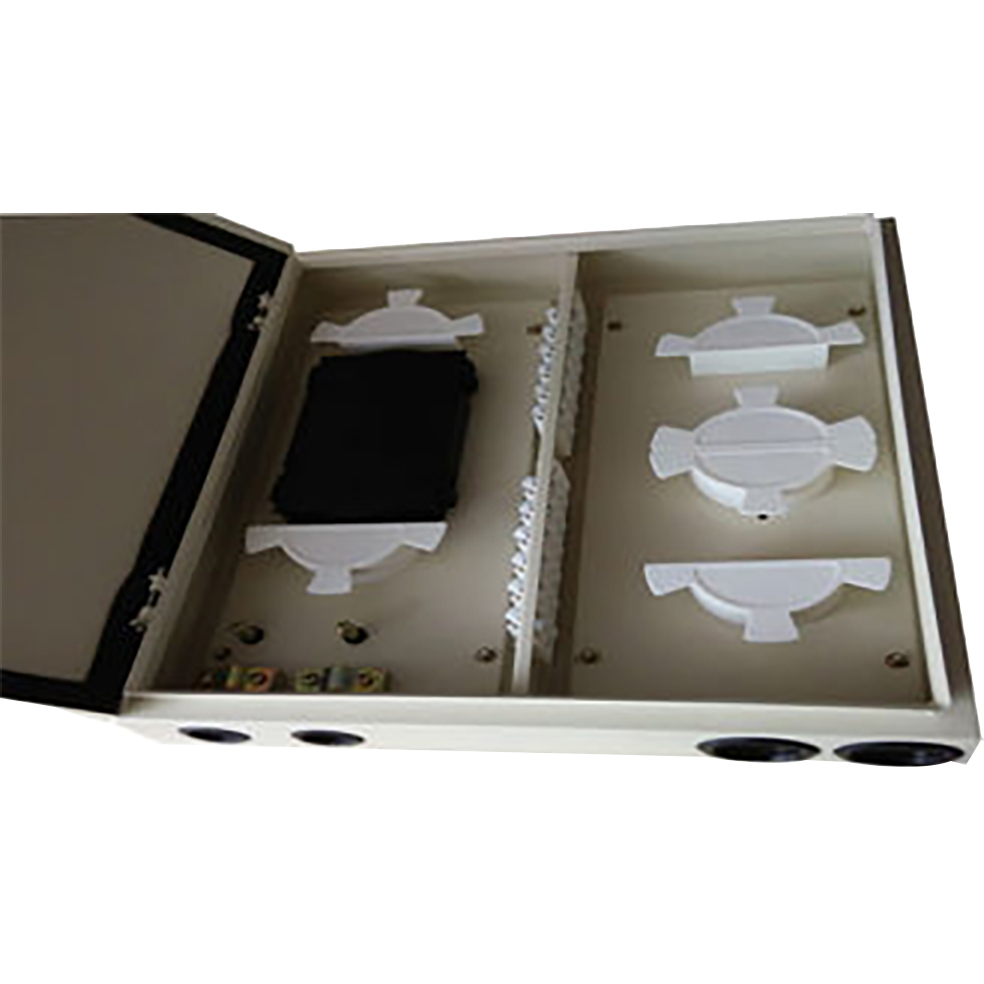

● It is composed of case body, fiber optical splice tray and adaptor fixing frame.

● It is devided into two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord. Combine fusion and connection, surplus fiber holding, and patch cord holding in integration.

● Surplus fibers can be twisted around two special plastic rings, which ensure the bending radius is bigger than 40mm.

● Adopt 6 ports adaptor fixing frame to fix adaptors which available for different types of adaptors, easy for operation and avoid any unexpected damage to fiber.

● Cable can lead in from the bottom of the box, the entry is under the protection of special rubber parts.

a

Parameter

Environmental temperature:

-25 - 55°C

Relative humidity:

<85%(when the temperature is below 30°C)

Atmosphere pressure:

70~106Kpa

Insulating resistance:

>2×104 MΩ/500VDC

Voltage-resistance strength:

Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
