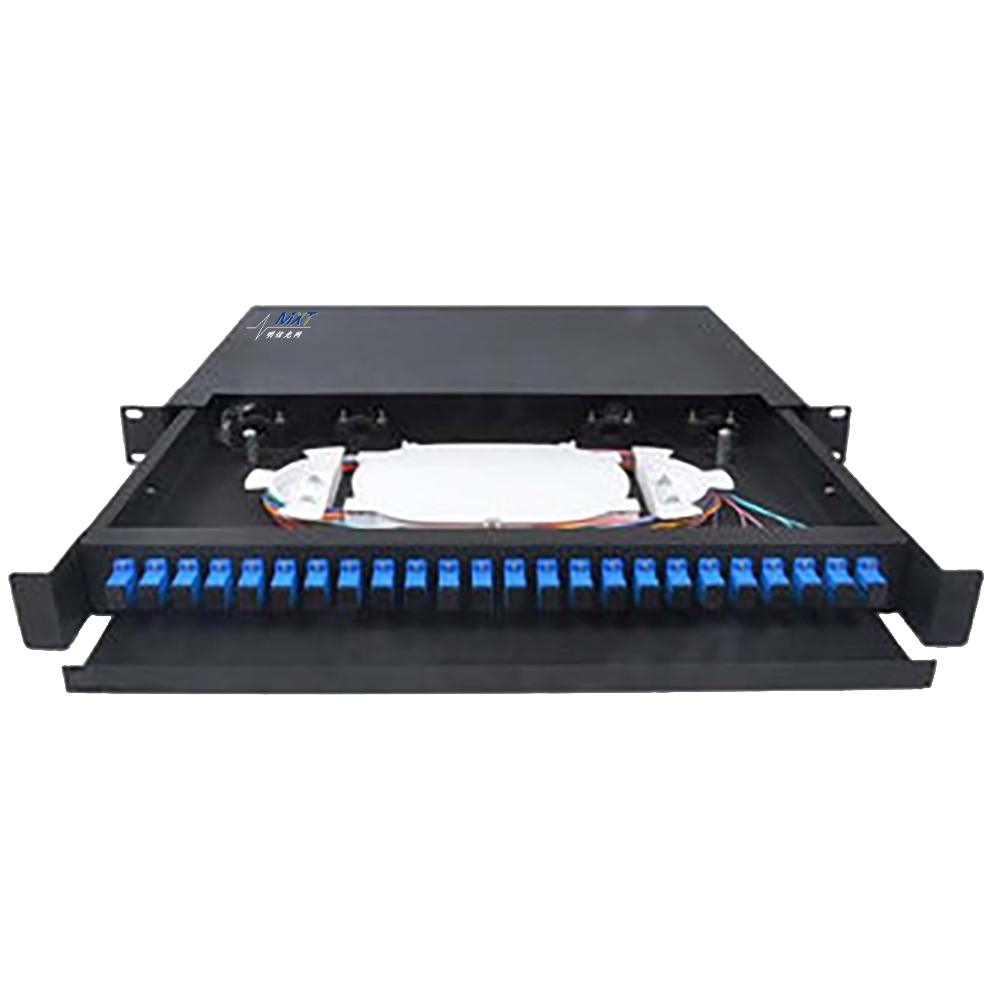

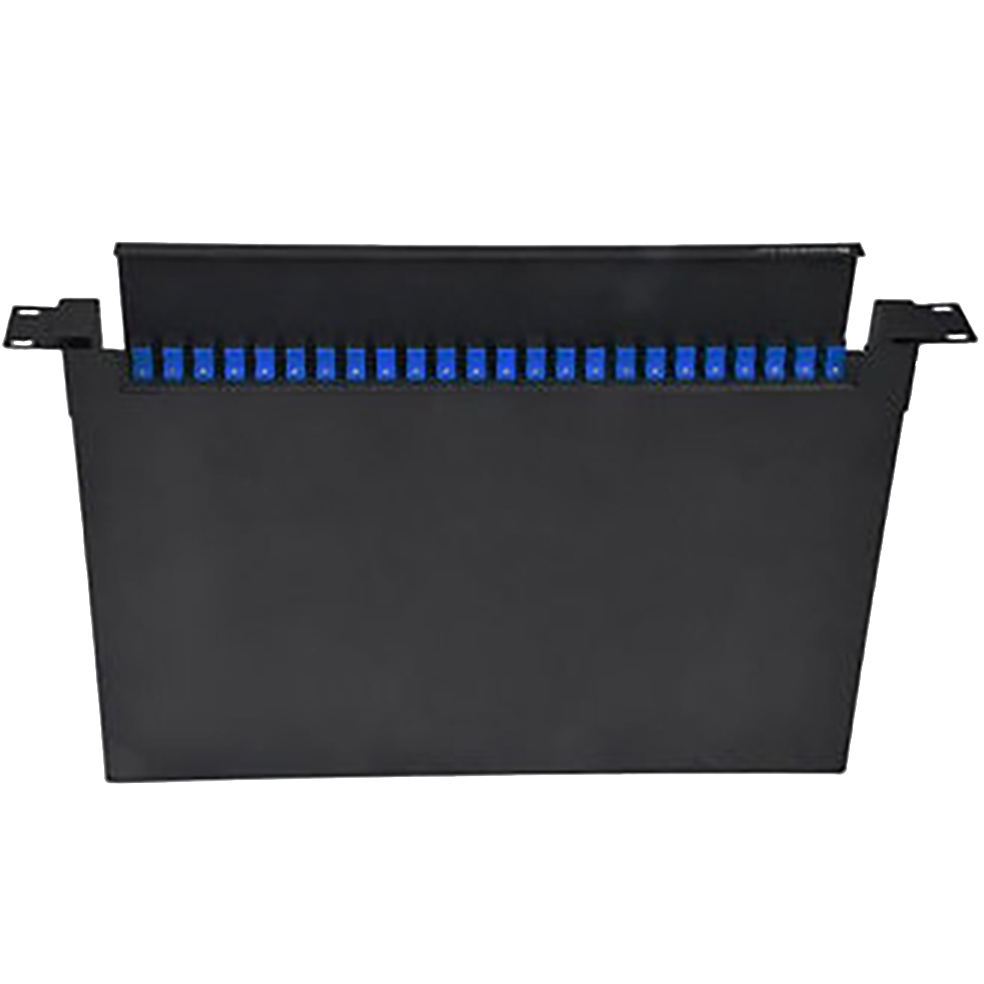

24 Port Fiber Optic Patch Panel 1U 19 Inch SC / LC Connector Drawer With Guild Rail

  • MXT

Detailed Product Description


Optical Distribution Frame ( ODF)

ODF Type:

Rack Mounted &Drawer With Guild Rail


Galvanized Steel Sheet Or Cold Rolled Steel Sheet Or Aluminium Sheet

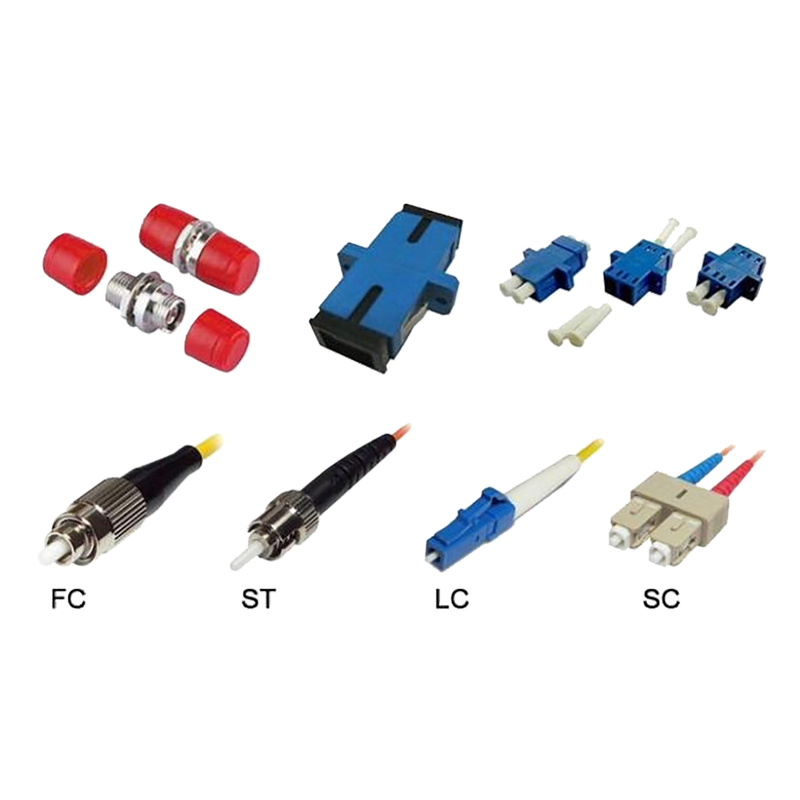

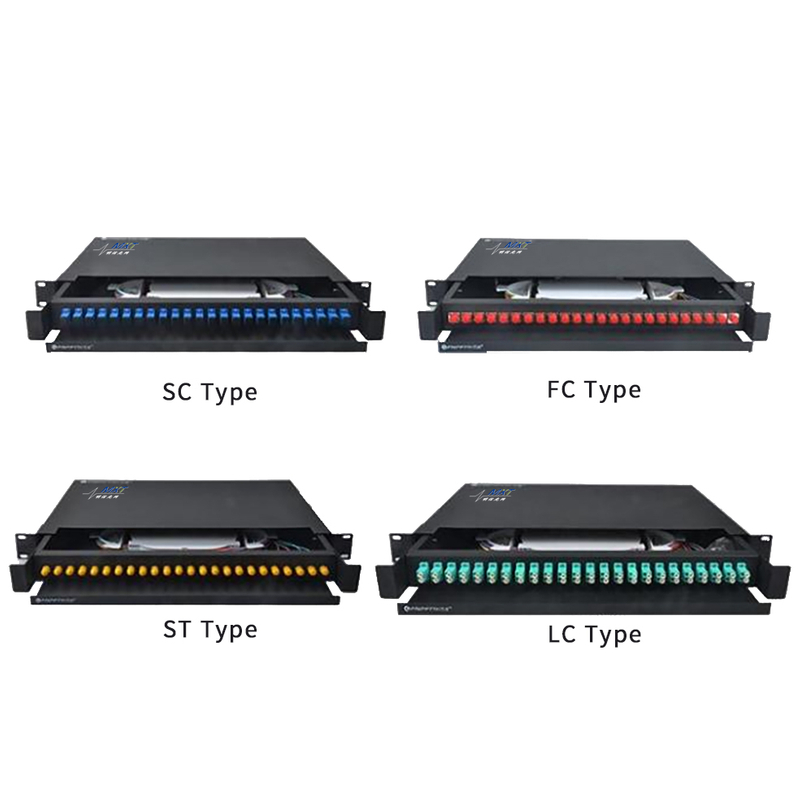

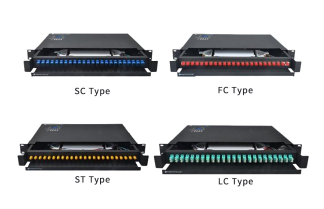

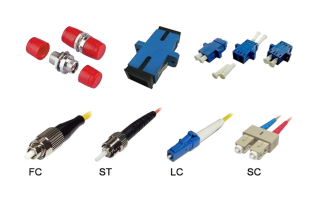

Connector Type:

LC/FC/SC,simplex, Duplex Etc

Available Adapter:




24 port Fiber Optic Patch Panel 1U 19 inch SC / LC Connector Drawer With Guild Rail

Fiber Optic FTTH Box:The terminal box realize the connection between the fiber optical cable and the pigtail, and protect the fiber optic spice. It suits for all the fiber optic cable with its diamater within Φ16 to 22 mm. It apply for indoor. Outdoor, CATV system, etc


● 19" standard size , easy install
● Light weight, strong strength, good anti-shocking and dustproof
● Well cable management, cable can be distinguished easily
● Roomy space ensure fiber bent ratio
● Adapter fence can be installed or uninstalled
● Drawer with guild rail


● Telecommunication
● Network
● Broadband

Product Show


Fiber Optic Patch Panel Specification:


 Port Nos.: 24

 N.G: 3.5Kg

 Working Temperture: -45--+80 deg


(1) Can I get some samples of this optical fiber receiver?
Yes, Sample order is available for quality check and market test .And you just to pay the cost and freight.

(2)What’s delivery time of ftth node?
It usually takes about 3-7 working days .

(3)What’s your payment terms ?
We usually accept all these kinds of payment terms .Such as T/T,L/C, Western Union.Cash Etc.

(4)What’s your warranty terms ?
We offer 12 months warranty time .

(5)Could you give us help on the CATV solution?
OK, it is our pleasure to help you.

(6)What is your MOQ?

One is OK.
