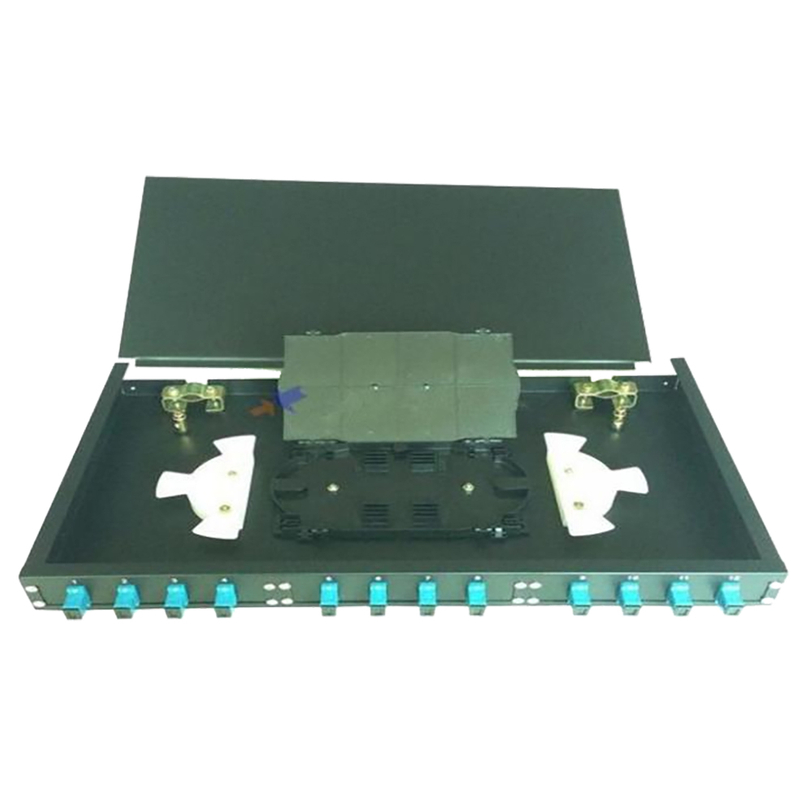

12 Port Fixed Type Fiber Optic Joint Box Loaded with 12pcs of SC Adaptor And Splice Tray

  • MXT

Detailed Product Description

Material:

Cold-rolling Steel

Type:

Rack-mount Fixed Type

Environmental Temperature:

-25 - 55°C

Atmosphere Pressure:

70~106Kpa

Relative Humidity:

<85%(when The Temperature Is Below 30°C)

Port Numbers:

12 Cores


12 Port Fixed Type Fiber Optic Joint Box loaded with 12pcs of SC adaptor and splice tray

● Suitable for the protective connection between cables and pigtails
● Suitable for the connection between optical cables and optical communication device
● Unique structure, easy installation, for indoor use

● Rack Mount, Wall Mount. Suitable for FC adapter,ST adapter,SC adapter, LC adapter etc.
● Capacity: 12,24,32,48,64,72,96 splices
● Adapters installed: FC adapter ,ST adapter,SC adapter, LC adapter etc
● Suitable for ribbon and bunchy fiber cable


Features

● Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for

operation.
● The box are Rack Mounted, which is convenient to install and dismantle;
● The splice tray could be piled one upon another, flexible to turn;
● The curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray;
● The box is of unique structure, reasonable layout, and has adequate room for operation;
● Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of

cables  flexibly to make sure the cables are clamp tightly;
● The indoor type is of excellent seal performance, which could prevent water from entering effectively.

3

Parameter

Environmental temperature:

-25 - 55°C

Relative humidity:

<85%(when the temperature is below 30°C)

Atmosphere pressure:

70~106Kpa

Insulating resistance:

>2×104 MΩ/500VDC

Voltage-resistance strength:

Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
