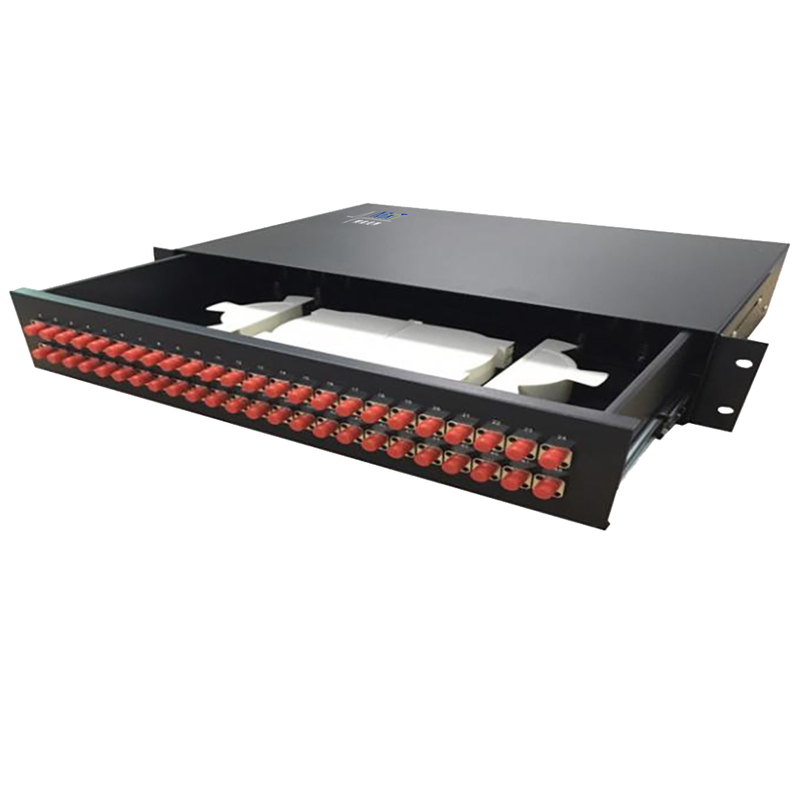

19" ODF Fiber Optic Joint Box, Sliding Fiber Optic Patch Panel 48 Port with FC Adapter

  • MXT

Detailed Product Description


Cold-rolling Steel


Sliding Type

Environmental Temperature:

-25 - 55°C

Atmosphere Pressure:


Relative Humidity:

<85%(when The Temperature Is Below 30°C)

Port Numbers:

48 Cores

19" ODF Fiber Optic Joint Box , sliding fiber optic patch panel 48 port with FC adapter
● Suitable for the protective connection between cables and pigtails
● Suitable for the connection between optical cables and optical communication device

● Unique structure, easy installation, for indoor use


Cover, inner components, fiber connecting protector Inner components
a. Cover: the cover should be easily opened for easy installation; it should be provided with an outlet device for fiber metal high voltage protective earthing;
b. Inner components as follows:

Bracket: supporting the inner structure.

Fiber Optic Splice Tray: storing fiber connectors (together with the protective components) and the spare fibers, with the length being about no less than 1.6m; the curve radius of the coiled spare fiber should be no less than 37.5mm; makes that are easily recognizable should be provided for reconnection of fibers; should have adequate room for convenient operation;

Fixing Device: used for the fixation of fiber protective tubes and the fixation of pigtails.


● Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for

● The box are Rack Mounted, which is convenient to install and dismantle;
● The splice tray could be piled one upon another, flexible to turn;
● The curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray;
● The box is of unique structure, reasonable layout, and has adequate room for operation;
● Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of

cables flexibly to make sure the cables are clamp tightly;
● The indoor type is of excellent seal performance, which could prevent water from entering effectively.



Environmental temperature:

-25 - 55°C

Relative humidity:

<85%(when the temperature is below 30°C)

Atmosphere pressure:


Insulating resistance:

>2×104 MΩ/500VDC

Voltage-resistance strength:

Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
