Detailed Product Description
Material: | Cold-rolling Steel | Type: | Sliding Type |
Environmental Temperature: | -25 - 55°C | Atmosphere Pressure: | 70~106Kpa |
Relative Humidity: | <85%(when The Temperature Is Below 30°C) | Port Numbers: | 48 Cores |

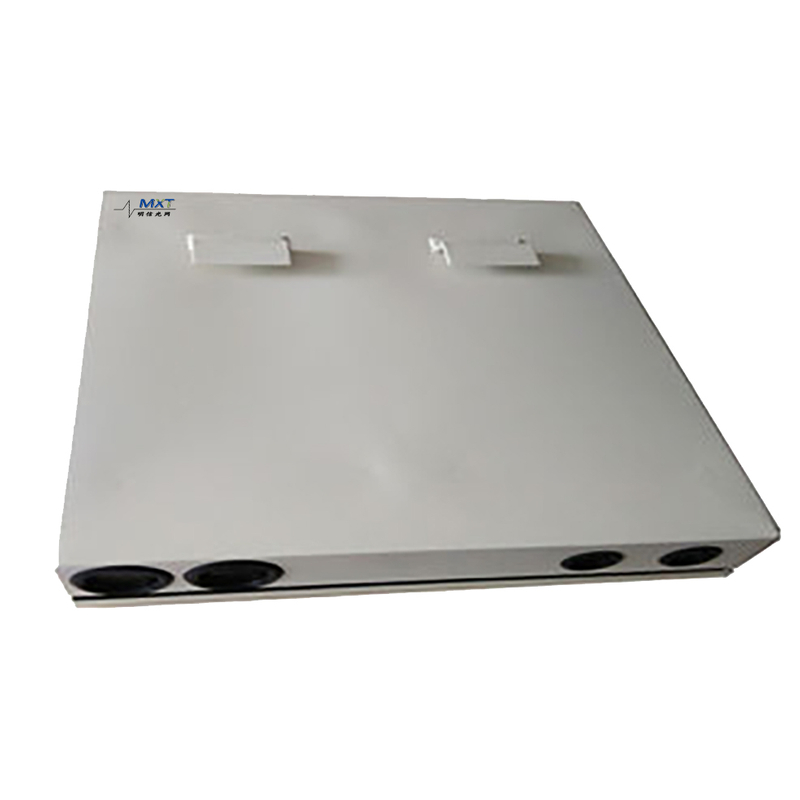

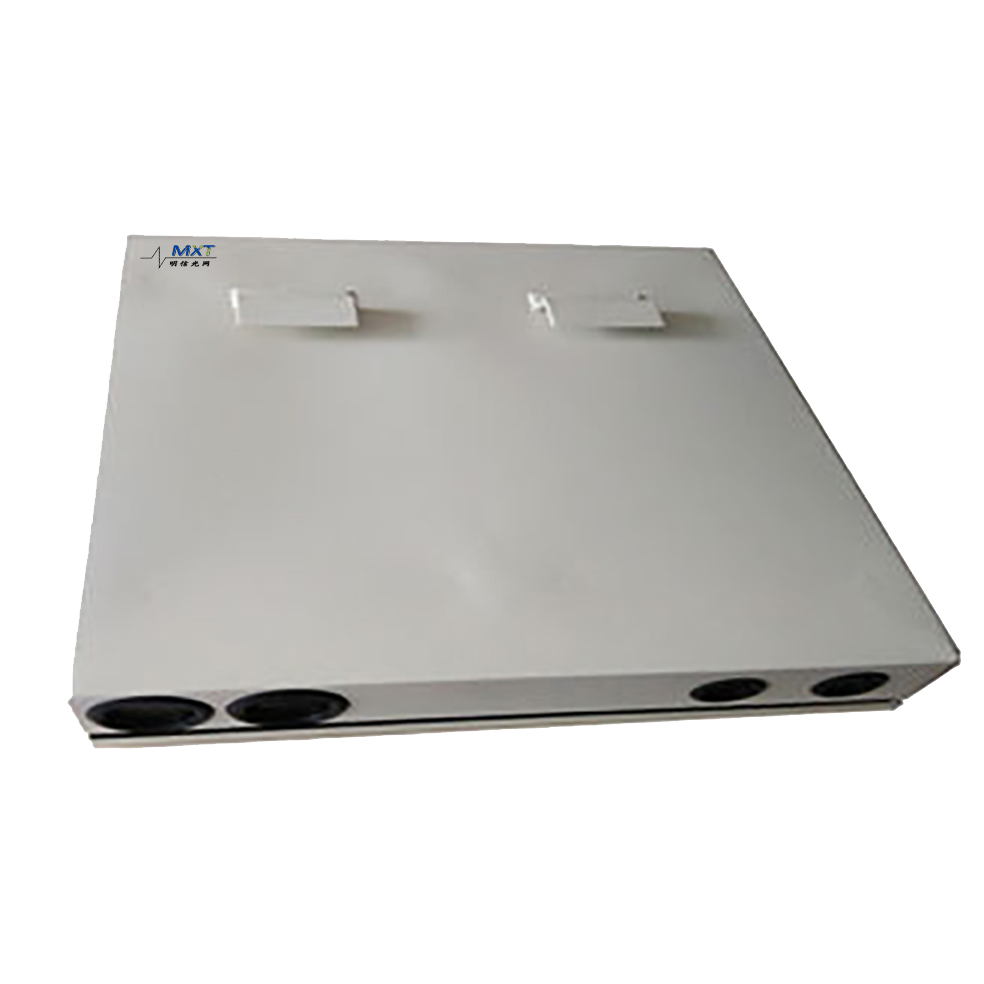

Sliding Type Indoor 24 Port Fiber Optic Patch Panel Wall Mount With Sc Adapter
Indoor Wall-mount Fiber Optic Distribution Frame can manage both single fiber and ribbon & bundle fiber cables for indoor using . There are FC, LC, SC, ST output interfaces optical ,and large working space to intergrate the pigtails , cables and adapters.
Application
Telecommunications subscriber loop; Fiber to the home (FTTH); LAN/WAN; CATV
Characteristics
With cold-roll steel box , splicing unit, distribution unit and panel ; Various panel plate to fit different adapter interface ; Adapters can be installed : FC,SC ,ST , LC ; Suitable for single fiber and ribbon & bundle fiber cables ; Special design ensures the excess fiber cords and pigtails in good order ; No interval and easy for management and operation.
Features
● Used to the branch connection of optical cable termination
● Available for the installation of adaptors
● Drawer Structure, Easy for Operation.
Parameter
Environmental temperature: | -25 - 55°C |
Relative humidity: | <85%(when the temperature is below 30°C) |
Atmosphere pressure: | 70~106Kpa |
Insulating resistance: | >2×104 MΩ/500VDC |
Voltage-resistance strength: | Under the effect of 15kv/DC/1min, non-puncture, and no arc-over. |
Model | Fiber Quantity | Dimension (cm) | Weight (kg) |
ODF-WT-IW 48 | 48 | 40x38x14 | 5.8 |
ODF-WT-IW 12/24 | 24 | 40.5x38.2x8.5 | 4.2 |
ODF-WT-IW 12B | 12 | 30x30x8.5 | 3 |
