MXT
Detailed Product Description
Dimension: | 450*277*89mm | Capacity: | 48 Core Patch Panel |
Return Loss: | >50 DB | Body: | Metal Cold Rolled Steel |
Optical Connector: | SC FC LC ST Patch Panel | Weight: | 3.5kg |
Sliding Type 2U Fiber Optic Patch Panel Durable SC Optical Fiber Distribution Frame
Rack Mounted Fiber Optic Patch Panel, Fiber Distribution Box, Fiber ODF, 12 Ports,24 ports,36 ports,48 ports,72 ports can be with Fiber Optical Adapter& Pigtail, Fiber patch panel box.
Features
● Compliance with the Standard of YD/T925-1997
● Excellent Armor Plate,Good-looking Figure
● Design for large splicing tray
● One to four entry are available
● Metal assemblies of optic cable terminating box and optic cable metal strength chip
● Complete accessories
● Reasonable designing
● Large capacity,Core can reach 12-144cores
● Reliability
● Good protection of pigtails
Application
● Telecommunication
● CATV
● LAN & WAN
● Network
● Broadband

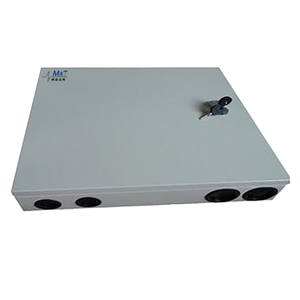

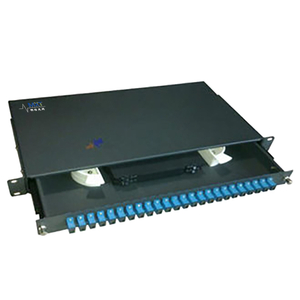

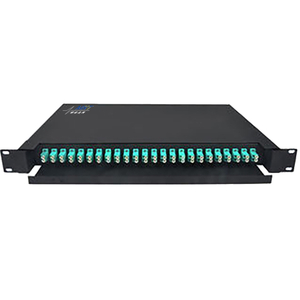

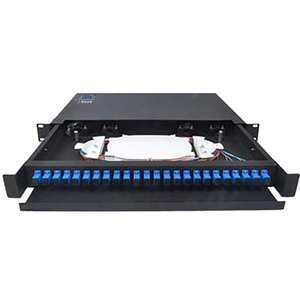

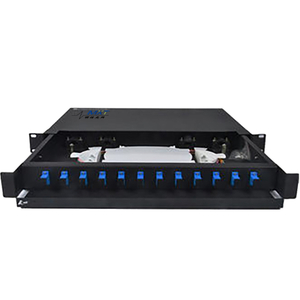

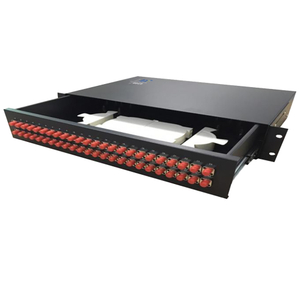

Product Show
Preparation before installation
A. Check the structure and type of fiber cables before installation; different fiber cables could not be spliced together;
B. Seal well the connective components to reduce additional loss to fibers caused by dampness; don't apply any pressure on the connective components;
C. Keep a dry and dustless working environment; don't apply any external force to the cables; don't bend or entwine cables;
D. Appropriate tools should be used for splice of cables according to the local standards during the whole installation process.
The installation procedure of the box
A. Open the front cover of the box or the top (if necessary), take down the fiber splice tray; let in the fibers
from the fiber entry and fix them on the box; the devices for fixation are as follows: the adjustable collet,stainless fiber cable ring & nylon tie;
B. The fixation of steel core (if necessary): thread the steel core through the fixed device (optional) and screw down the bolt;
C. Leave about 500mm-800mm long spare fibers from the peeled point of fiber cable to the entrance of the splice tray, cover it with plastic protective tube, fix it with plastic tie at the T type holes; splice fibers as usual;
D. Store the spare fibers and pigtails, plug the adapters in the slots on the tray; or first plug in the adapters and then store the spare fibers, please pay attention to the direction of coiling fibers
E. Cover the splice tray, push in the splice tray or fix it with the slot at the edge of the box;
F. Install the box inside 19" standard mounting equipment.
G. Connect the patch cord as usual.
Fiber Optic Patch Panel Specification
● Environment temperature:-25ºC~+45ºC
● Relative humidity:≤85%(30ºC)
● Atmosphere pressure:70~106KPa
● Insulated Resistance:≥2×10MΩ/500V(DC)
● Intensity≤15KV(DC)/1minno spark-over and no flying arc
● Fiber bending radium guaranteed more than 40mm:≥40mm
● Application: It is applicable for straight-through connection and diverged connection in aerial layout , duct and direct buried. It can protect fiber connectors.
Environmental Data |
|
Working temperature | -40℃ +70℃ |
Working humidity | <95%(30℃) |
Working atmospheric pressure | 70-106Kpa |
Electricity Data |
|
Under the general air presure, 500VDC, insulation resistance>1000MΩ |
|
The high voltage protection can understake 3000VDC, no spark-through and flashover within 1 minutes. |
|
Optical performance data |
|
Connectors loss( including insertion, changeability and durability | <=0.3dB |
Additional loss in changeability | <=0.2dB |
Additional loss in durability | <=0.1dB |
Return loss | FC/PC>=40dB, FC/UPC>=50dB,FC/APC>=60dB |
Plug-draw life | 1000times |
Operating | 820±40/980±40/ | 980&1550±40/ | Parameter | Unit | Value | ||
Coupling | Insertion Loss (dB) | Fiber Type | / | Hi 780/ Flex 1060/ | |||
Tap | Signal | Tap | Signal | ||||
01/99 | 19.0-21.0 | ≤0.20 | 18.5-21.5 | ≤0.25 | PDL | dB | Typ.:<0.1 Max.:<0.15 |
03/97 | 14.6-16.2 | ≤0.30 | 14.5-16.5 | ≤0.30 | Directivity | dB | >55 |
05/95 | 12.4-13.8 | ≤0.35 | 12.0-14.5 | ≤0.45 | Return Loss | dB | >50 |
10/90 | 9.70---10.7 | ≤0.60 | 9.70-11.2 | ≤0.60 | Excess Loss | dB | Typ.:<0.1 Max.:<0.2 |
20/80 | 6.70---7.60 | ≤1.15 | 6.60---7.80 | ≤1.15 | Pigtail Dia. | mm | 0.25 /0.9 / 2 / 3 |
33/67 | 4.65---5.65 | ≤1.70 | 4.50---5.85 | ≤1.80 | Pigtail Length | cm | >100 |
40/60 | 3.95---4.30 | ≤2.50 | 3.70---4.70 | ≤2.70 | Operating Tem. | ºC | -10~ +70 |
50/50 | 2.85---3.30 | 2.80---3.40 | Storage Tem. | ºC | -40~ +85 | ||
DOWNLOAD PDF
Sliding Type 2U Fiber Optic Patch Panel Durable SC Optical Fiber Distribution Frame.pdf
