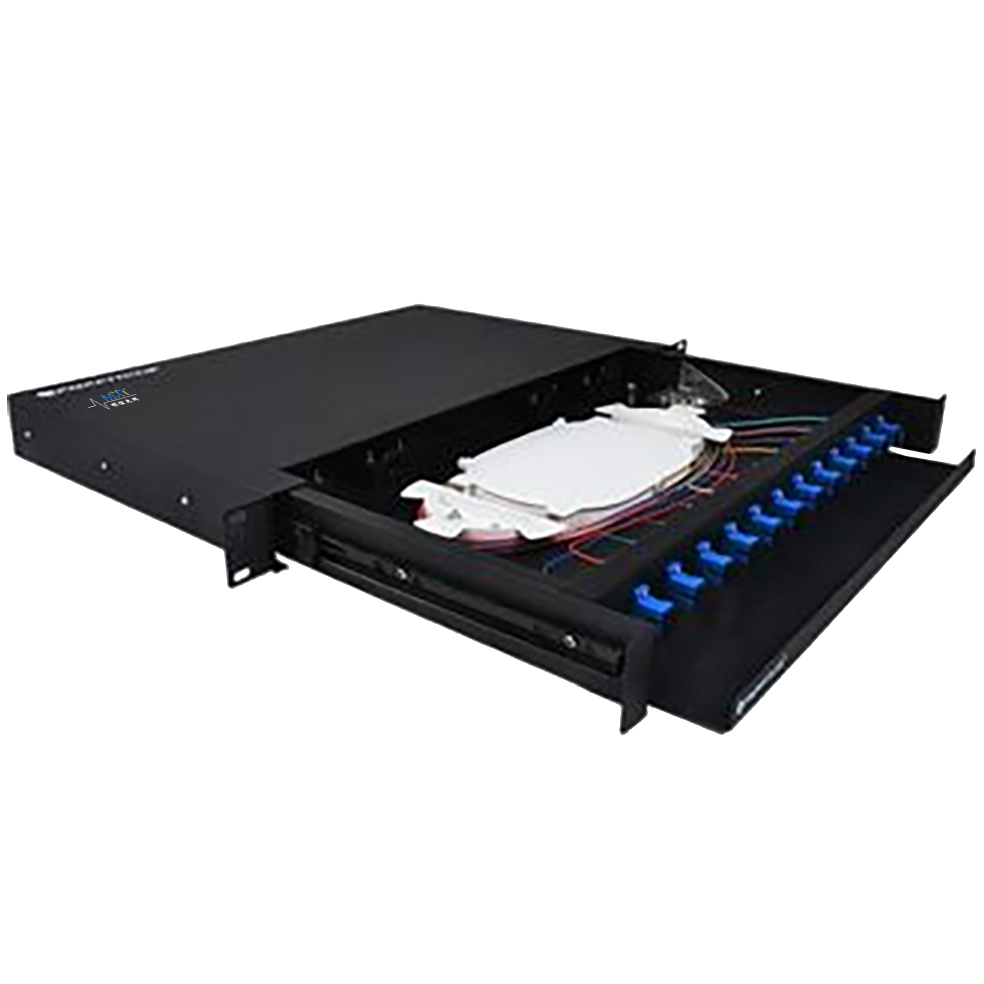

1U Fiber Optic Patch Panel Rack Mount 12 Core Blank ODF With SC Connector

  • MXT

Detailed Product Description



ODF Type:

Rack Mounted &Drawer With Guild Rail


Galvanized Steel Sheet Or
Cold Rolled Steel Sheet Or
Aluminium Sheet

Connector Type:






1U Fiber Optic Patch Panel Rack Mount 12 Core Blank ODF With SC Connector

Rack Mount ST 12 port, 1U Fiber Optic Terminal box/Fiber Optic Patch Panel

● Box body is made of high quality cold-rolled steel material, and the surface of the inferior smooth

electrostatic praying processing technology

● Unique 1 ~ 2 into cable mouth and 1~48 core out fine mouth design

● Box stack turn the page type structure fusion fiber disc and independent insulated grounding device


● 19" standard size , easy install
● Light weight, strong strength, good anti-shocking and dustproof
● Well cable management, cable can be distinguished easily
● Roomy space ensure fiber bent ratio
● Adapter fence can be installed or uninstalled
● Drawer with guild rail


● Telecommunication
● Network
● Broadband

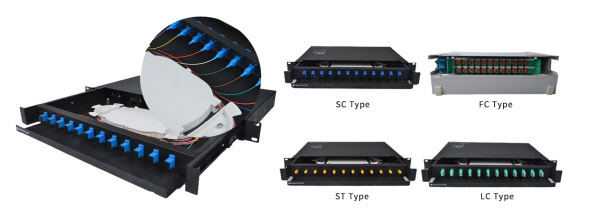

Product Show


Main Technique Indexes

Fiber radius of curvature:≥30mm

Disk remain fiber length:≥1.6m

Fiber maximum capacity:48core

Suitable temperature range:-40~+60 degree

Resistance to pressure :500N

Resistance to impact :750N



 Port Nos.: 24

 N.G: 3.5Kg

 Working Temperture: -45--+80 deg


(1) What is your Payment term?

---TT, LC, Western Union could be accepted.

(2) What is your Trade term?

---EXW, FOB, CNF, CIF is also ok.

(3)What is the Loading Port?

--- Shenzhen,Shanghai. Hongkong

(4)What is your MOQ?

---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.

(5)What is your Product Warranty?

---As Europe market, we have CE RoHS and other international safety standard for our products.

---As other market,international safety standard certificate also could be provided.
