Distribution Box GFS23-2/16B

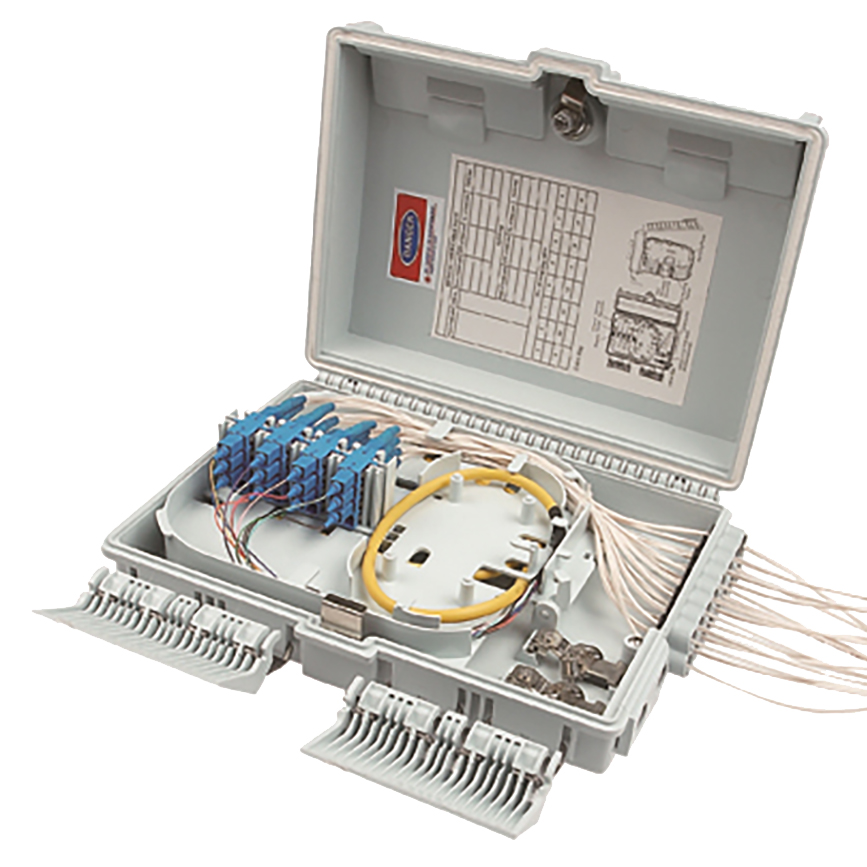

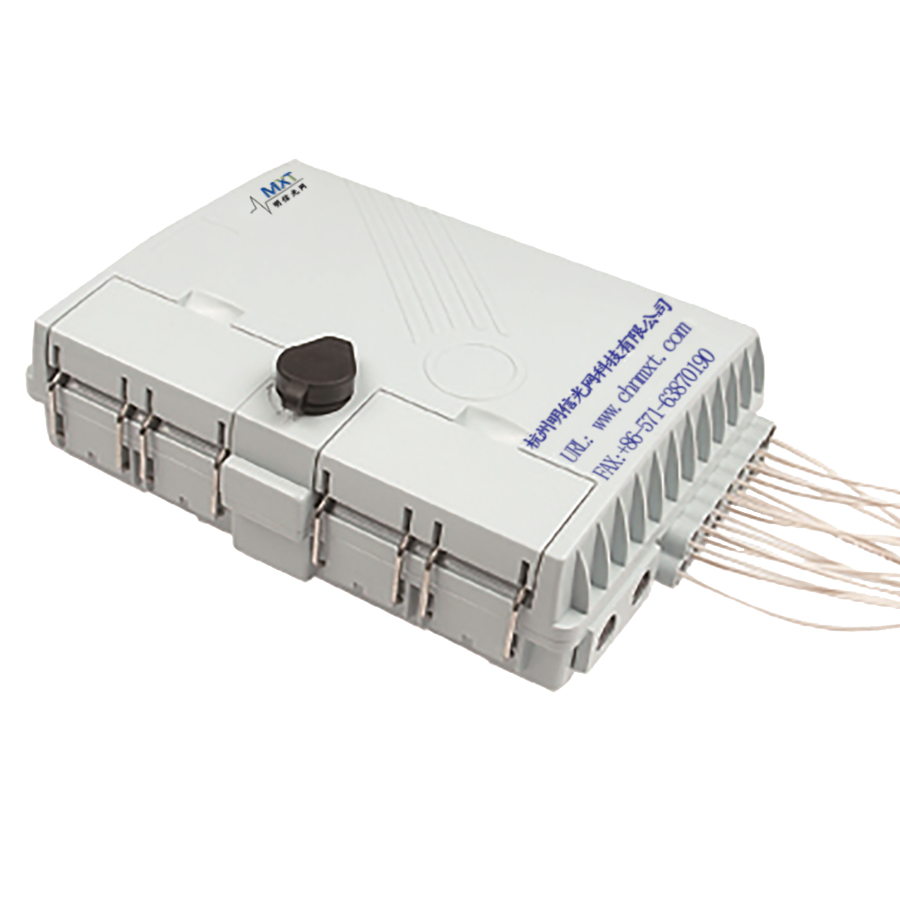

Outdoor fiber optic distribution box is available for the distribution and terminal connection for various kinds of optical fiber system, especial suitable for mini-network terminal distribution, in which the optical cables,patch cords or pigtails are connected, PC plastic terminal box, 2 input cable ports 16 output cable ports, PLC splitter can be loaded inside, suitable for indoor and outdoor wall-mounted and pole mounted using.
Availability:
Distribution Box GFS23-2/16B
Distribution Box GFS23-2/16B
  • Distribution box GFS23-2/16B

  • MXT

Distribution Box

Model and Specification

Model

GFS23-2/16B

Size(MM)
W*H*D

310*235*100

Capacity

SC/FC

PLC

LC

16

16

32

IP Grade

65

Mounting way:
Wall or Pole mount

Both could be choosed


Outdoor fiber optic distribution box is available for the distribution and terminal connection for various kinds of optical fiber system, especial suitable for mini-network terminal distribution, in which the optical cables,patch cords or pigtails are connected, PC plastic terminal box, 2 input cable ports 16 output cable ports, PLC splitter can be loaded inside, suitable for indoor and outdoor wall-mounted and pole mounted using.


Feature
● Industry Standard User Interface, be made of high impact plastic.
● Can accommodate 1x8 & 1X16 PLC splitter.
● Anti-UV, Ultra violet resistant and rainfall resistant.
● Up to 24 FTTH drops.
● Wall and pole mountable.
● 2 inlet ports, 24 outlet ports
