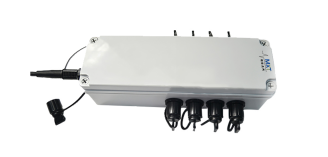

Waterproof Patch Cord with Multi Port (SC) Mini SC FTTH Terminal Junction Box

  • MXT


The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



● Total enclosed structure.
● Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
● Clamping for feeder cable and drop cable, fiber splicing, fixation, storage,distribution...etc all in one.
● Cable, pigtails, and patch cords are running through their own paths without disturbing each other,

micro type PLC splitter installation, easy maintenance.
● Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for

maintenance and installation.
● Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and

outdoor use.


Competitive Advantage
MXT strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; And good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.



Our products range from the basic components to end products, including passive and active categories.
