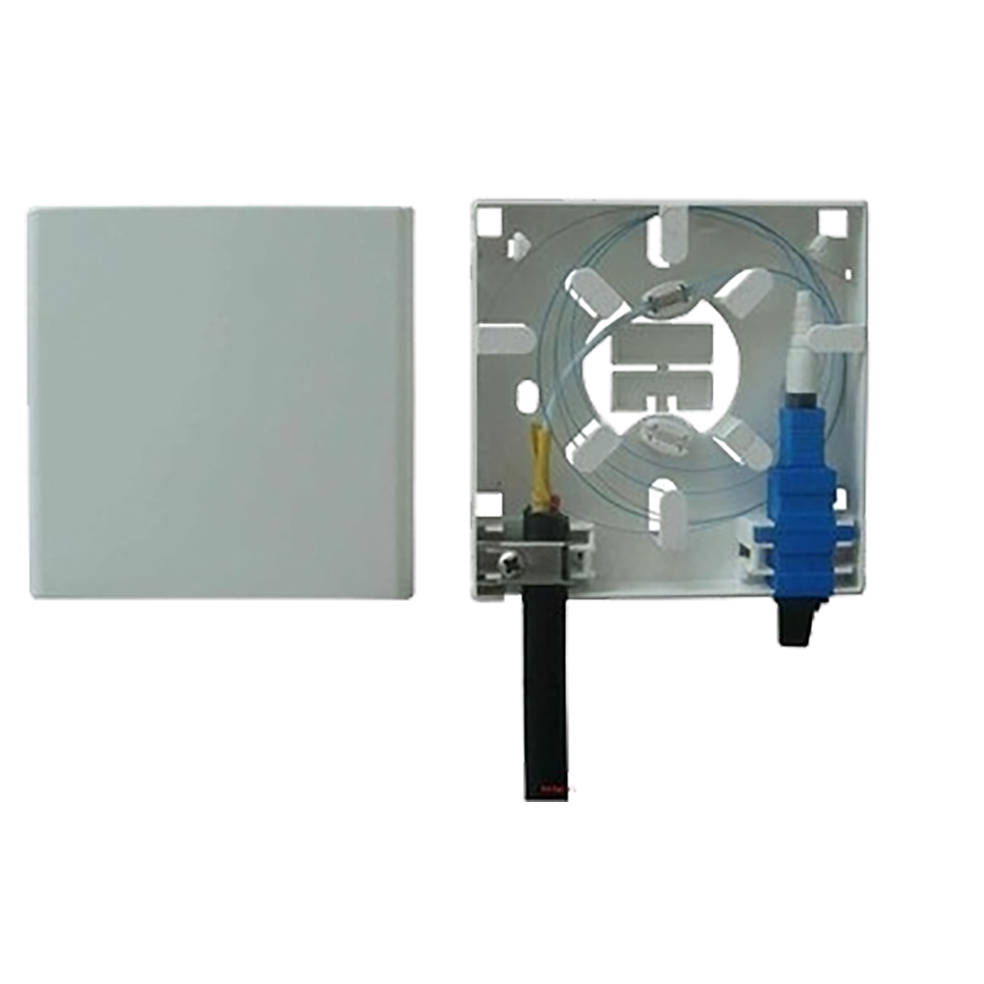

FTTH Terminal Box (FTTH-006)

  • FTTH-006
  • MXT

Applications

● Fiber to the home(FTTH)

● Fiber to the building(FTTB)

● Local area netwoks

● Wide area networks



Features

● Small size and light weight for easy installation compact body

● Wall mounted with mechanical protection function

● Available for FC,SC,ST,LC adatpers

● Fiber can get in from bottom or side

● Anti-UV, Ultra violet resistant and rainfall resistant


Specifications

Item

FTTH-1

FTTH-2

FTTH-3

FTTH-4

FTTH-5

FTTH-6

Size(HxWxD)mm

180x168x30

300x100x45

150x110x30

200x215x24

260 x320 x90

86x86x10

Cable diameter(mm)

Ф5~Ф10

Cable ports

2

4

2

Adapter ports

8

1

4

8

16

2

Max capacity of splice

16

12

4

16

2

Suitable Adapter

SC,LC,E2000

SC,FC,LC,E2000

Materials

ABS,PC or ABS+PC

Environmental

Temperature(℃)

-25~40


Competitive Advantage

MXT strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
