GFS23-2/16A
MXT
Distribution Box | |||
Model and Specification | |||
Model | GFS23-2/16A | ||
Size(MM) | 300*270*95 | ||
Capacity | SC/FC | PLC | LC |
16 | 16 | 32 | |
IP Grade | 65 | ||
Mounting way: | Both could be choosed | ||

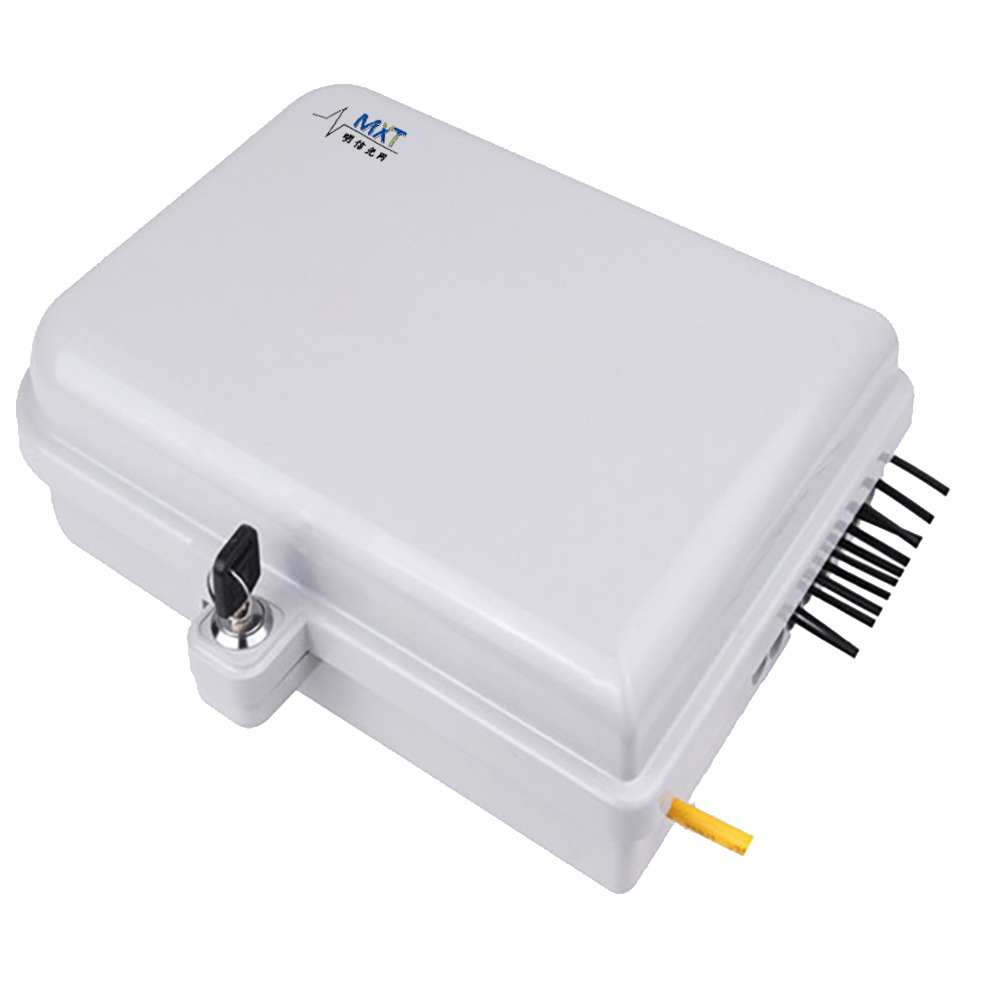

Outdoor fiber optic distribution box is available for the distribution and terminal connection for various kinds of optical fiber system, especial suitable for mini-network terminal distribution, in which the optical cables,patch cords or pigtails are connected, PC plastic terminal box, 2 input cable ports 16 output cable ports, PLC splitter can be loaded inside, suitable for indoor and outdoor wall-mounted and pole mounted using.
Feature
● Industry Standard User Interface, be made of high impact plastic.
● Can accommodate 1x8 & 1X16 PLC splitter.
● Anti-UV, Ultra violet resistant and rainfall resistant.
● Up to 16FTTH drops.
● Wall and pole mountable.
● 2 inlet ports, 16outlet ports
