Distribution Box |
Model and Specification |
Model | GFS23-04 |
Size(MM)
W*H*D | 200*140*40 |
Capacity | PLC | SC/FC | LC |
4 | 4 | 8 |
IP Grade | 65 |
Mounting way:
Wall or Pole mount | Both could be choosed |

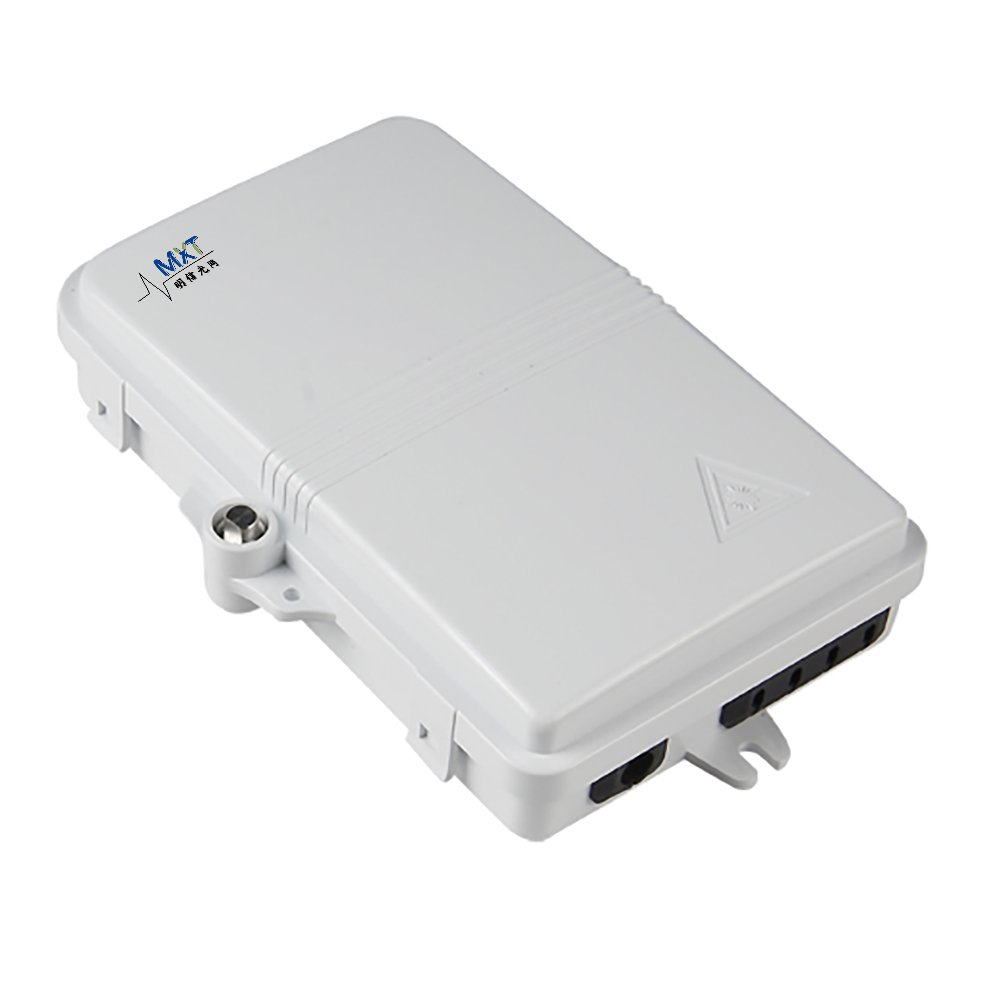

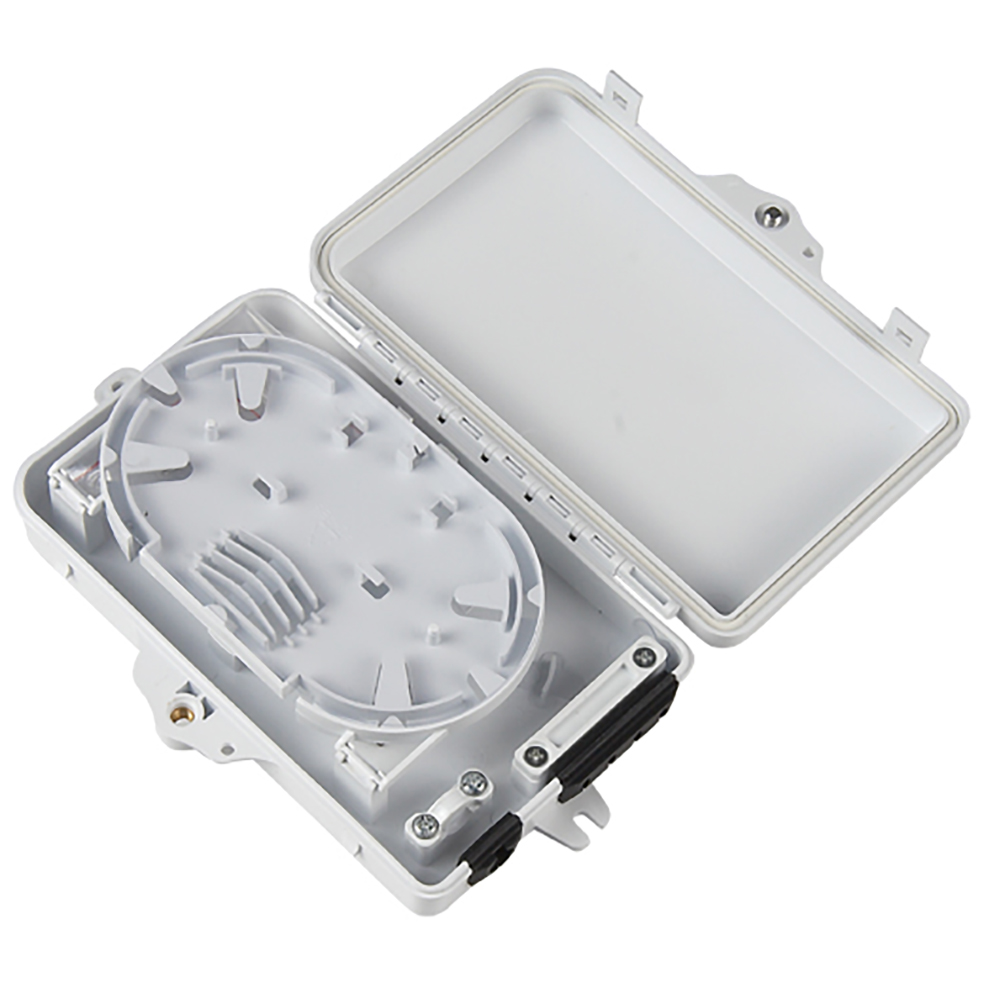

Outdoor fiber optic distribution box is available for the distribution and terminal connection for various kinds of optical fiber system, especial suitable for mini-network terminal distribution, in which the optical cables,patch cords or pigtails are connected, PC plastic terminal box, 2 input cable ports 4 output cable ports, PLC splitter can be loaded inside, suitable for indoor and outdoor wall-mounted and pole mounted using.
Feature
● Industry Standard User Interface, be made of high impact plastic.
● Can accommodate 1x4 & 1X8 PLC splitter.
● Anti-UV, Ultra violet resistant and rainfall resistant.
● Up to 8 (LC duplex)FTTH drops.
● Wall and pole mountable.
● 2 inlet ports, 4 outlet ports
