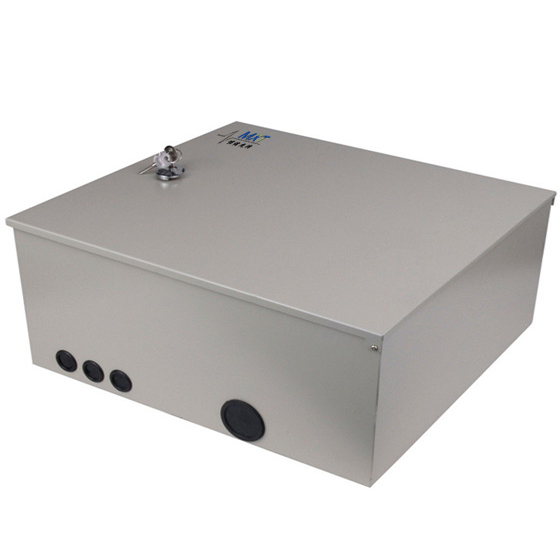

Distribution Box |
Model and Specification |
Model | GFS13-72/96 |
Material | COLE ROLL STEEL PLATE |
Size(MM) W*H*D | 460*425*208 |
Capacity | PLC | SC/FC | LC |
64 | 96 | 192 |
Mounting way: Wall or Pole mount | Wall mount |
Fiber Optic Distribution box is used for connecting optical cable with various equipments in FTTX optical access network node. In FTTH application, it is applied to the second stage splitter point of optical fiber network. Optical cable can be connected by fusion or mechanical jointing method after introduction into the box. It is possible to realize cable termination, splitting and distribution function conveniently.
Features
● Optical fiber distribution and splitting box is composed by cabinet body, splicing tray, splitting module and accessories.
● The body is made of cold-rolled steel, electrostatic spraying surface with small size, light weight and
good-looking appearance

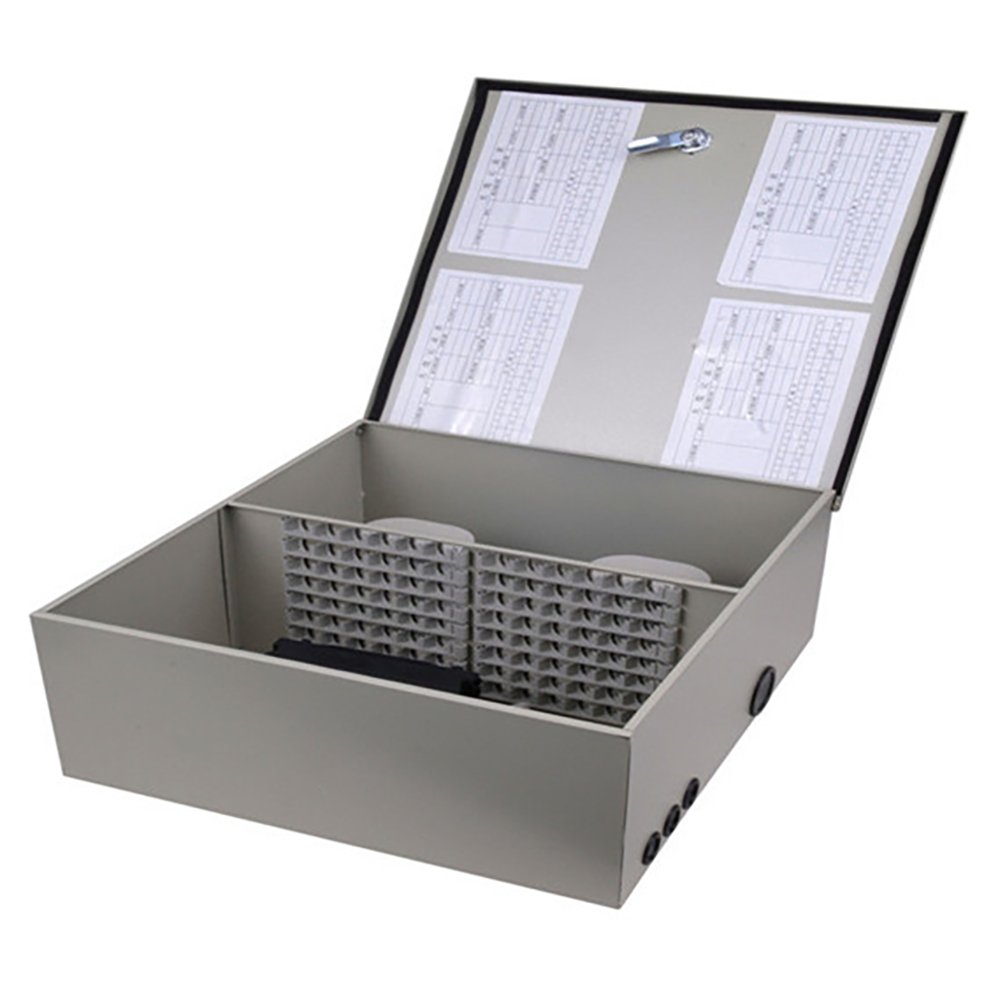

● The box has two layers. The outer layer is composed with mounting unit for splitter and cable
management parts. The inner layer is equipped by splicing tray and cable storage unit for pass-though riser cable.
● Modularized structure without jumping fiber, It may expanse capacity flexibly by increasing splitter
installed module.
● The module with different ports capacity is universal used and interchangeable. In addition, it is
equipped splicing tray, used for riser cable termination and cable branch connection
● Operating condition: temperature -40°C~+60°C;Relative humidity ≤95%(+40°C)
