MXT

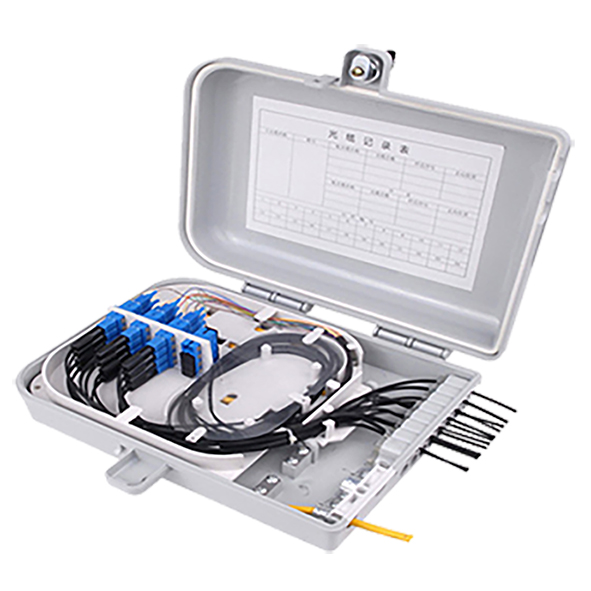

Fiber optic distribution box is use for the joint of backbone optic cable and branching fiber cables, realize reserve and direct transmission of backbone optic cable and branching fiber cables at node and distribution and dispatching of fibers. The max capacity is 96 cores, and it can be used for both single core and ribbon optic fiber cable, adapt to all kinds of urban construction planning needs.
Environmental temperature:-40℃~+60℃
Relative humidity:≤95%(+40℃)
Insulation resistance between box and earth device:>2×104MΩ/500VDC
Voltage resistance strength between box and earth device:non-puncture, no arc-over under 3KVDC/1min.
Work environmental temperature | -40℃~60℃ |
Work environmental atmosphere pressure | 70kpa~106kpa |
Body material | Stainless steel |
Grade of Protection | IP55(body),IP68(cable inlet) |
Connector intrusive loss | ≤0.18dB |
Plug durability lifetime | >1000times |
Echo Loss (FC/PC) | ≥40dB |
Echo Loss (FC/APC) | ≥50dB |
Echo Loss (FC/UPC) | ≥60dB |
Unti-vibration performance Vibration range:≥0.6mm Vibration frequency:≥80 acceleration:≥15m/s2 (X,Y,Z three directions) | Time:≥3h No mechanical damage, reliable contact , stable performance.
|
Competitive Advantage
MXT strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
