LC- LC Simplex Single mode Fiber Optic Patch Cord 0.3meter

Availability:
LC- LC Simplex Single mode Fiber Optic Patch Cord 0.3meter
  • MXT

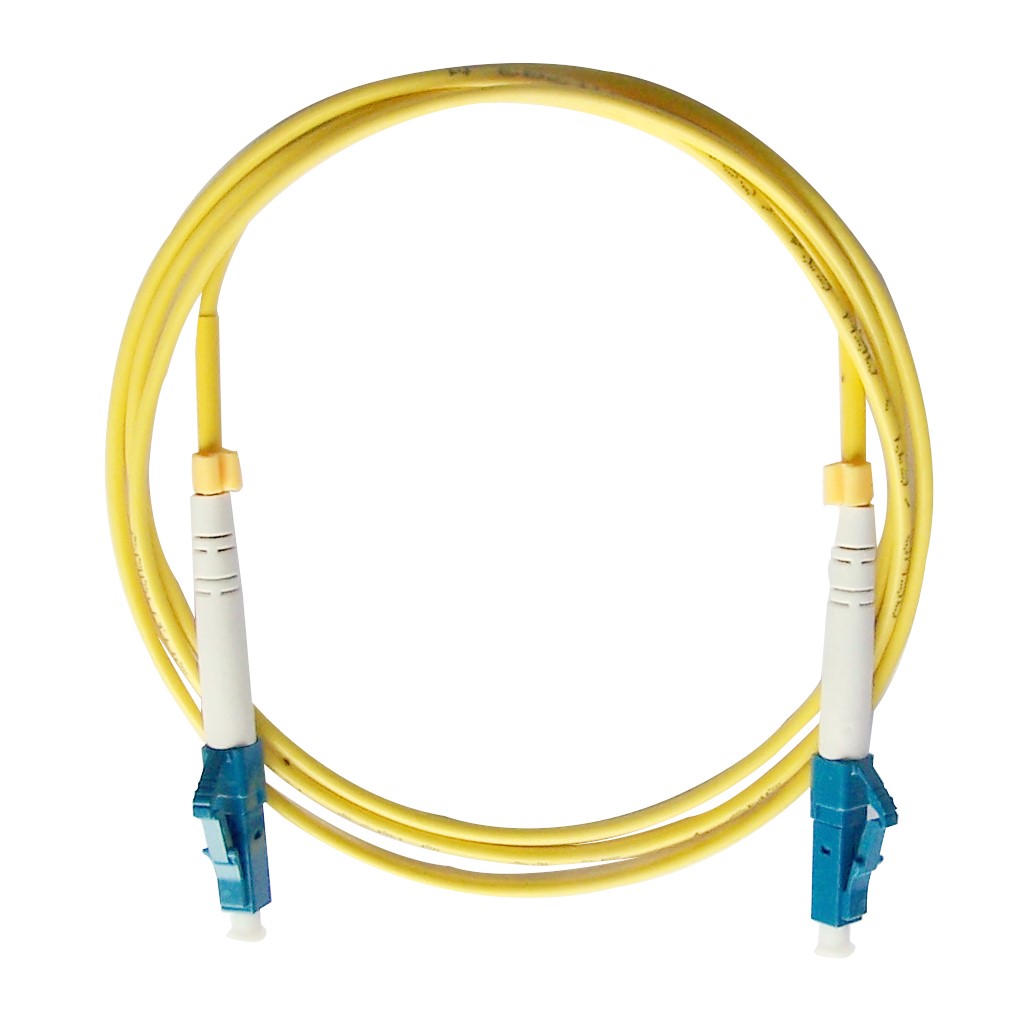

LC-LC单模光纤跳线 替换图片

Specifications

● High Return Loss & Low Insertion Loss
● High reliability and stability
● Green Production, CE, RoHS Standard


Parameter

Mode

Single mode

Multimode

Polish

UPC

APC

PC

Insertion Loss

≤0.2dB

≤0.3dB

≤0.2dB

Return Loss

≥55dB

≥65dB

≥35dB

Interchangeability

≤0.2dB

Salt Spray

≤0.1dB

Repeatability

≤0.1dB (1000 times)

Vibration

≤0.2dB (550Hz  1.5mm)

Temperature

≤0.2dB (-40+85 sustain 100 hours)

Humidity

≤0.2dB  (+25+65 93 R.H.100 hours)

Apex Offset

0μm ~ 50μm

Radius of Curvature

7mm ~ 25mm

Standards-Compliant

ROHS,IEC and GR-326


Fiber cable performance specifications

Fiber type

Min.Bandwidth

Distance

attenuation

62.5/125

850/1300nm

200/500 MHz/Km

@100Mbps 2km @1Gig 220m

850/1300nm

3.0/1.0dB/km

50/125

850/1300nm

500/500 MHz/Km

@100Mbps 2km @1Gig 500m

850/1300nm

3.0/1.0dB/km

50/125

10Gig Optimized

850/1300nm

2000/500 MHz/Km

@100Gig Varies by VCSEL typical 300m 2850nm

850/1300nm

3.0/1.0dB/km

9/125

1310/1550nm

Approx 100 Terahertz

Up to 100km Varies by transceiver

1310/1550nm

0.4/0.3dB/km


Fiber type

Single mode:1,9/125-G652D
           2,9/125-G655
           3,9/125-G657

Multimode:4,50/125-OM2
          5,62.5/125-OM1
          6,50/125-OM3

Fiber

Corning,China Fiber,other

Connector1

SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others

Polishing

PC,UPC,APC,MTRJ Male connector,MTRJ female connector

Connector2

SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others

Polishing

PC,UPC,APC,MTRJ Male connector,MTRJ female connector

Cord type

Simplex ,Duplex

Cable diameter

0.9mm ,2.0mm,1.8mm 3.0mm

Cable jacket

PVC,LSZH,OFNR,OFNP

length(M)

0.5m,1m,3M,5m,10m,20m,200m


Application

● Optical fiber communications system

● Optical fiber access networks

● Optical fiber CATV

● Optical fiber test equipments

● Optical fiber data communication


Competitive Advantage

MXT strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
