Quick Details
Brand Name: MXT/OEM
Model Number: ST SM
Fiber type: Armoured
Inserion Loss: <0.3db
Return Loss: >45db
Color: Blue

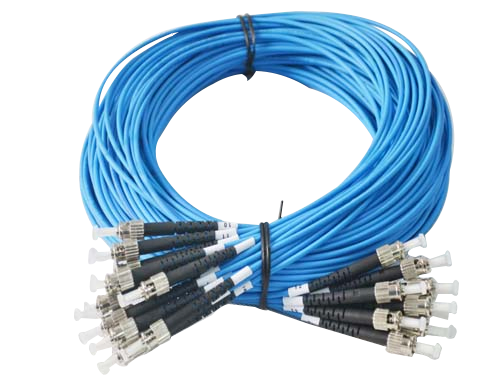

Fibre Optic Armoured Patch Cord ST-ST Singlemode simplex LSZH
Features
● Price-Competitive
● Low Insertion Loss & PDL
● Factory-terminated and Tested
● Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber
● Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
● Polishing Options: PC/UPC/APC
Feature Connector with Ceramic Ferrules
Applications
● Access Network
● Telecom/CATV Systems
● FTTx
Specifications
Parameters | Standard Fiber Cable Assemblies |
Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3) |
Jacket Materials | LSZH/OFNR/PVC |
Connector Type | SC/LC/ST/LC/MU/MTRJ/MPO/E2000 |
Ferrule Materials | Ceramic |
Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
Insertion Losss(dB)
TIA/EIA-455-107 | ≤ 0.3dB
(PC/UPC/APC) | ≤ 0.3dB
(PC/UPC) |
Return Loss(dB)
TIA/EIA-455-107 | ≥45dB(PC/UPC)
≥55dB(APC) | ≥35dB(PC/UPC) |
Exchangeability | ≤ 0.2dB |
Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord |
Operating Temperature (° C) | -10~ + 70 |
Storage Temperature (° C) | -40 ~ +85 |
Package | 1unit/bag |
*All values specified are with connectors. |
Competitive Advantage
MXT strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
