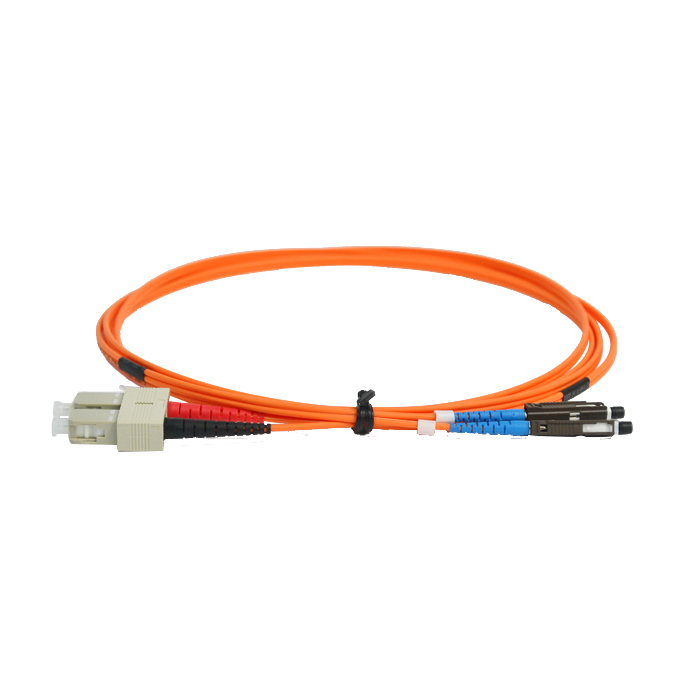

MXT
Applications
● CATV
● Telecom network
● Optical test eq0uipment
● Local area networks
● Wide networks
● Data processing Networks
Features
● Low insertion loss value
● High back reflection loss value
● Stable capability and high reliability
● Excellent mechanical capability
● Boots in a variety of colors
Specifications
Item | Single mode | Multi mode |
Insertion loss | ≤ 0.2dB | ≤ 0.3dB |
Return loss | PC≥50dB, APC≥55dB, UPC≥60dB | |
Insert-pull test | 1000 times | |
repeatability | ||
Tensile strength | ≤10kg | |
Operating temperature | -40℃~ +85℃ | |
Ceramic ferrule spec | 125.5um concentricity deviations: ≤1μm | 127um concentricity deviations: ≤3μm |
Suitable fiber | 9/125μm | 50/125μm、62.5/125μm |
