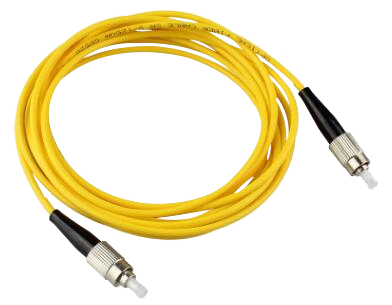

FC-FC Simplex Singlemode Optical Patch Cord

Availability:
FC-FC Simplex Singlemode Optical Patch Cord
  • MXT

Applications

● CATV
● Telecom network
● Optical test equipment
● Local area networks
● Wide area networks
● Data processing Networks


Features
● Low insertion loss value
● High back reflection loss value
● Stable capability and high reliability
● Precis connector
● Excellent mechanical capability

● Boots in a variety of colors



Specifications

Item

Single Mode

Multi Mode

Insertion Loss

≦0.2dB

≦0.3bB

Return Loss

PC≥50dB, UPC≥55dB, APC≥60dB

Insert-pull Test

1000 times

Repeatability

≦0.1

Tensile strength

≥10KG

Operating Temperature

-40℃ ~ +85℃

Ceramic Ferrule Specification

125.5um concentricity deviations:≦1um

127um concentricity deviations:≦3um

Suitable Fiber

9/125um

50/125um,62.5/125um


Competitive Advantage

MXT strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
