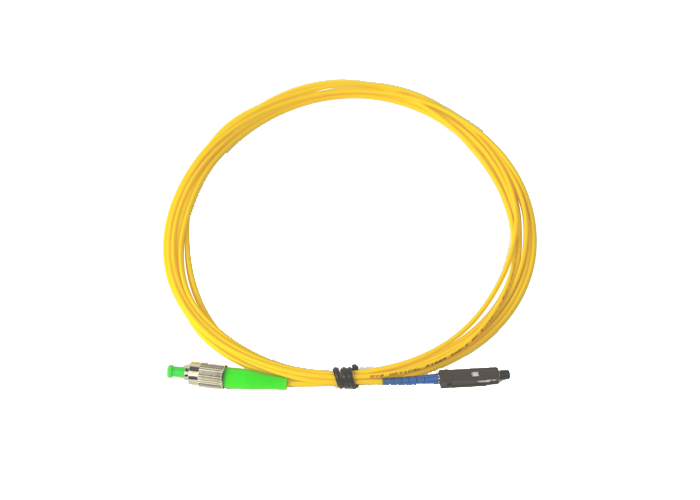

FC/APC-MU/APC Single Core Fiber Optic Patch Cord

Availability:
  • MXT

Applications

● CATV
● Telecom network
● Optical test equipment
● Local area networks
● Wide area networks
● Data processing Networks


Features
● Low insertion loss value
● High back reflection loss value
● Stable capability and high reliability
● Precis connector
● Excellent mechanical capability

● Boots in a variety of colors


Specifications

Item

Single Mode

Multi Mode

Insertion Loss

≦0.2dB

≦0.3bB

Insert-Pull Test

1000 times

Operating Temperature

-40℃ ~ +85℃

Ceramic Ferrule Specification

125.5um concentricity deviations:≦1um

127um concentricity deviations:≦3um

Suitable Fiber

9/125um

50/125um,62.5/125um



Competitive Advantage

MXT strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
