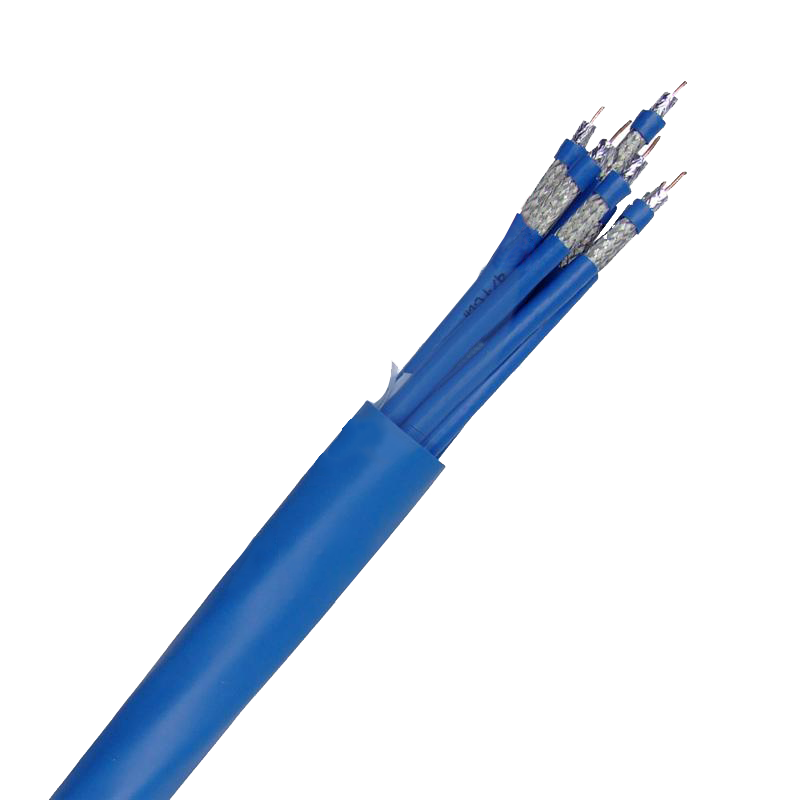

753803B Composite Cable

  • 753803B
  • MXT

BASIC CONSTRUCTION





753803B

CONDUCTOR

MATERIAL

BC

NOm.Dia.

23AWG

DIELECTRIC

MATERIAL

Foam PE

NOm.Dia.

2.51mm

SHIELD

MATERIAL

Al foil+TC braiding

COVERAGE

45%-95%

JACKET

MATERIAL

PVC

NOm.Thick.

1.36mm

NOm.Dia.

10.44mm


BASIC CHARACTERISTICS

Nominal Impedance(Ω)

75

Nominal Velocity of Propagation(%)

84

Nominal Capacitance (pF/m)

54.1

Sparker Test (VAC)

4000

SRL(dB)

50-300

20

300-1000

20

Attenuation
[@68°F(20℃)]

Frequency(MHz)

Maximum(dB/100ft)

Maximum(dB/100m)

1

0.38

1.24

3.6

0.77

2.52

10

1.29

4.23

71.5

3.04

9.97

135

4.18

13.71

270

5.92

19.42

360

6.70

21.98

720

9.47

31.06

1000

11.16

36.60

1500

13.67

44.84

2000

15.78

51.76

2500

16.74

54.91

3000

19.33

63.40
