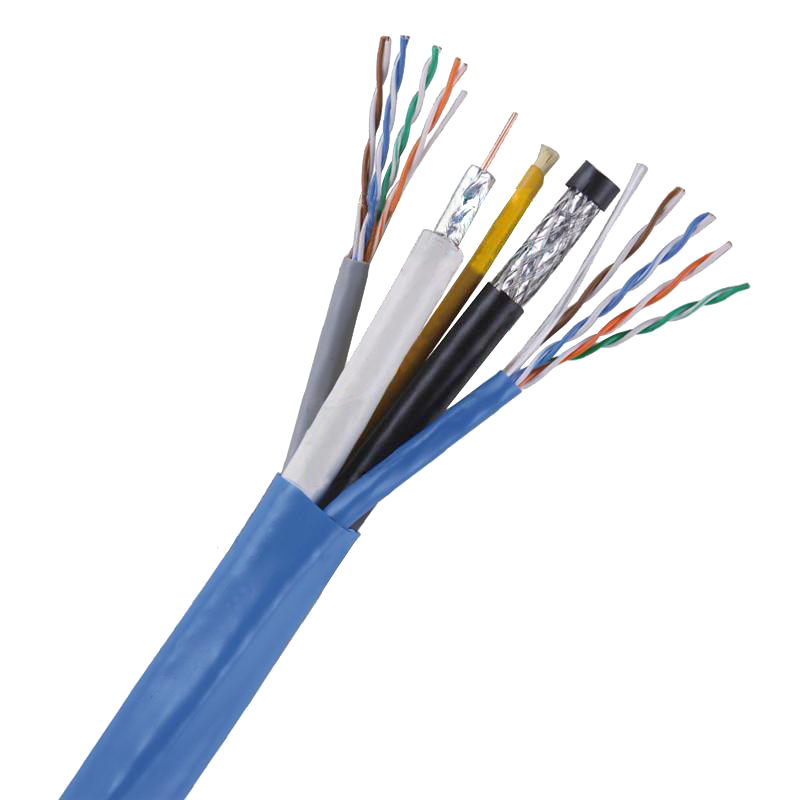

2RG6+2CAT5E+1 OPTICAL CABLE

  • 2RG6+2CAT5E+1
  • MXT

BASIC CONSTRUCTION

Nominal Impedance(Ω)

75

Nominal Velocity of Propagation(%)

85

Nominal Capacitance (pF/m)

50

Sparker Test (VAC)

4000

SRL(dB)

20

Attenuation
[@68°F(20℃)]

Frequency(MHz)

Maximum(dB/100ft)

Maximum(dB/100m)

5

0.58

1.90

55

1.60

5.25

300

3.55

11.64

600

5.10

16.73

1000

6.55

21.49

1800

8.46

27.73

2250

10.00

34.03

3000

11.40

37.50


BASIC CHARACTERISTICS

Temperature Rating



-20℃ to 60℃




Dielectric Breakdown

2500V


DC Resistance/Unbalance

28.6Ω/1000'Max/5%Max


Characteristics Impdeance

100Ω


Other Electric Performance

Frequency
(MHz)

Attenuation
(dB/100m)

Return Loss
(dB/100m)

Pair to Pair

NEXT
(dB/100m)

ELFEXT
(dB/100m)

0.77

1.80

NA

70.00

69.00

1

2.00

20.00

68.30

66.80

8

5.80

24.5

54.80

48.70

16

8.20

25.00

50.30

42.90

25

10.40

24.30

47.30

38.80

100

22.00

20.10

38.30

26.80

200

32.40

18.00

33.80

20.70

300

41.00

16.80

32.30

17.20

350

44.90

16.30

30.20

15.90


Wavelength(nm)

Maximum(dB/100km)

Attenuation
[@68°F(20℃)]

1310

0.35

1550

0.22
