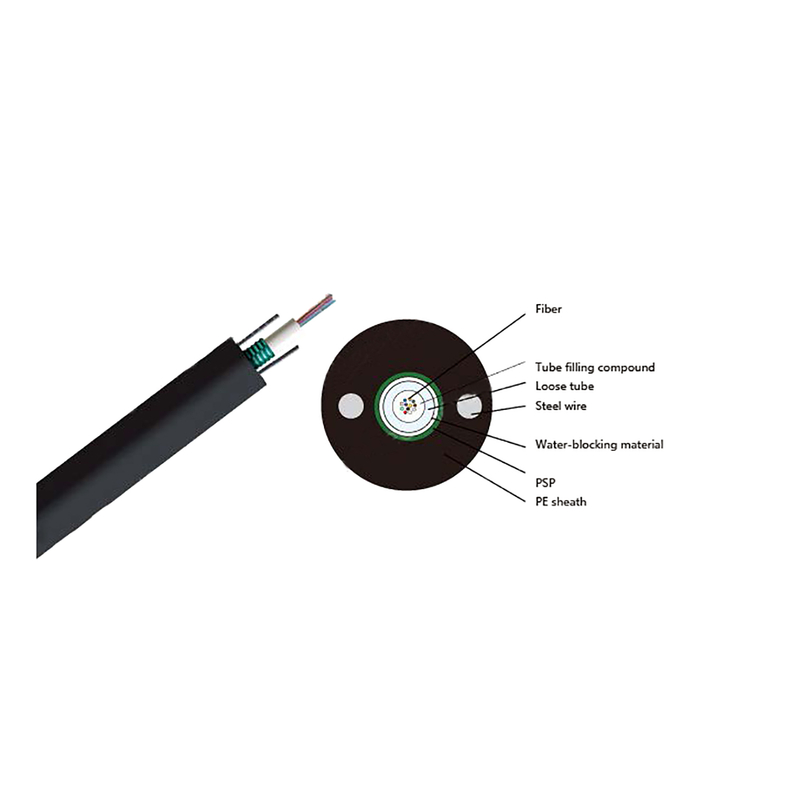

The fibers,250um,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.The tube is wrapped with a layer of PSP longitudubally.Between the PSP ans the loose tueb water-blocking material is applied to keep the cable compact and watertight.Two parallel steel wires are placed at the two sides of the steel tape.The cable is completed with a polyethylene(PE) sheath.Application : Duct/Aerial.
Model Number | GXYTW | Product Type | Fiber Optical GYXTW |
Fiber Type | G.652D/G.655/OM1/OM2 | Fiber Count | 4-144 |
Application | Aerial | Jacket | PE/AT |
Armor | Non-armoured | Package | Wooden Drum |
Aramid Yarn | Yes | OEM | Available |
Jacket Size | 12.5-17.9mm |
|
|
Cable Type |
| cable diameter (mm) | Cable weight | Tensile Strength Long/Short term N | Crush Resisitance Long/Short term N/100mm | Bending Radius Static/Dynamic mm |
(Increase by 2 fibers) | fiber count | kg/km |
GYXTW-2-12 | 2~12 | 8.5 | 100 | 600/1500 | 300/1000 | 10D/20D |
Ordering Information
Rolled by wooden drums. 2km-3km per drum or other required.
2. Sheath mark
The following printing is applied at 1-meter intervals.
a. Supplier: MXT or as customer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length marking in meters
