Product Name | Figure 8 Ftth 12core Self Supporting Outdoor Fiber Optic Cable | Installation | Outdoor Aerial/overhead |
Application | Outdoor Aerial/overhead Cabling System | Fiber Type | Single Mode/G.652D/G.655/G.657A/multimode |
Cable Type | Aerial Stranded Loose Tube Cable | Jacket Material | LSZH/PE |
Jacket Color | Black Or As Requested | Fiber Number | 1/2/4/8/12/24/48/72/96 Cores |
OEM | Acceptable | Strength Member | Stranded Steel Wire Or FRP |
Product name | GYTC8A-OEM Figure 8 ftth 12/24 cores self supporting outdoor fiber optic cable |

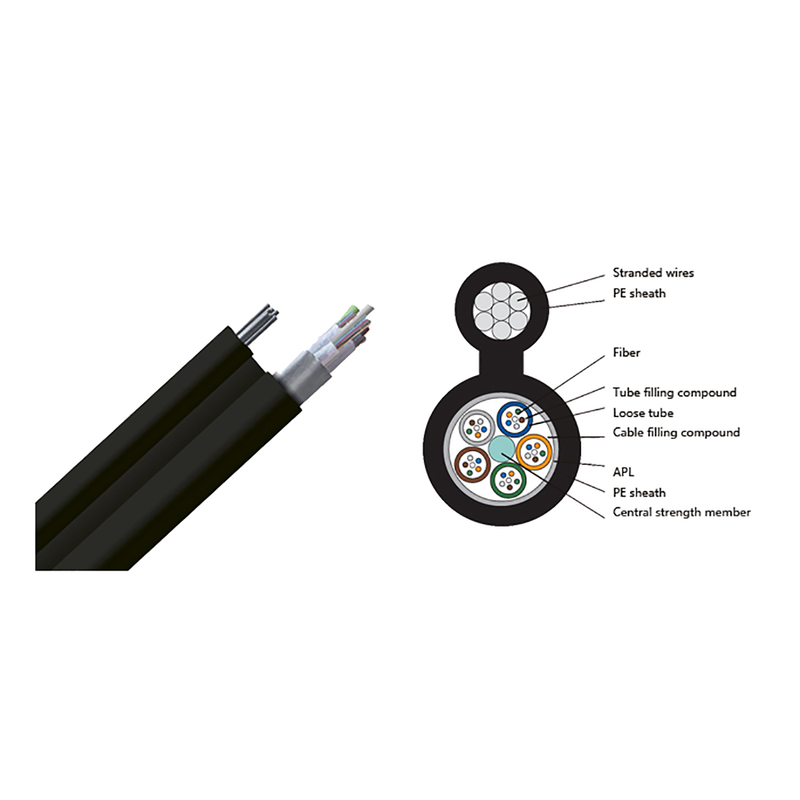

Introduction | The fibers, 250 um, are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate(APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. Figure 8 cable GYTC8Y, GYTC8S are also available on request. This type of cable is specifically applied for self-supporting aerial installation. |
Characteristics | 1. High tensile strength of stranded wires meet the requirement of self-supporting and reduce installation cost. 2. Good mechanical and temperature performance. 3. High strength loose tube that is hydrolysis resistant. 4. Special tube filling compound ensure a critical protection of fiber. 5. The following measures are taken to ensure the cable watertight: l Steel wire used as the central strength member l Loose tube filling compound l 100% cable core filling l APL moisture barrier |
Standards | Complies with standard YD/T 1155-2001 as well as IEC60794-1. |
Transport/Storage/Operating Temperature: -40℃ ~ +70℃
Installation Temperature: -40℃ ~ +70℃
Technical Parameters
Cable Code | Fiber Count | Tubes | Fillers | Cable Weight (1.2x7 steel wire) kg/km(Ref) | Tensile Strength Long/Short term N | Crush Resistance Long/Short term N/100mm | Bending Radius Dynamic/Static mm |
GYTC8A-2~6Xn | 2~6 | 1 | 4 | 158 | According to the diameter of the Messenger Wire | 300/1000 | 10D/20D |
GYTC8A-8~12Xn | 8~12 | 2 | 3 | 158 | |||
GYTC8A-14~18Xn | 14~18 | 3 | 2 | 158 | |||
GYTC8A-20~24Xn | 20~24 | 4 | 1 | 158 | |||
GYTC8A-26~30Xn | 26~30 | 5 | 0 | 158 | |||
GYTC8A-32~36Xn | 32~36 | 6 | 0 | 167 | |||
GYTC8A-38~48Xn | 38~48 | 4 | 1 | 172 | |||
GYTC8A-50~60Xn | 50~60 | 5 | 0 | 172 |
Ordering Information
1.Rolled by wooden drums. 2km-3km per drum or other required.
2. Sheath mark
The following printing is applied at 1-meter intervals.
a. Supplier: MXT or as cuctomer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length marking in meters
