GYFXY
MXT
Model Number | GYFXY | Number of | ≥10 |
Standard | YD/T 769-2010 | Sheath | PE |
Strength | FRP | Fiber Count | 2-12 |
Fiber Type | SM/MM | Product Name | Non-metallic unarmored optical fiber wire |
Armour | Non | Application | Outdoor Aerial |
Standard | Central LooseTube | Certification | ISO9001 |

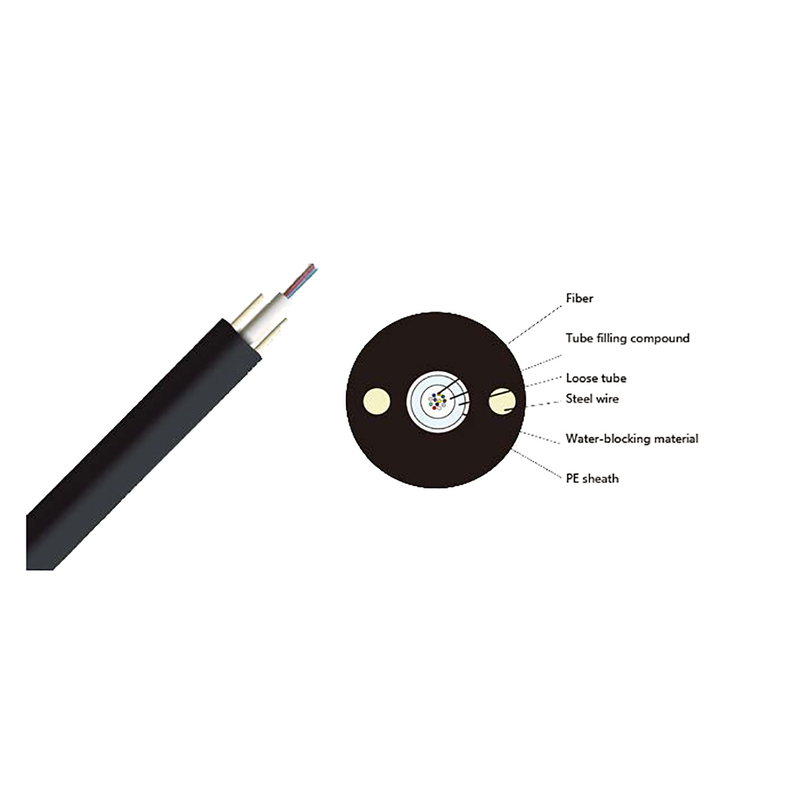

Introduction The fibers,250 um,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.Over the tube,water-blocking material is applied to keep the cable watertight.Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides,The cable is completed with a polyethylene (PE) sheath.
Characteristics
● Good mechanical and temperature performance
● High strength loose tube that is hydrolysis resistant
● Special tube filling compound ensure a critical protection of fiber
● Two parallel FRPs ensure tensile strength
● PE sheath protects cable from ultraviolet radiation
● Long delivery length
● Small diameter,light weight and friendly installation
Technical Parameter
Cable Type | Fiber Count | Cable Diameter | Cable Weight | Tensile Strength | Crush Resistance |
(Increased by 2 fibers) | mm | Kg/Km | Long/Short Term | Long/Short Term | |
N | N/100mm | ||||
GYFXY-2~12 | 2~12 | 8.2 | 81 | 400/1000 | 300/10 |
Application
● All types of fiber cables with different structures
● High performance optical network operating
● High speed optical routes in buildings(FTTX)
Ordering Information
Rolled by wooden drums. 2km-3km per drum or other required.
2. Sheath mark
The following printing is applied at 1-meter intervals.
a. Supplier: MXT or as customer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length marking in meters
