GYTA/S
MXT
Model Number | GYTA/S | Insulation Material | PE |
Type | Fiber Optic Cable | Application | Telecommunication,Duct |
Conductor | Fiber | Jacket | PE,PE |
Product Name | Outdoor Use Standard Loose Cable | Fiber Type | G.652D/G.655/G.657 |
Fiber Count | 2-72 | Armor | PSP/ALP |
Package | Wooden Drum | OEM | Yes |
Certification | ISO9001 | Factory Price | Yes |
Cable Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength (N) | Minimum allowable Crush Load | Minimum Bending Radius (MM) | Storage temperature | |||
(MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) | |
24 | 10.5 | 90 | 1500 | 600 | 1000 | 300 | 20D | 10D | 20 |
36 | 10.5 | 90 | 1500 | 600 | 1000 | 300 | 20D | 10D | 20 |
42 | 10.5 | 90 | 1500 | 600 | 1000 | 300 | 20D | 10D | 20 |
48 | 10.5 | 90 | 1500 | 600 | 1000 | 300 | 20D | 10D | 20 |
60 | 10.5 | 90 | 1500 | 600 | 1000 | 300 | 20D | 10D | 20 |
72 | 13.5 | 160 | 1500 | 600 | 1000 | 300 | 20D | 10D | 20 |

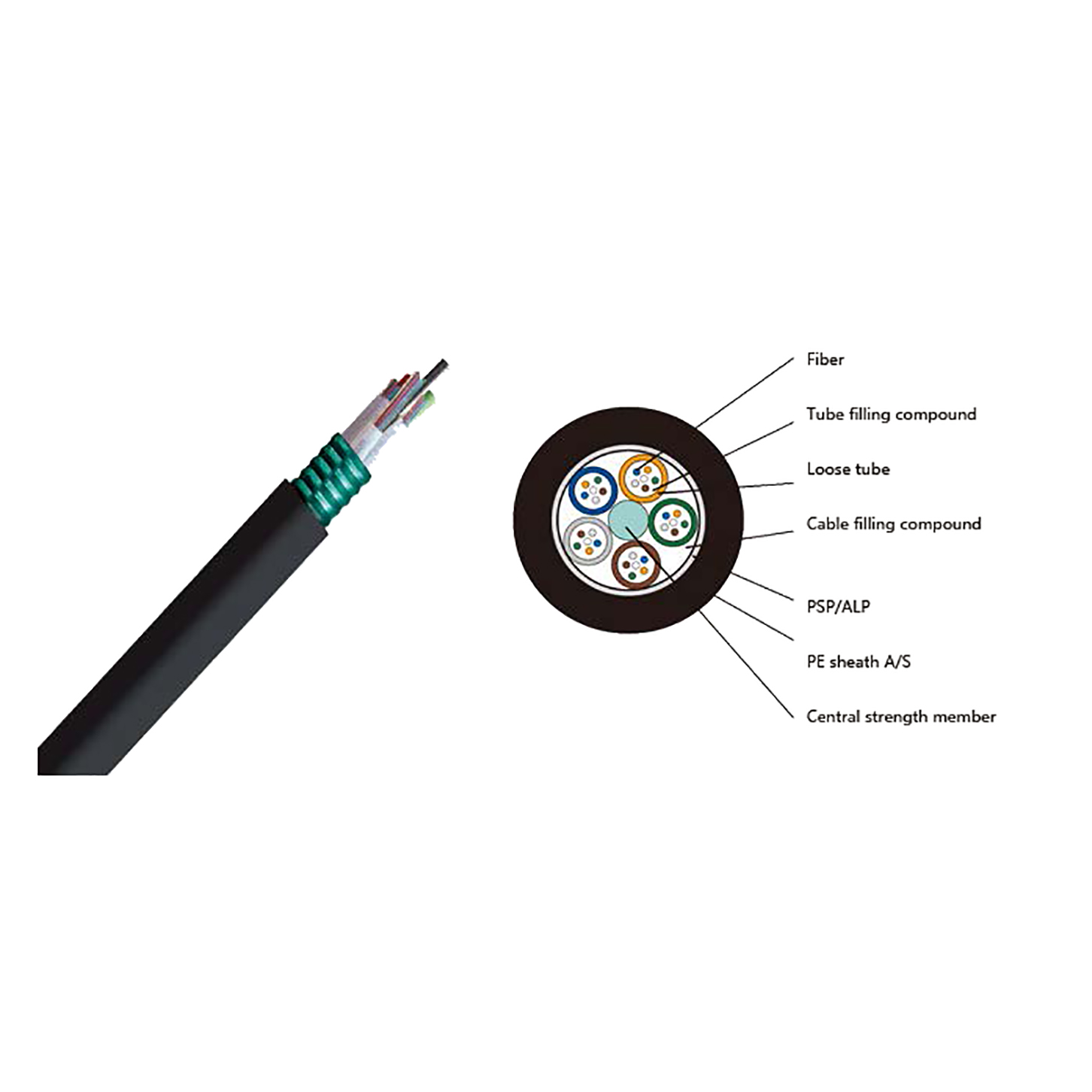

Characteristics
● The fibres,250μm,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.
● A steel wire act as central strength member.
● Sometimes sheathed with polyethylene(PE) for cable with high fiber count.
● An Aluminum Polyethylene Laminate (APL) is applied around the cable.
● The cable is completed with a PE sheath . Application: Duct/Aerial.
