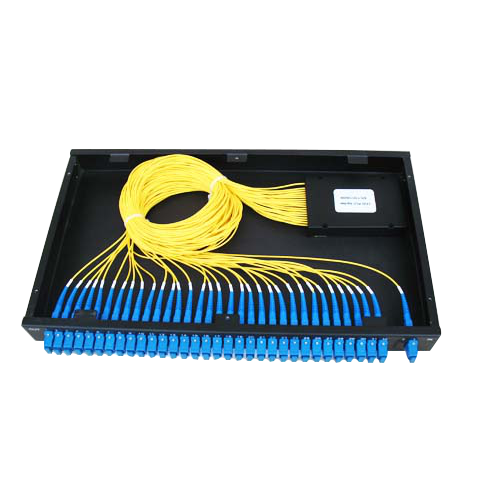

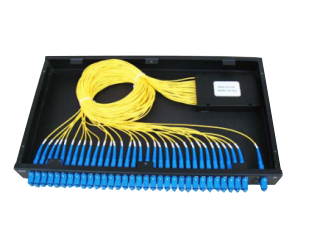

1x32 PLC SC/UPC
MXT
Quick Detail
Model Number: 1x32 PLC SC/UPC
Length: 1m ,1.5m, 2m or customized length
Ferrule Polish:APC,UPC,PC
Features
● Various coupling ratio
● Single mode and multi mode available
● Low insertion loss, low PDL
● Environmental stable
● Industry standard and custom housing available
● Variety of connectors available
● 1x2, 1x4 and 1x n customized couplers configuration available
Applications
● Optical communication system
● System and signal monitoring
● CATV Systems & Fiber Sensors
● Fiber to the home (FTTH)
● Network redundancy
● Laser splitting
Specifications
Parameter | Configuration | |||
N x 4 (N=1,2,16) | N x 8 (N=1,2,8) | N x 16 (N=1,2,16) | N x 32 (N=1,2,32) | |
Operate Wavelength(nm) | 1310/1550, or customized | |||
Bandwidth(nm) | ±20 | |||
Max.Excess Loss(dB) | 0.2 | 0.3 | 0.4 | 0.5 |
Typ.Insertion Loss(dB) | 6.2 | 9.3 | 12.4 | 15.5 |
Max.Insertion Loss(dB) | 6.8 | 10.2 | 13.6 | 17 |
Uniformity(dB) | 1.2 | 1.8 | 2.4 | 3 |
PDL(dB) | 0.08 | 0.12 | 0.16 | 0.2 |
Thermal Stability(dB) | 0.2 | 0.3 | 0.4 | 0.5 |
Directivity(dB) | >≥60 | |||
Operate Temperature(°C) | -40~ +70 | |||
Lead Length(m) | 1 or customized | |||
Lead Type(mm) | φ3.0, φ2.0, φ0.9 | |||
Competitive Advantage
MXT strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; And good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast.
