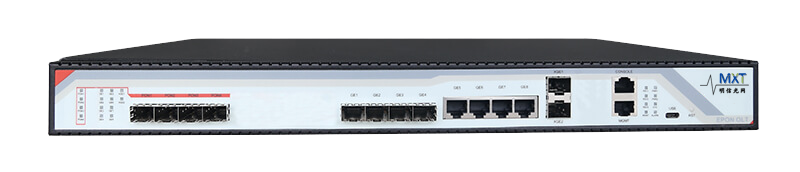

4PON GEPON OLT MXT1204S-R2 provides 1 USB interface, 4GE(copper) and 4GE optical interface, 2*10Gb uplink interface, and 4 EPON ports for downstream. It can support 256 ONUs under 1:64 splitter ratio.
Overview
Pizza-Box 4PON GEPON OLT series products is 1U high 19 inch rack mount product. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to deploy in an compact room environment.
The OLT can use for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications. It is a high performance products.
MXT1204S-R2 provides 1 USB interface, 4GE(copper) and 4GE optical interface, 2*10Gb uplink interface, and 4 EPON ports for downstream. It can support 256 ONUs under 1:64 splitter ratio.
Main Features
● 1 USB interface
● 4GE(copper) and 4GE optical interface
● 2*10Gb uplink interface
● 4 EPON ports for downstream
● It can support 256 ONUs under 1:64 splitter ratio.
● Support BBU

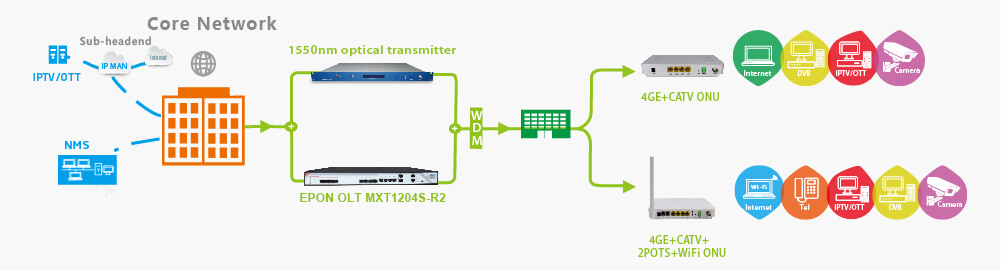

Network Application
Specification
Item | MXT1204S-R2 |
Chassis | Rack | 1U 19 inch standard box |
Uplink Port | QTY | 10 |
Copper | 10/100/1000M auto-negotiable,RJ45:4pcs |
Optical interface | 4 GE |
10Gb uplink interface | 2*10Gb |
PON Port | QTY | 4 |
Physical Interface | SFP Slots |
Connector Type | 1000BASE-PX20+ |
Max splitting ratio | 0.086111111 |
Management Ports | 1*100BASE－TX outband port; 1 CONSOLE port |
PON Port Specification
（Apply to PON module） | Transmission Distance | 20KM |
PON port speed | Symmetrical 1.25Gbps |
Wavelength | 1490nm TX,1310nm RX |
Connector | SC/PC |
Fiber Type | 9/125μm SMF |
TX Power | +2.5～+7dBm |
Rx Sensitivity | -27dBm |
Saturation Optical Power | -6dBm |
10Gb SFP+ Port Specification
（Apply to 10Gb module） | Transmission Distance | 10KM |
PON port speed | 8.5-10.51875Gbps |
Wavelength | 1310nmTX，1310nmRX |
Connector | LC |
Fiber Type | Single mode with dual fiber |
TX Power | -8.2~+0.5 dBm |
Rx Sensitivity | -12.6dBm |
Management Mode | SNMP, Telnet, CLI management mode. |
Management Function | Fan Group Detecting
Port Status monitoring and configuration management;
Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc;
EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc;
Online ONU configuration and management
User management
Alarm management |
Layer-two Switch | Support port VLan and protocol Vlan
Support Vlan tag/Untag ,vlan transparent transmission;
Support 4096 VLAN
Support 802.3dd trunk
RSTP
QOS based on port ,VID,TOS and MAC address
IGMP Snooping
802.x flow control
Port stability statistic and monitoring |
EPON Function | Support port-based rate limitation and bandwidth control;
In compliant with IEEE802.3ah Standard
Up to 20KM transmission Distance
Support data encryption, group broadcasting, port Vlan separation, RSTP, etc.
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/Link detection/remote upgrade of software;
Support VLAN division and user separation to avoid broadcast storm;
Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels.
Support power-off alarm function ,easy for link problem detection
Support broadcasting storm resistance function
Support port isolation between different ports
Support ACL and SNMP to configure data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable system
Support dynamic distance calculation on EMS online
Support RSTP,IGMP Proxy |
Layer-three Route | Support static unicast
Support static multicast
Support RIP routing protocol
Support dynamic multicast protocol with active source |
Backplane Bandwidth | 64G |
Dimension | 440*350*44(mm*mm*mm） |
Weight | 6kg |
Power Supply | Support BBU | DC: 11V~14V |
220VAC | AC: 90V～240V，47/63Hz |
-48DC | DC:-36V～-72V |
Power Consumption | 50W |
Operating Environment | Working Temperature | 0～50℃ |
Storage Temperature | -40～85℃ |
Relative Humidity | 5～90%(non-condensing) |
