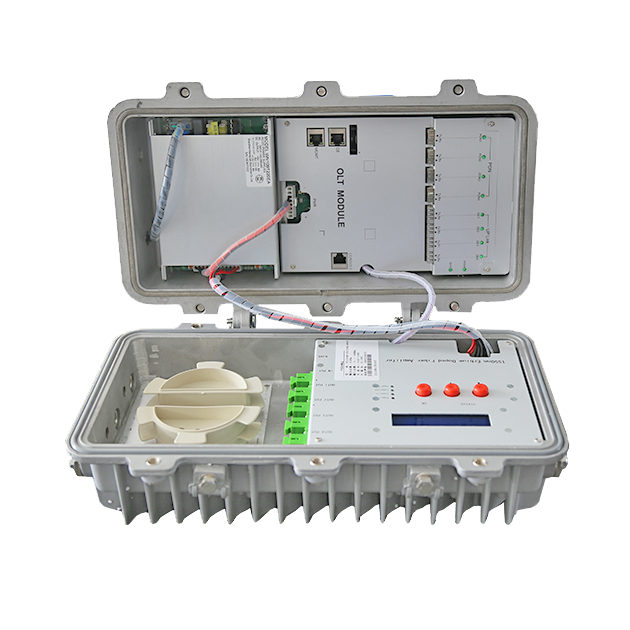

MXT1104Y-ED2204 CHON OUTDOOR TYPE EPON OLT& EDFA

  • MXT1104Y-ED2204
  • MXT

CHON OUTDOOR EPON OLT MXT1104Y-ED2204 OLT part provides 4GE optical interface for uplink, 4 EPON ports for downstream. And provide EDFA management port, Built-in 220VAC power module, support Dual power supply configuration.


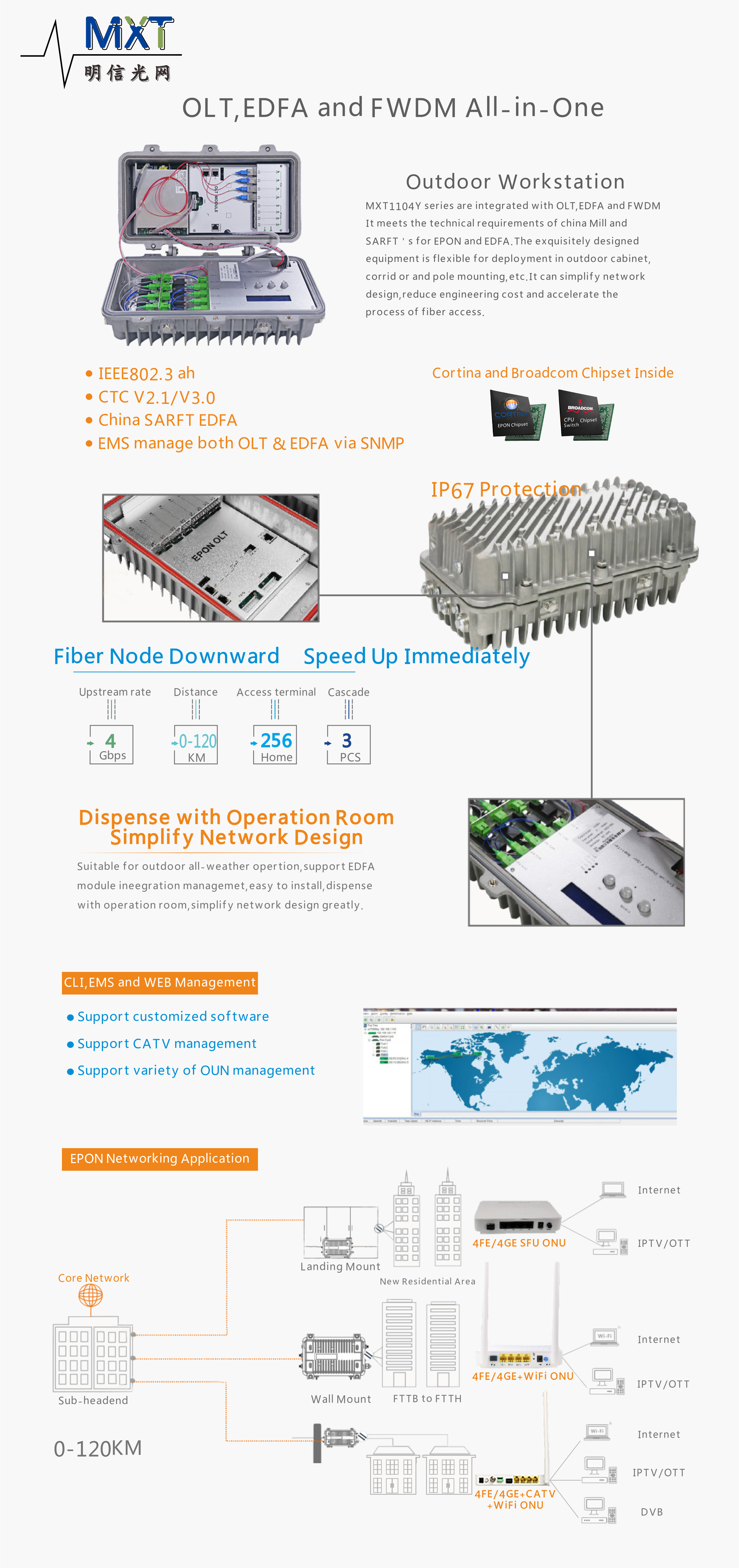

Overview

CHON is a series of products integrated with OLT and EDFA. It meets the technical requirements of China MII and SARFT’s for EPON and EDFA. The exquisitely designed equipment is flexible for deployment in outdoor cabinet, corridor and pole mounting, etc. CHON OUTDOOR EPON OLT can simplify network design, reduce engineering cost and accelerate the process of fiber access.

 MXT1104Y-ED2204 OLT part provides 4GE optical interface for uplink, 4 EPON ports for downstream. And provide EDFA management port, Built-in 220VAC power module, support Dual power supply configuration.

It can support 256 ONU under 1:64 splitter ratio. The OLT can use for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications. It is a high performance products.


CHON OUTDOOR EPON OLT Main Features

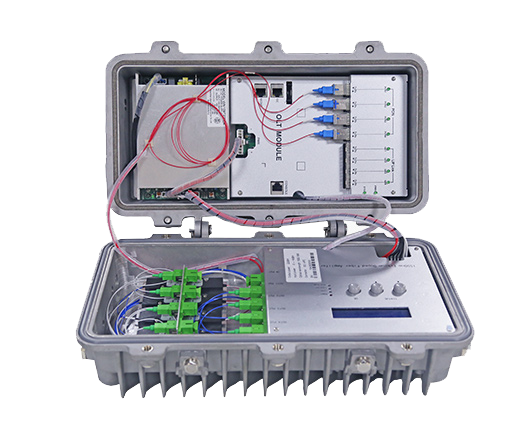

● Integrated with OLT and EDFA

● MXT1104Y-ED2204 OLT part provides 4GE optical interface for uplink, 4 EPON ports for

downstream.

● Support 256 ONU under 1:64 splitter ratio

● High performance

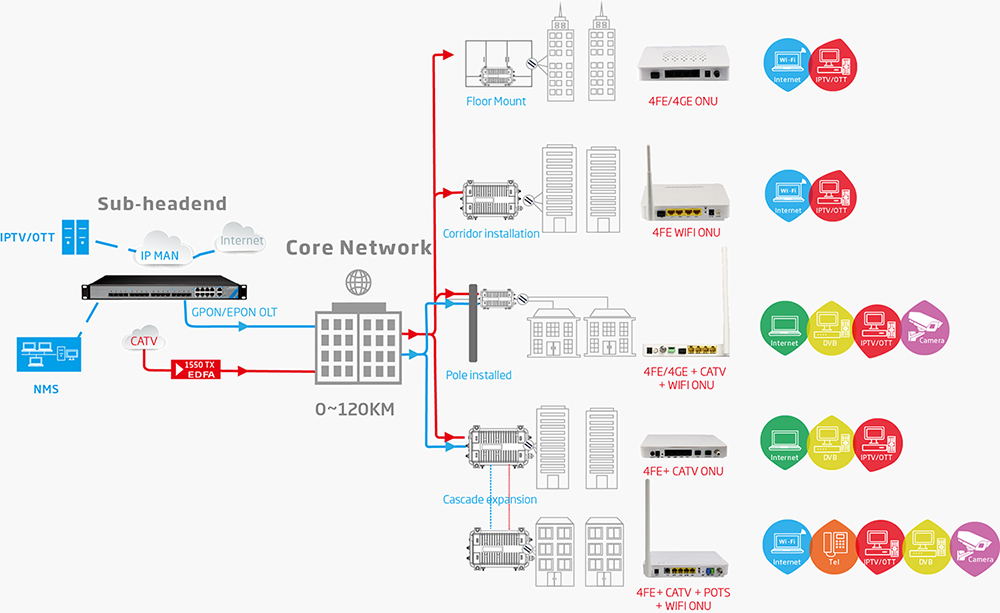

Network Application

Specification

Item

Parameter

Uplink Port

QTY

4

SFP

4GE optical interface

PON Port

QTY

4

Physical Interface

SFP Slots

Connector Type

1000BASE-PX20+

Max splitting ratio

0.086111111

Management Ports

1*10/100/1000Mauto-negotiable outband port

1*CONSOLE port

PON Port Specification
(Apply to PON module)

Transmission Distance

20KM

PON port speed

Symmetrical 1.25Gbps

Wavelength

1490nm TX,1310nm RX

Connector

SC/PC

Fiber Type

9/125μm SMF

TX Power

+2~+7dBm

Rx Sensitivity

-30dBm

Saturation Optical Power

-6dBm

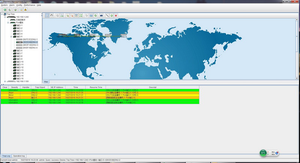

Management Mode

SNMP, Telnet, CLI management mode.

Management Function

Port Status monitoring and configuration management;

Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc;

EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc;

Online ONU configuration and management

User management

Alarm management

Layer-two Switch

Support port VLan and protocol Vlan

Support Vlan tag/Untag ,vlan transparent transmission;

Support 4096 VLAN

Support 802.3dd trunk

Support RSTP

Support QOS based on port ,VID,TOS and MAC address

Support IGMP Snooping

Support 802.x flow control

Support Port stability statistic and monitoring

EPON Function

Support port-based rate limitation and bandwidth control;

In compliant with IEEE802.3ah Standard

Up to 20KM transmission Distance

Support data encryption, group broadcasting, port Vlan separation, RSTP, etc.

Support Dynamic Bandwidth Allocation (DBA)

Support ONU auto-discovery/Link detection/remote upgrade of software;

Support VLAN division and user separation to avoid broadcast storm;

Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels.

Support power-off alarm function ,easy for link problem detection

Support broadcasting storm resistance function

Support port isolation between different ports

Support ACL and SNMP to configure data packet filter flexibly

Specialized design for system breakdown prevention to maintain stable system

Support dynamic distance calculation on EMS online

Support RSTP,IGMP Proxy

Power Consumption

35W


EDFA SPECIFICATION

ITEM

Parameter

Output Power (dBm)

22dBm

Input Power (dBm)

-3~10

Wavelength (nm)

1540~1560

Optical Output Stability (dB)

≤±0.3

Polarization Sensitivity (dB)

≤0.2

Polarization Dispersion (PS)

≤0.5

Optical Return Loss(dB)

≥45

Optical Connector

SC/APC,1 input and 4 output

Noise Figure (dBmV)

≤5.2(0dBm optical input)

Management Interface

SNMP (RS232 via OLT)

Power Consume(W)

45


Other

ITEM

Parameter

Dimension

400*245*165

Weight

8Kg

Power Supply

220VAC:AC: 90V~240V,47/63Hz

Operating Environment

Working Temperature

-20~65℃

Storage Temperature

-40~85℃

Relative Humidity

5~90%(non-condensing)
