MXT1104B
MXT

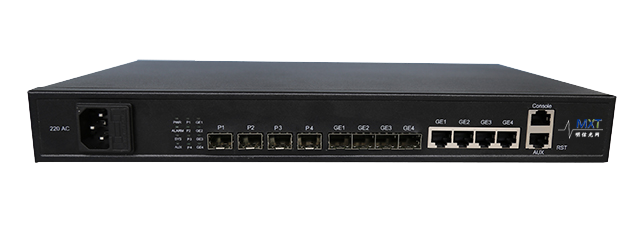

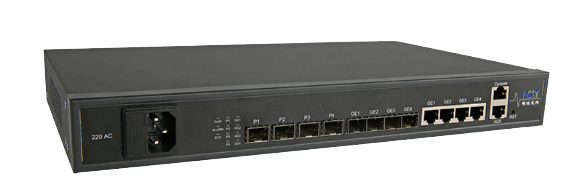

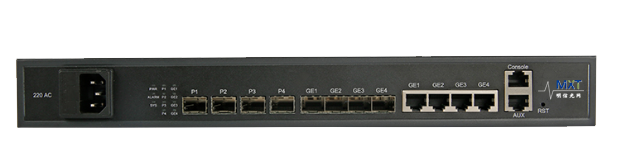

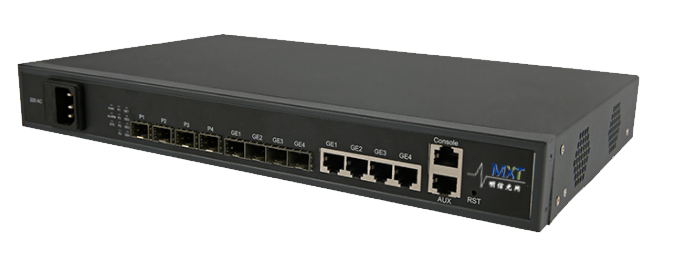

EPON OLT – MXT1104B provides 4GE and 4 SFP slots interface for uplink, and 4 EPON ports for downstream. It can support 256 ONU under 1:64 splitter ratio.
Overview
EPON OLT MXT1104B compact type OLT products is 1UPizza-Box product. The features of the OLT are small size, convenient, flexible, easy to deploy, high performance. It is appropriate to deploy in a compact room environment.
The OLT can use for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications. It is a high performance products.
EPON OLT MXT1104B provides 4GE and 4 SFP slots interface for uplink, and 4 EPON ports for downstream. It can support 256 ONU under 1:64 splitter ratio.
Main Features
● 4 PON ports EPON OLT
● Four pon port in 1U piza-box
● Four uplink GE optical SFP ports
● Four uplink GE RJ45 copper ports
● Double 220VAC or -48VDC redundancy power supply

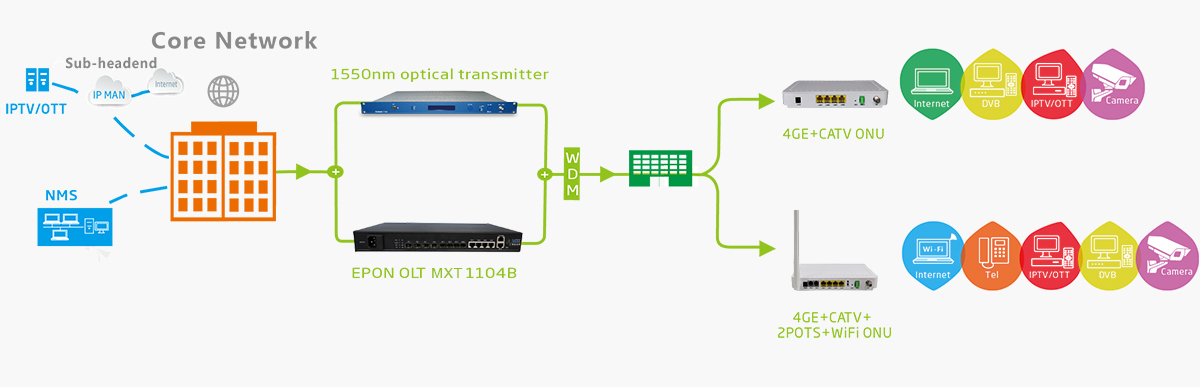

Network Application
Specification
Item | Parameter | |
Uplink Port | QTY | 8 |
Copper | 10/100/1000M auto-negotiable,RJ45:4pcs | |
SFP | 4 SFP slots | |
PON Port | QTY | 4 |
Physical Interface | SFP Slots | |
Connector Type | 1000BASE-PX20+ | |
Max splitting ratio | 0.086111111 | |
Management Ports | 1*10/100/1000Mauto-negotiable outband port | |
PON Port Specification | Transmission Distance | 20KM |
PON port speed | Symmetrical 1.25Gbps | |
Wavelength | 1490nm TX,1310nm RX | |
Connector | SC/PC | |
Fiber Type | 9/125μm SMF | |
TX Power | +2.5～+7dBm | |
Rx Sensitivity | -27dBm | |
Saturation Optical Power | -6dBm | |
Management Mode | SNMP, Telnet, CLI management mode. | |
Management Function | Fan Group Detecting | |
Port Status monitoring and configuration management; | ||
Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc; | ||
EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc; | ||
Online ONU configuration and management | ||
User management | ||
Alarm management | ||
Layer-two Switch | Support port VLan and protocol Vlan | |
EPON Function | Support port-based rate limitation and bandwidth control; | |
Dimension | 390mm*250mm*44mm(L*W*H) | |
Weight | 3.5kg | |
Power Supply | 220VAC：AC: 90V～240V，47/63Hz | |
Power Consumption | 34W | |
Operating Environment | Working Temperature | 0～50℃ |
Storage Temperature | -40～85℃ | |
Relative Humidity | 5～90%(non-condensing) | |
