Availability: | |
---|---|
GJXFHA
MXT
Product Name | FTTH Outdoor 1/2/4/8/12 Cores G652D/G657A1/2 Single Mode GJXFHA Bow-type Drop Cable For Duct | Installation | FTTH/x Outdoor Duct/conduit |
Application | Outdoor Duct/Conduit/Underground/Direct Buried Cabling System | Fiber Type | Single Mode/G.652D/G.655/G.657A |
Cable Type | Drop Cable For Duct/conduit | Jacket Material | LSZH/PE |
Jacket Color | Black Or As Requested | Fiber Number | 1/2/4 Cores |
OEM | Acceptable | Waterproof | Yes. APL Moisture Barrier. |
Strength Member | FRP , APL Moisture Barrier |
Product name | FTTH outdoor 1/2/4/8/12 cores G652D/G657A1/2 single mode GJXFHA bow-type drop cable for duct |

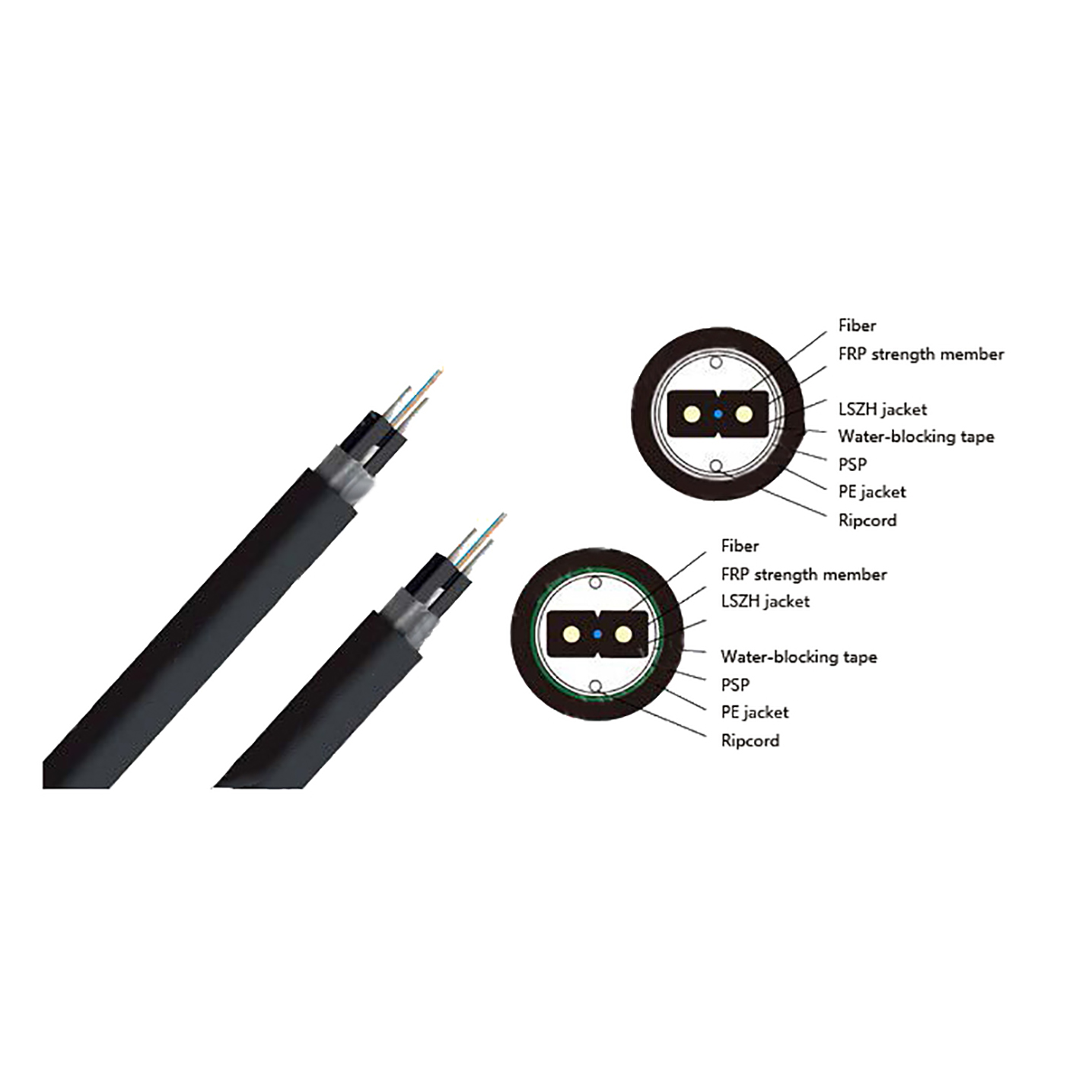

Introduction | The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. The, the cable is completed with a black or color LSZH (Low smoke, Zero halogen, Flame-retardant) sheath and armed with aluminum band. Finally the cable is completed with a PE sheath. |
Characteristics | 1. Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property. 2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber. 3. Novel flute design, easily strip and splice, simplify the installation and maintenance. 4. Low smoke,.zero halogen and flame retardant sheath; PE sheath protects cable from ultraviolet radiation. 5. Simplex structure, light weight and high practicability. 6. APL moisture barrier. |
Application | 1. Indoor riser level and plenum level cable distribution 2. Interconnect between instruments, communication equipments. |
Standards | Comply with standard YD/T 1258.2-2003,IECA-596,GR-409,IEC 60794-2-10/11,etc; and meet the requirements of UL approval for OFNR and OFNP. |
Transport/Storage/Operating Temperature: -20℃ - +60℃
Installation Temperature: -5℃ - +50℃
Cable Code | Fiber Count | Cable Size mm | Cable Weight (Ref) kg/km | Tensile Strength Long/Short term N | Crush Resistance Long/Short term N/100mm | Bending Radius Dynamic/Static mm |
GJXFHA-1Xn | 1 | 7.3 | 42 | 200/600 | 2000 | 10D/20D |
GJXFHA-2Xn | 2 | 7.3 | 42 | 200/600 | 2000 | 10D/20D |
Durable loose tube drop cable for outdoor installation in ducts or direct-buried applications.
Two fiber reinforced glass rods guarantee the highest crush performance. The cable is longitudinally water blocked.
Technical Information
Design: Loose tube
Type: Outdoor, direct buried
Capacity: 1 - 12 fibers
Fiber type: G657A1 or G657A2 fibers
Ordering information
Standard Packaging
Rolled by wooden drums then in cartons. 1000m to 3000m/drum or other required.
2. Sheath mark
The following printing is applied at 1-meter intervals.
a. Supplier: MXT or as customer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length mark in meters
