Product name | FTTH outdoor 1/2/4/8/12 cores G652D/G657A1/2 single mode self-supporting drop cable GJYXFCH |

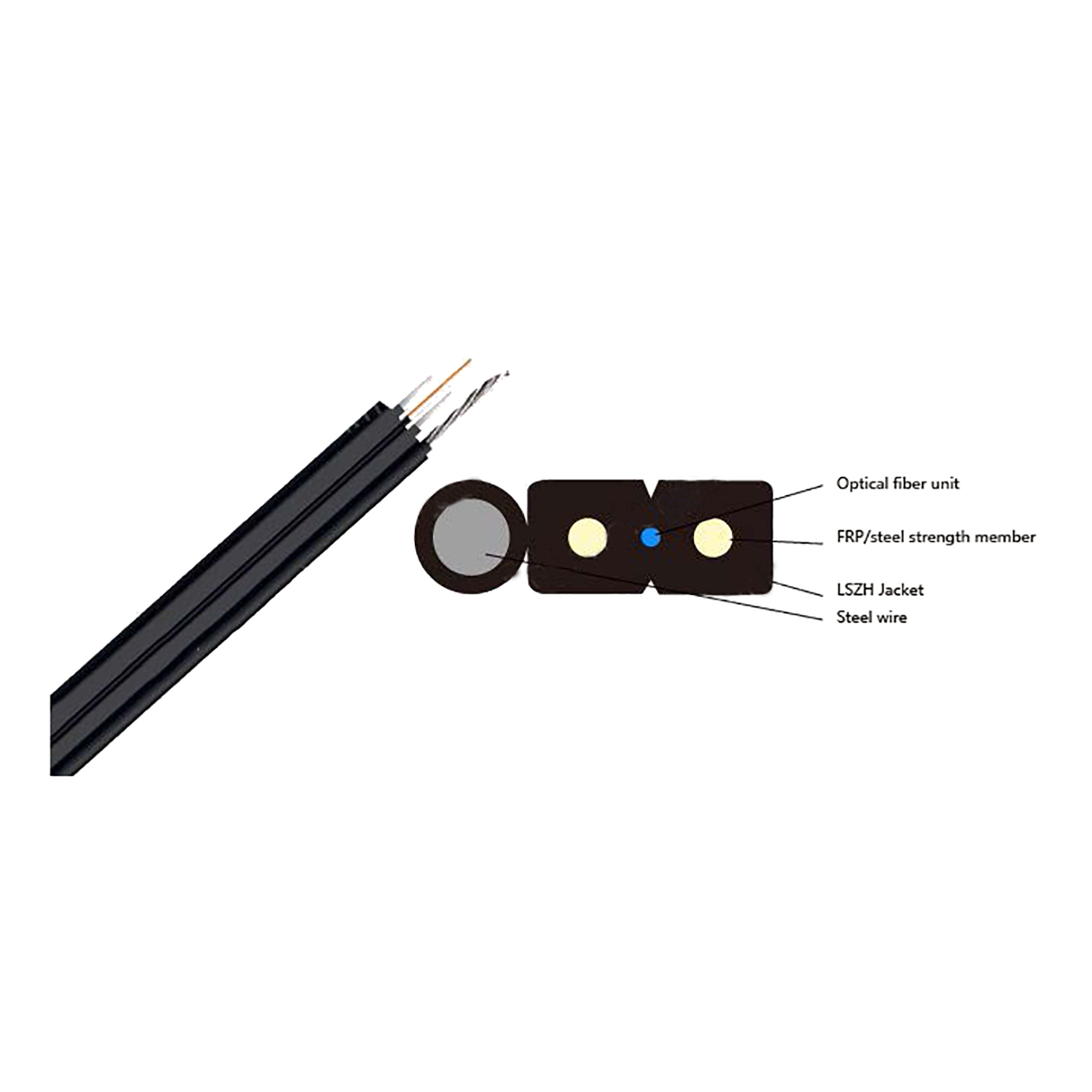

Introduction | The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied.Then, the cable is completed with a black or color LSZH sheath. |
Characteristics | 1. Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property 2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber 3. Single steel wire as the additional strength member ensures good performance of tensile strength 4. Simplex structure,light weight and high practicability 5. Novel flute design, easily strip and splice,simplify the installation and maintenance 6. Low smoke,zero halogen and flame retardant sheath |
Application | 1. Indoor riser level and plenum level cable distribution 2. Interconnect between instruments, communication equipments |
Standards | Comply with standard YD/T 1997-2009,ICEA-596,GR-409,IEC 60794,ETC. |
Transport/Storage/Operating Temperature: -20℃ - +60℃
Installation Temperature: -5℃ - +50℃
Cable Code | Fiber Count | Cable Size mm | Cable Weight (Ref) kg/km | Tensile Strength Long/Short term N | Crush Resistance Long/Short term N/100mm | Bending Radius Dynamic/Static mm |
GJYXFCH-1Xn | 1 | (2.0±0.1)x(5.2±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
GJYXFCH-2Xn | 2 | (2.0±0.1)x(5.2±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
GJYXFCH-1Xn | 1 | (2.0±0.1)x(5.6±0.1) | 21 | 300/600 | 1000/2200 | 15/30 |
GJYXFCH-4Xn | 4(Ribbon) | (2.0±0.2)x(6.0±0.2) | 22 | 300/600 | 1000/2200 | 15/30 |
Technical Parameters
In a communications network, a drop is the portion of a device directly connected to the internal station facilities, such as toward a telephone switchboard, toward a switching center, or toward a telephone exchange. A drop can also be a wire or cable from a pole or cable terminus to a building, in which case it may be referred to as a downlead. These cables may be reinforced to withstand the tension (due to gravity and weather) of an aerial drop (i.e., hanging in air), as in "messenger" type, which is reinforced with a steel messenger wire along its length.
Ordering Information
Standard Packaging
Rolled by wooden drums then in cartons. 1000m to 3000m/drum or other required.
2. Sheath mark
The following printing is applied at 1-meter intervals.
a. Supplier: MXT or as customer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length mark in meters
