Detailed Product Description
Color: | Yellow,gray,sky Bule,Orange,white | Cable Type: | Simplex,Duplex,Bundle,Ribbon |
Type Of Connector: | FC,SC,ST,LC,MU, E2000,MTRJ | Polishing: | PC,UPC,SPC,APC |
Repeatabiity: | ±0.1dB | Test: | 100% Fluke Test Approved |

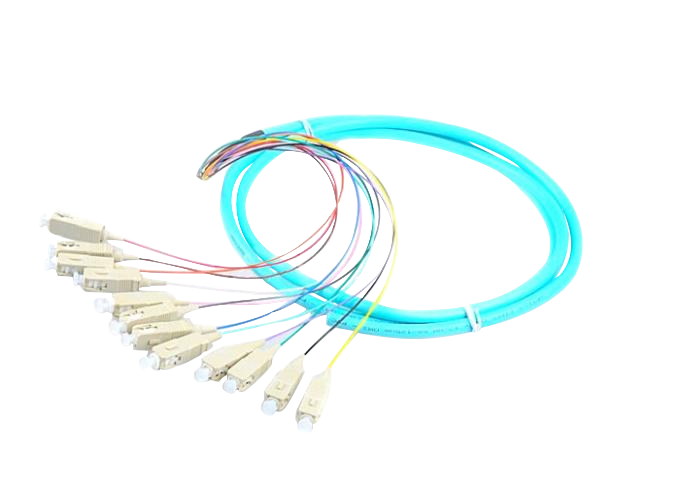

50/125 OM4 OM3 Fiber Optic Pigtail 12Fibers SC Fiber Optic Jumper 0.9mm PVC Jacket
Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The bunch fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.
Features
● ANSI, Bellcore, TIA/EIA 568C, IEC Strandards
● Low Insertion Loss and High Retum Loss
● Excellent Repeatability and Changeability
● Simplex and Duplex Available
● Ceramic Ferrules
● Riser, Plenum & LSZH cable option
● Optical performance 100% factory tested
Applications
● Telecommunication Networks
● CATV Networks
● Active Device Termination
● Local Area Networks
Specifications
Parameter | Single Mode | Multi Mode | |||
Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO | |||
Ferrule End-face | PC | UPC | APC | UPC | |
Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB | |
Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB | |
Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | |||
Suitable Fiber | 9/125um | 50/125um,62.5/125um | |||
End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A | |
Fiber Protrusion | ≤50nm | ≤100nm | N/A | ||
Fiber Under Cut | ≤100nm | ≤100nm | N/A | ||
Apex offset | ≤50um | ||||
Mechanical | Exchangeability | ≤0.2dB | |||
Salt Spray | ≤0.1dB | ||||
Drop | ≤0.2dB(1.5M, 5 drops) | ||||
Vibration | IL ≤0.2dB(550Hz, 1.5mm) | ||||
Repeatability | ≤ 0.1dB(1000 times) | ||||
Durability | > 1000 times | ||||
Operating Temperature | -40°C ~ +85°C | ||||
Ordering Information
Boot | Connector | Fiber Type | Cable number | Ferrule | Length | Color |
0.9mm 2.0mm 3.0mm | FC LC SC ST MU D4 MTRJ MPO DIN E2000 | 9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 | Simplex Duplex Multi-fiber Ribbon | PC APC UPC | 1m 2m 3m 4m 5m ...... Customized | Aqua Black Biege Blue Gray Orange White Yellow |
Shipping
● Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
● Airport to Airport: by air
● Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
