Detailed Product Description
Tensile Stength(N): | >=50N | Repeatability(dB): | <=0.1dB |
Connector: | FC | Type: | Multi-mode |
Polishing: | PC,UPC,SPC,APC | Repeatabiity: | ±0.1dB |

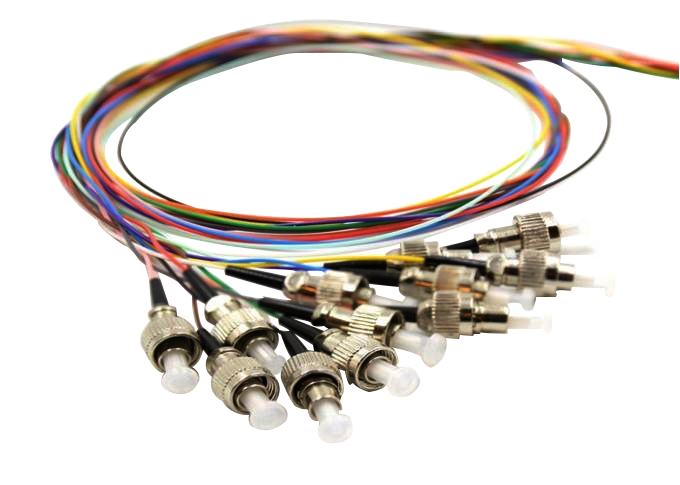

3 Meters Fiber Optic Pigtails Aqua OM2 / OM3 FC 12 Jacketed MM5010Gb For FTTH
Multi mode Fiber Optic Pigtals
Fiber types: OM1, OM2 and OM3
Construction of secondary protection: tight or loose
Available in 12 colours of primary and secondary protection
Features
● Low insertion loss, high return loss
● Good repeatability & mutual insert performance, >1000 times
● Good temperature stability & reliable
● Working Temperature: -40°C~+75°C
● We offer the OEM, ODM or customized manufacturing ways
Applications
● Telecommunications & communication system;
● Broadband & optical fiber access network;
● Om3 sc fiber optic pigtail in FTTH, FTTB, FTTX network
● Connection between the optical transmission network and the optical transmission equipment
Specifications
Parameter | |||||
Item | Mode Type | PC | SPC | UPC | APC |
Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB | |
Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB | |
Repetition Test | Additional Loss≤0.1dB,Return Loss Variability<5dB | ||||
Temperature Stability('-40°C~85°C) | Additional Loss≤0.2dB,Return Loss Variability<5dB | ||||
Operating Temperature | -40°C+~75°C | ||||
Storage Temperature | -40°C+~85°C | ||||
-Option for Cable Diameters:0.9mm , 2.0mm ,3.0mm & others | |||||
-Type:simplex and duplex | |||||
-Material Type: PVC , Hytrel , LSZH , OFNP , OFNR | |||||
