Detailed Product Description
Fiber Quantity: | 4-48 | Application: | CATV/LANs |
Type Of Connector: | FC,SC,ST,LC,MU, E2000,MTRJ | Fiber Type: | Ribbon, Bunchy |
Polishing: | PC,UPC,SPC,APC | Repeatabiity: | ±0.1dB |

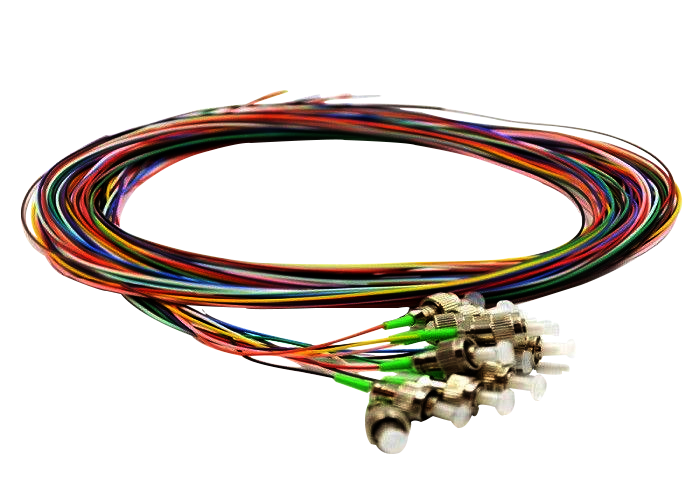

2.0 3.0mm Fexible SM MM OM4 OM3 FC Fiber Optic Pigtails with LSZH Jacket
Multi mode Fiber Optic Pigtals
Fiber types: OM1, OM2 and OM3
Fiber Cores:4-48
Type of Loose Tube: 0.9mm 2.0mm 3.0mm
Construction of secondary protection: tight or loose
Available in 12 colours of primary and secondary protection
Features
● Low insertion loss and high return loss
● Serialized & Individual Test Records
● Guaranteed Zero Defects
● Meets ROHS and Bell core GR 326-core standards
● Custom Configurations Available at No Extra Charge
● Available in fiber bunch, ribbon fan-out, pigtail available
Applications
● Telecommunication networks
● Fiber optic communication networks
● CATV, LAN, WAN, Test &Measurement
● Optical access network
● Data processing networks
● Premise installations
Specifications
Parameter | |||||
Item | Mode Type | PC | SPC | UPC | APC |
Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB | |
Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB | |
Repetition Test | Additional Loss≤0.1dB,Return Loss Variability<5dB | ||||
Temperature Stability('-40°C~85°C) | Additional Loss≤0.2dB,Return Loss Variability<5dB | ||||
Operating Temperature | -40°C+~75°C | ||||
Storage Temperature | -40°C+~85°C | ||||
-Option for Cable Diameters:0.9mm , 2.0mm ,3.0mm & others | |||||
-Type:simplex and duplex | |||||
-Material Type: PVC , Hytrel , LSZH , OFNP , OFNR | |||||
