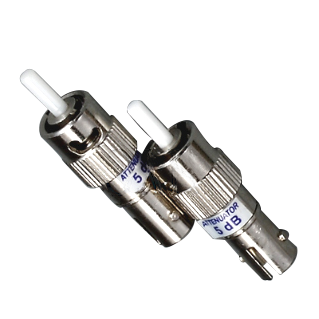

ST/PC SM Attenuator ( Adapter Type And Connector Type)

  • MXT


Feature

● High return loss

● Max operation power(1W)

● Low wavelength relativity

● Low polarization related loss

● Compact design


Area of Application

● Fiber optical distributing frame

● Fiber optical network system

● Hi-speed fiber optical transmission system

● CATV system

● Long distance DWDM system

● Optical add-drop multiplexers (OADM)


Specifications

Attenuation value

1 3 5 10 15 20 25 dB

Attenuation precision

<5dB±0.3dB
<10dB±0.5dB
>10dB±10%

Return loss

PC >45dB

Operation wavelength

1310nm and 1550nm(SM)

Polarization loss

<0.1dB

Operation temperature

-40℃ ~ +75℃

Storage temperature

-40℃ ~ +85℃

Temperature(Unencapsulation)

95%RH Apply Telecordia standard(GR-910-CORE)
