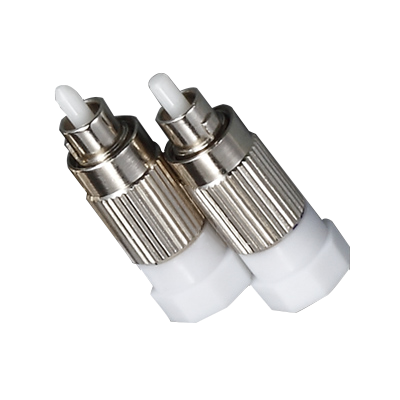

FC/PC/APC Attenuator ( Adjusting Type, Adapter Type, Connector Type, On-line Type)
Home » Products » FTTH Accessories » Fiber Optic Attenuator » FC/PC/APC Attenuator ( Adjusting Type, Adapter Type, Connector Type, On-line Type)
FC/PC/APC Attenuator ( Adjusting Type, Adapter Type, Connector Type, On-line Type) FC/PC/APC Attenuator ( Adjusting Type, Adapter Type, Connector Type, On-line Type)

loading

FC/PC/APC Attenuator ( Adjusting Type, Adapter Type, Connector Type, On-line Type)

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • FC/PC/APC

  • MXT

Availability:
Quantity:
Inquire Add to Basket
Product Description


Features

● High return loss

● Simple structure

● Max operation power(1W)

● Low wavelength relativity

● Low polarization related loss


Area of Applications

● Fiber optical distributing frame

● Fiber optical network system

● High speed fiber optical transmission system

● CATV system

● Long distance DWDM system

● Optical add-drop multiplexers(OADM)


Function instruction

Attenuation value

1、 3、 5、 10、 15、 20、25 dB

Attenuation precision

＜5dB±0.3dB
＜10dB±1dB
＞10dB±10％

Return loss

PC＞45dB  APC＞60dB

Operation wavelength

1310nm and 1550nm(SM)

Polarization loss

＜0.1dB

Operation temperature

-40℃ ~ +75℃

Storage temperature

-40℃ ~ +85℃

Temperature(Unencapsulation)

95％RH Apply Telecordia standard(GR-910-CORE)
