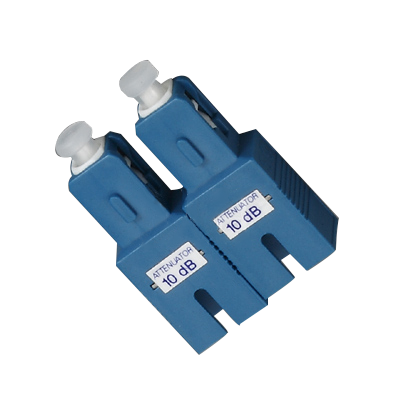

MXT
Feature
● High return loss
● Max operation power(1W)
● Low wavelength relativity
● Low polarization related loss
● Compact design
Area of Application
● Fiber optical distributing frame
● Fiber optical network system
● Hi-speed fiber optical transmission system
● CATV system
● Long distance DWDM system
● Optical add-drop multiplexers (OADM)
Specifications
Attenuation value | 1 3 5 10 15 20 25 dB |
Attenuation precision | ＜5dB±0.3dB |
Return loss | PC ＞45dB |
Operation wavelength | 1310nm and 1550nm(SM) |
Polarization loss | ＜0.1dB |
Operation temperature | -40℃ ~ +75℃ |
Storage temperature | -40℃ ~ +85℃ |
Temperature(Unencapsulation) | 95％RH Apply Telecordia standard(GR-910-CORE) |
