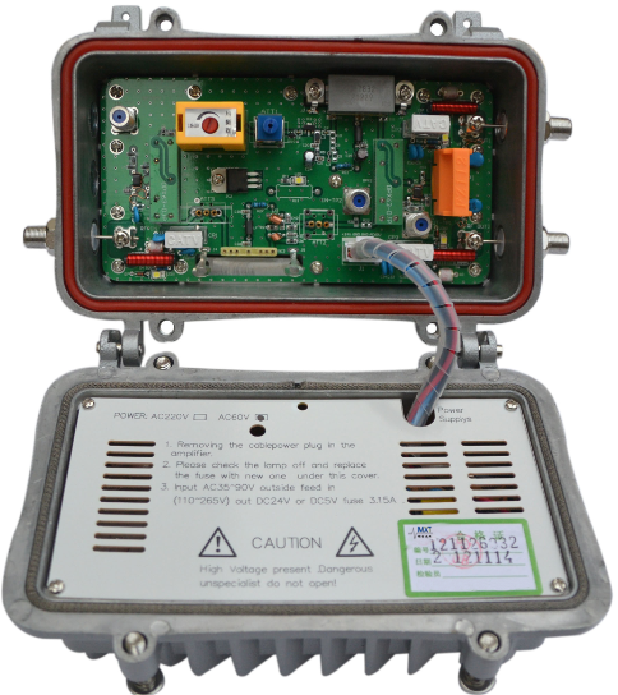

MXT-RA30-860RA Single module bi-directional amplifier, the former adopts GaAs MMIC amplification; the latter adopts GaAs module amplification. It is characterized by high output level, good in-band flatness and non-linearity index. Plug-in one-way tap or two-way splitter output, to operate conveniently. Two-way or two-way pre-reversed optional. This kind of amplifier is used to work in CATV trunk transmission network and distribution network.
Features
● 862MHz bandwidth.
● Adopts high gain push-pull or GaAs amplifier module to ensure high level and good SNR.
● The design of two-output can replace the mode of distribution or subdivision flexibly.
● Built-in modulated equalizer and modulated attenuator, convenient for debug.
● Plug-in (reserved) reverse module may open up reverse channel easily.
● External power pilot light, easy to observe the operating status.
● Die-cast aluminum housing, high-quality switching power supply and the effective lightning-proof measure.
Block diagram
Specifications
Items | Units | Forward path | Return path | Remark |
Frequency range | MHz | **～862 | 5～** | |
In-band flatness | dB | ≤±1.0 | ||
Equalization adjusted range | dB | 0～18dB/adjustable continuously | —— | |
Attenuation adjusted range | dB | 0～20dB/adjustable continuously | 0～10dB/fixed insert | |
Nominal input level | dBuV | 72 | 80 | —— |
Nominal gain | dB | 30（28） | 20（18） | 1-way tap (2-way splitter) |
Min gain | dB | ≥30（28） | ≥20（18） | |
Nominal output level | dBuV | 102 (100) | 100 (98) | |
C/CTB | dB | ≥62 | —— | PAL-D/59 channel |
C/CSO | dB | ≥62 | —— | PAL-D/59 channel |
RF test | dB | -20±1.0 | -20±1.0 | |
Noise figure | dB | ≤10 | ≤10 | |
Return loss | dB | ≥14 | ≥16 | |
Consumption | W | ≤11（Max） | ≤14(Max) | |
HUM | % | ＜2 | ||
Anti-thunder capacity | KV | 5（10/700μS） | ||
Voltage | V | AC35～90/AC110～265 | ||
Operation temperature | ℃ | -40～＋55 | ||
Dimension | mm | 240×150×120 | ||
