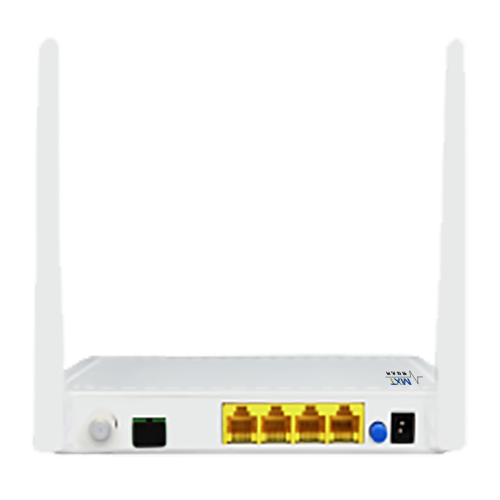

MXT-GPON-ONT-003A(Includes Wi-Fi series) GIGA Passive Optical Network ONT

MXT-GPON-ONT-003A series is fiber to the home multi service access GPON ONT. It’s based on the mature, stable, high cost performance GPON technology and has gigabit Ethernet switching, WDM and HFC technology. MXT-GPON-ONT-003A series has a higher bandwidth, higher reliability, easy management and good quality of service (QoS) guarantee with technical performance of equipment meet the ITU- T G. 984 requirements and have good compatibility with third party manufacturers OLT.

  • MXT-GPON-ONT-003A
  • MXT

Brief Views

   MXT-GPON-ONT-003A series is fiber to the home multi service access GPON ONT. It’s based on the mature, stable, high cost performance GPON technology and has gigabit Ethernet switching, WDM and HFC technology. MXT-GPON-ONT-003A series has a higher bandwidth, higher reliability, easy management and good quality of service (QoS) guarantee with technical performance of equipment meet the ITU- T G. 984 requirements and have good compatibility with third party manufacturers OLT.

   GPON is the latest generations of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic. GPON network provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. GPON enables fiber to the home (FTTH) deployments economically resulting to accelerated growth worldwide.

   It adopts single fiber WDM technology with downlink wavelength 1550nm and 1490nm, uplink wavelength 1310nm. It only needs one-core fiber to transmit data and CATV service.

   MXT-GPON-ONT-003A series can integration wireless function with meet 802.11 n/b/g technical standards,  It has two outer high gain directional antenna, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.



Functional Feature

● Support port-based rate limitation and bandwidth control;

● In compliant with ITU - T G. 984 Standard

● Wi-Fi series meet 802.11 n/b/g technical standards

Support data encryption, group broadcasting, port Vlan separation ,etc.

Support Dynamic Bandwidth Allocation (DBA)

Support ONU auto-discovery/Link detection/remote upgrade of software;

Support port mode of VLAN configuration

Support power-off alarm function ,easy for link problem detection

Support broadcasting storm resistance function

Support port isolation between different ports

Support port flow control

Support ACL and SNMP to configure data packet filter flexibly

Specialized design for system breakdown prevention to maintain stable system

Support software online upgrading

EMS network management based on SNMP ,convenient for maintenance

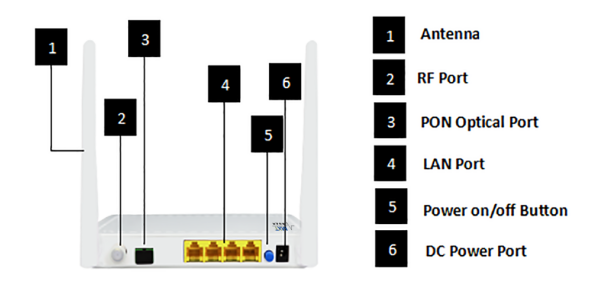

Product interface and LED definitions

 33

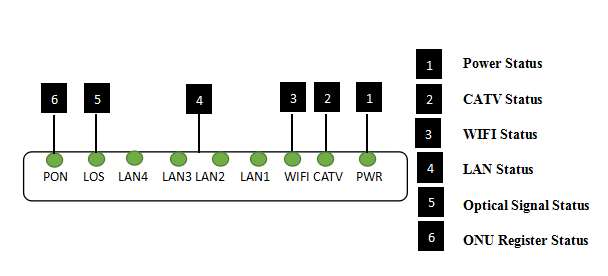

Indicator

Description

1

PWR

Power status

On: The ONU is power on

Off: The ONU is Power off

2

CATV

CATV status

On:CATV optical normal

Off:The CATV signals are not received

3

WIFI

WIFI

Blinking:Data is being transmitted

On:Wi-Fi function Opens

Off:Wi-Fi function Close

4

LAN1-4

LANport status

On: Ethernet connection is normal

Blinking: Data is being transmitted through the Ethernet port

Off: Ethernet connection is not set up

5

LOS

EPON optical signals

On: Optical power lower than receiver sensitivity ;

Off: Optical in normal

6

PON

ONU Register

On: Success to register to OLT

Blinking: In process of registering to OLT

Off: Failed to register to OLT;


Specification

Item

Parameter

PON Interface

1*GPON port, FSAN G.984.2 standard, Class B+

Downstream Data Rate:2.488Gbps

Upstream Data Rate:1.244Gbps

SC/APC single mode fiber

28dB Link loss and 20KM distance with 1:128

User Ethernet
Interface

4*10/100M or 4*10/100/1000Mor 1*10/100/1000M and 3*10/100M auto-negotiation

Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance

RF Interface

Female F-Type Connector

Power Interface

12V DC Power supply

PON Optical Parameter

Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: 0.5~5dBm
Rx Sensitivity: -28dBm
Saturation Optical Power: -8dBm

Data Transmission Parameter

PON Throughput: Downstream 2.488Gbit/s s; Upstream 1.244Gbit/s
Ethernet: 100Mbps or 1000Mbps
Packet Loss Ratio:<1*10E-12
latency:<1.5ms

Business Capability

Layer 2 wire speed switching

Support VLAN TAG/UNTAG,VLAN conversion

Support Port-based speed limitation

Support Priority classification

Support storm control of broadcast

Support loop detection

Network Management

Standard compliant OMCI interface as defined by ITU-T G.984.4

Support WEB management and TR069 remote management

Management Function

Status monitor, Configuration management, Alarm management,
Log management

Shell

Plastic casing

Power

Power supply: 12V DC/1A

Power consumption:

4FE+WIFI+CATV:<9W

1GE+3FE+WIFI+CATV:<9.25W

4GE+WIFI+CATV:<10W

Physical Specifications

Item Dimension:170mm(L)*130mm(W)*30mm(H)

Item weight:0.3kg

Environmental Specifications

Operating temperature: 0 to 50ºC
Storage temperature: -40 to 85ºC
Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 10% to 90%(Non-condensing)

CATV

Item

Parameter

Wavelength

1550nm

Optical return loss

>45dB

Input optical power

-18dBm~0dBm

RF frequency

47MHz~1000MHz

RF output lever

78dBuV (@-12~-2dBm@85MHz)

CNR

>41dB (@-10dBm@DS22 Channel)

CSO

>60dBc (@-10dBm@DS22 Channel)

CTB

>60dBc (@-10dBm@DS22 Channel)

RF output return loss

>12dB

RF impedance

75Ω

AGC function

Support

WIFI Specification

Item

Parameter

Performance parameters

Operating Mode

Router or bridge

Antenna gain

5dBi

Throughput

IEEE 802.11b: 11Mbps

IEEE 802.11g: 54 Mbps

IEEE 802.11n: 300Mbps

Frequency

2.412 ~ 2.472 GHz

Channel

13*Channel, configurable to meet the standard of USA, Canada, Japan and China

Modulation

DSSS , CCK and OFDM

Coding

BPSK, QPSK, 16QAM and 64QAM

RF receive sensitivity

802.11b:

-83dBm @ 1 Mbps; -80dBm @ 2 Mbps;

-79dBm @ 5.5 Mbps; -76dBm @ 11 Mbps

802.11g:

-85dBm @ 6 Mbps; -84dBm @ 9 Mbps;

-82dBm @ 12 Mbps; -80dBm @ 18 Mbps;

-77dBm @ 24 Mbps; -73dBm @ 36 Mbps;

-69dBm @ 48 Mbps; -68dBm @ 54 Mbps

802.11n 20MHz:

-74dBm @ 65 Mbps;

-70dBm @ 130 Mbps;

802.11n 40MHz:

-70dBm @ 135 Mbps;

-67dBm @ 300 Mbps;

RF output lever

802.11b:

17 ±0.5dBm  @11Mbps

802.11g:

15 ±0.5dBm @ 54 Mbps; 16 ±0.5dBm @ 48 Mbps;

17 ± 1dBm @ 6 ~ 36 Mbps

802.11n  20MHz:

14 ± 0.5dBm @ 130 Mbps; 15 ± 0.5dBm @ 78 Mbps;

18 ± 0.5dBm @ 6.5 Mbps

802.11n  40MHz:

14 ± 0.5dBm @ 300 Mbps; 15 ± 0.5dBm @ 162 Mbps;

18 ± 0.5dBm @ 13.5 Mbps

Encryption Mode

802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)


Network application

Typical Solution:FTTH, FTTO

Typical Business:INTERNET, IPTV, VOD, IP Camera, WIFI

GPON 003

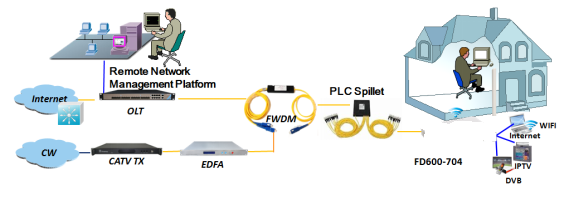

Figure: MXT-GPON-ONT-003A (include wifi) Series GPON ONU Application Diagram


Ordering Information

Product Name

Product Model

Descriptions

4FE+CATV+WIFI

Single fiber

MXT-GPON-ONT-003A

FCW

4*10/100M Ethernet interface, 1 RF interface, 1 GPON interface, built-in FWDM, Input optical power -18dBm~0dBm, support Wi-Fi function and AGC function, Plastic casing, external power supply adapter

4GE+CATV+WIFI

Single fiber

MXT-GPON-ONT-003A

GCW

4*10/100/1000M Ethernet interface, 1 RF interface, 1 GPON interface, built-in FWDM, Input optical power -18dBm~0dBm, support Wi-Fi function and AGC function, Plastic casing, external power supply adapter

3FE+1GE+CATV+

WIFI Single fiber

MXT-GPON-ONT-003A

FGCW

3*10/100M and 1*10/100/1000M Ethernet interface, 1 RF interface, 1 GPON interface, built-in FWDM, Input optical power -18dBm~0dBm, support Wi-Fi function and AGC function, Plastic casing, external power supply adapter
