Brief Views
MXT-GPON-ONT-002A is fiber to the home multi service access GPON ONT. It’s based on the mature, stable, high cost performance GPON technology and has gigabit Ethernet switching, WDM and HFC technology. MXT-GPON-ONT-002A has a higher bandwidth, higher reliability, easy management and good quality of service (QoS) guarantee with technical performance of equipment meet the ITU- T G. 984 requirements and have good compatibility with third party manufacturers OLT.
GPON is the latest generations of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic. GPON network provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. GPON enables fiber to the home (FTTH) deployments economically resulting to accelerated growth worldwide.
It adopts single fiber WDM technology with downlink wavelength 1550nm and 1490nm, uplink wavelength 1310nm. It only needs one-core fiber to transmit data and CATV service.
MXT-GPON-ONT-002A can integration wireless function with meet 802.11 n/b/g technical standards, It has built-in high gain directional antenna, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.
Functional Feature
● Support port-based rate limitation and bandwidth control;
● In compliant with ITU - T G. 984 Standard
● Wi-Fi series meet 802.11 n/b/g technical standards
● Support data encryption, group broadcasting, port Vlan separation ,etc.
● Support Dynamic Bandwidth Allocation (DBA)
● Support ONU auto-discovery/Link detection/remote upgrade of software;
● Support port mode of VLAN configuration
● Support power-off alarm function ,easy for link problem detection
● Support broadcasting storm resistance function
● Support port isolation between different ports
● Support port flow control
● Support ACL and SNMP to configure data packet filter flexibly
● Specialized design for system breakdown prevention to maintain stable system
● Support software online upgrading
● EMS network management based on SNMP ,convenient for maintenance

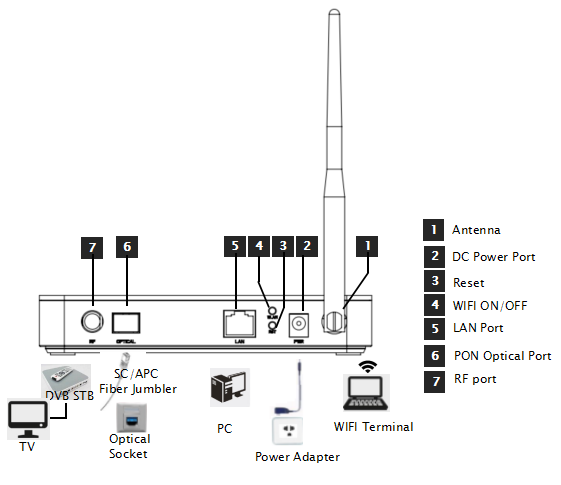

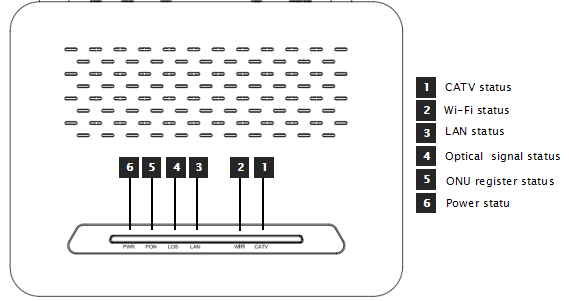

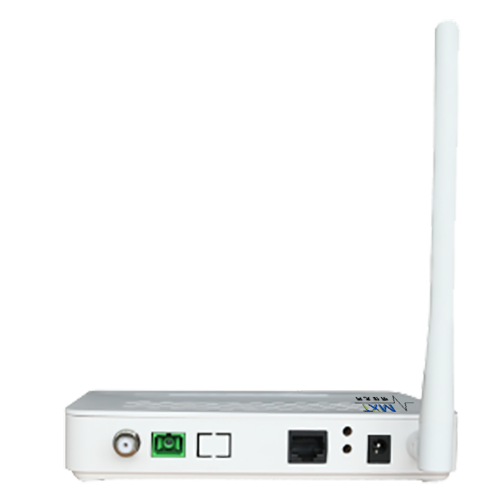

Product interface and LED definitions
Indicator | Description |
1 | CATV | CATV status | On：CATV optical normal Off：The CATV signals are not received |
2 | WIFI | WIFI | Blinking：Data is being transmitted On：Wi-Fi function Opens |
3 | LAN | LAN port status | On: Ethernet connection is normal Blinking: Data is being transmitted through the Ethernet port Off: Ethernet connection is not set up |
4 | LOS | EPON optical signals | On: Optical power lower than receiver sensitivity ; Off: Optical in normal |
5 | PON | ONU Register | On: Success to register to OLT Blinking: In process of registering to OLT Off: Failed to register to OLT; |
6 | PWR | Power status | On: The ONU is power on Off: The ONU is Power off |
Specification
Item | Parameter |
PON Interface | 1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate：2.488Gbps Upstream Data Rate：1.244Gbps SC/APC single mode fiber 28dB Link loss and 20KM distance with 1:128 |
User Ethernet
Interface | 1*10/100/1000M auto-negotiation Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance 1 RF output Female F-Type Connector |
Power Interface | 12V DC Power supply |
PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: 0.5～5dBm
Rx Sensitivity: -28dBm
Saturation Optical Power: -8dBm |
Data Transmission Parameter | PON Throughput: Downstream 2.488Gbit/s s; Upstream 1.244Gbit/s
Ethernet: 1000Mbps
Packet Loss Ratio:<1*10E-12
latency:<1.5ms |
Business Capability | Layer 2 wire speed switching Support VLAN TAG/UNTAG，VLAN translation Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support loop detection |
Network Management | Standard compliant OMCI interface as defined by ITU-T G.984.4 Support WEB management and TR069 remote management |
Management Function | Status monitor, Configuration management, Alarm management,
Log management |
Shell | Plastic casing |
Power | Power supply: DC 12V /1A Power consumption:<6.5W |
Physical Specifications | Item Dimension：160mm(L)*140mm(W)*29mm(H) Item weight：0.2kg |
Environmental Specifications | Operating temperature: 0 to 50ºC
Storage temperature: -40 to 85ºC
Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 10% to 90%(Non-condensing) |
CATV
Item | Parameter |
Wavelength | 1550nm |
Optical return loss | >45dB |
Input optical power | -18dBm～0dBm |
RF frequency | 47MHz~1000MHz |
RF output lever | 78dBuV (@-12~-2dBm@85MHz) |
CNR | >41dB (@-10dBm@DS22 Channel) |
CSO | >60dBc (@-10dBm@DS22 Channel) |
CTB | >60dBc (@-10dBm@DS22 Channel) |
RF output return loss | >12dB |
RF impedance | 75Ω |
AGC function | Support |
WIFI Specification (Suitable for the WIFI devices)
Item | Parameter |
Performance parameters | Operating Mode | Router or bridge |
Antenna gain | 5dBi |
Throughput | IEEE 802.11b: 11Mbps IEEE 802.11g: 54 Mbps IEEE 802.11n: 300Mbps |
Frequency | 2.412 ~ 2.472 GHz |
Channel | 13*Channel, configurable to meet the standard of USA, Canada, Japan and China |
Modulation | DSSS , CCK and OFDM |
Coding | BPSK, QPSK, 16QAM and 64QAM |
RF receive sensitivity | 802.11b: -83dBm @ 1 Mbps; -80dBm @ 2 Mbps; -79dBm @ 5.5 Mbps; -76dBm @ 11 Mbps 802.11g: -85dBm @ 6 Mbps; -84dBm @ 9 Mbps; -82dBm @ 12 Mbps; -80dBm @ 18 Mbps; -77dBm @ 24 Mbps; -73dBm @ 36 Mbps; -69dBm @ 48 Mbps; -68dBm @ 54 Mbps 802.11n 20MHz: -74dBm @ 65 Mbps; -70dBm @ 130 Mbps; 802.11n 40MHz: -70dBm @ 135 Mbps; -67dBm @ 300 Mbps; |
RF output lever | 802.11b: 17 ±0.5dBm @11Mbps 802.11g: 15 ±0.5dBm @ 54 Mbps; 16 ±0.5dBm @ 48 Mbps; 17 ± 1dBm @ 6 ~ 36 Mbps 802.11n 20MHz: 14 ± 0.5dBm @ 130 Mbps; 15 ± 0.5dBm @ 78 Mbps; 18 ± 0.5dBm @ 6.5 Mbps 802.11n 40MHz: 14 ± 0.5dBm @ 300 Mbps; 15 ± 0.5dBm @ 162 Mbps; 18 ± 0.5dBm @ 13.5 Mbps |
Encryption Mode | 802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK) |
Network application
● Typical Solution：FTTH, FTTO
● Typical Business：INTERNET, IPTV, VOD, IP Camera, WIFI

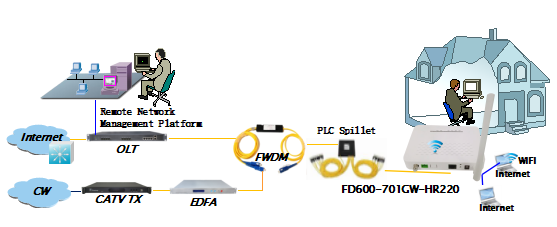

Figure: MXT-GPON-ONT-002A Application Diagram
Ordering Information
Product Name | Product Model | Descriptions |
1GE+CATV+WIFI Single fiber | MXT-GPON-ONT-002A | 1*10/100/1000M Ethernet interface, 1 RF interface, 1 GPON interface, built-in FWDM, Input optical power -18dBm～0dBm,support WiFi function and AGC function, Plastic casing, external power supply adapter |
