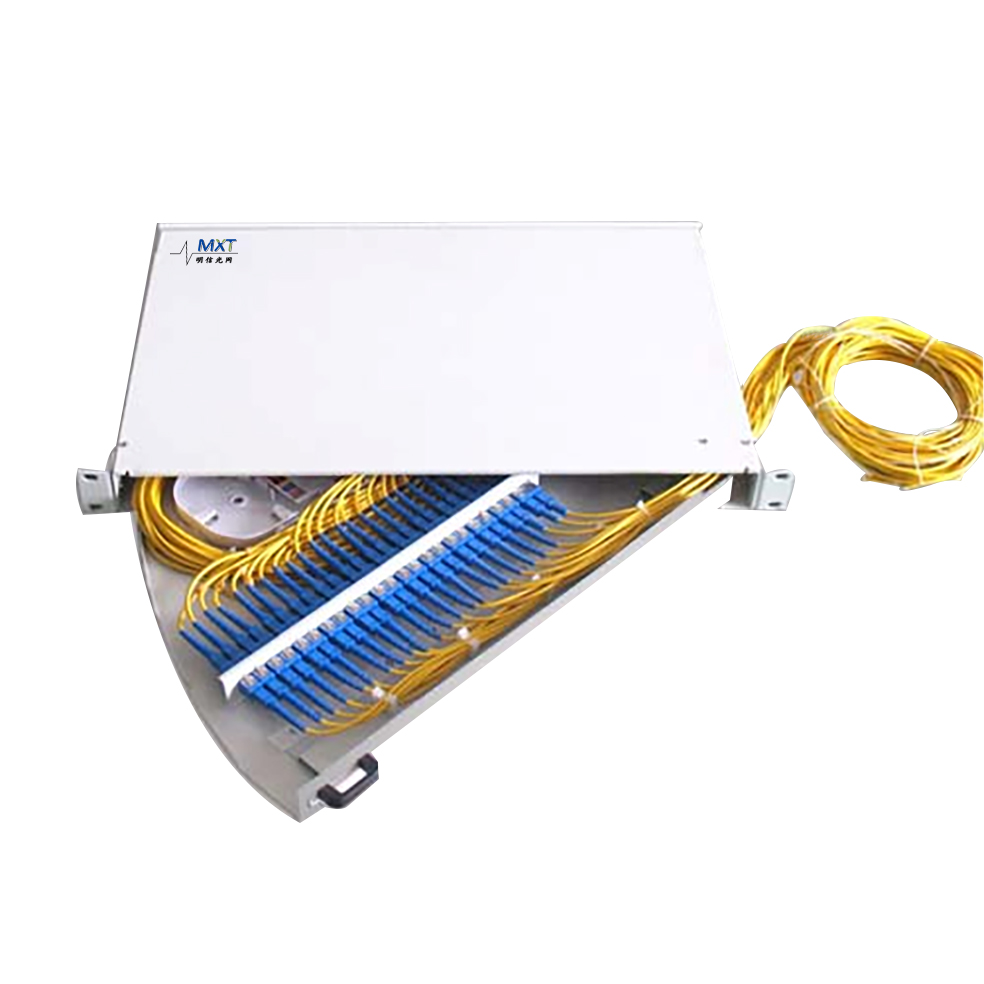

Fiber Optic Terminal Box (OTB-007)

  • OTB-007
  • MXT

Applications

● Fiber to the building(FTTB)

● Optical network

● Local area networks

● Wide area networks



Features

● 19"standard structure, rack mounting

● Applicable in the termination

● Available for the installation of FC,SC,ST,LC Adapters


Specifications

Item

OTB-001

OTB-002

OTB-003

OTB-004

OTB-005

OTB-006

OTB-007

OTB-008

Size(H x W x D)mm

280x130x1U

485x200x1U

485x305x2U

485x200x1U

485x305x1U

430x300x1U

430x

300x1U

436x

300x2U

Cable diameter(mm)

5 ~ 10

Adapter ports

8

24

48

24

24

24

24

96

Max capacity of splice

8

24

48

24

24

48

24

96

Suitable Adapter

FC \ SC \ ST \ LC

Materials

Stainless steel

Weight(kg)

1.5

2.6

3.4

3.5

3.7

3.9

4.5

5.5

Type

Fixed

Slide

Slide

Fixed

Slide

Slide

 * 1U=44.45mm



Competitive Advantage

MXT strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
