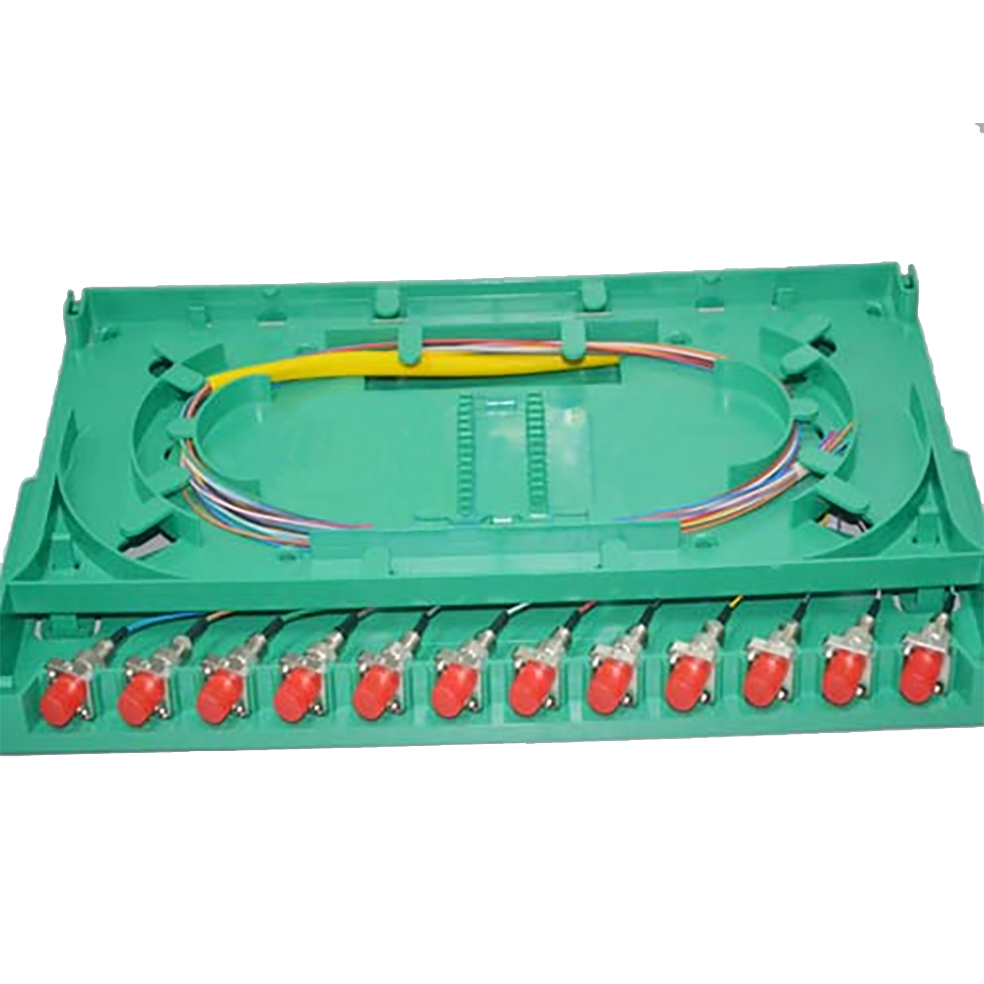

OTB-005
MXT
Quick Details
Modle Number: OTB-005
Size: 485*200*1U(1U=44.45mm)
Cable diameter: 5mm-10mm
Adaptor ports: 12
Max capacity of splice: 24
Suitable adaptor: SC,FC,LC,ST
Features
● 19'' standard structure, rack mounting.
● Applicable in the termination
● Available for the installation of FC, SC, ST, LC adaptors
Applications
● Fiber to the home(FTTB)
● Optical network
● Local area networks
● Wide area networks
Specifications
Item | OTB-001 | OTB-002 | OTB-003 | OTB-004 | OTB-005 | OTB-006 | OTB-007 | OTB-008 | |
Size(H x W x D)mm | 280x130x1U | 485x200x1U | 485x305x2U | 485x200x1U | 485x305x1U | 430x300 x1U | 430x300 x1U | 436x300 x2U | |
Cable diameter(mm) | 5 ~ 10 | ||||||||
Adapter ports | 8 | 24 | 48 | 24 | 24 | 24 | 24 | 96 | |
Max capacity of splice | 8 | 24 | 48 | 24 | 24 | 48 | 24 | 96 | |
Suitable Adapter | FC \ SC \ ST \ LC | ||||||||
Materials | Stainless steel | ||||||||
Weight(kg) | 1.5 | 2.6 | 3.4 | 3.5 | 3.7 | 3.9 | 4.5 | 5.5 | |
Type | Fixed | Slide | Slide | Fixed | Slide | Slide | |||
Competitive Advantage
MXT strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
