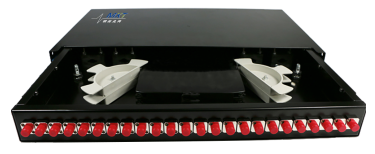

Cold-rolled Steel FC adapter hole 24 Core Drawer / sliding type Fiber Optic Terminal Box

  • OTB-004
  • MXT

Quick Details

Brand Name: MXT/OEM

Model Number: OTB-004

Size: 430*250*1U(1U=44.45mm)

Cable diameter: 5mm-10mm

Adaptor ports: 24

Max capacity of splice: 48

Suitable adaptor: SC,FC,LC,ST

Materials: stainless steel

Packing: indevidual box pack, 5pcs/carton

Weight: 14.2kg/carton(5pcs)

Certificate: ISO9001, ROHS



Discription

Termination box is suitable for jointing fiber cable and pigtail,and it protects fiber optic splices and helps to distribute. The termination box is either a wall-Mounting type or a desktop type, which is mainly used in telecommunication equipment room and network equipment room.



Features

● Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.

● The box has a pothook, which is convenient to install and dismantle.

● The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray.

● The box is of unique structure, reasonable layout, and has adequate room for operation.

● Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly.

● The indoor type is of excellent seal performance, which could prevent water from entering effectively.


Specification

Environment temperature

-25°C ~+40°C

Storage temperature

-25°C ~ +55°C

Air pressure

70kpa -- 106kpa

Mating cycles

>1000times

11

Competitive Advantage

MXT strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
