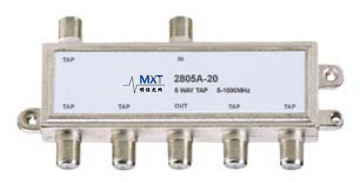

A Series Indoor Tap 5-way Tap 2805A- **

  • 2805A
  • MXT

Features

● Zinc alloy die casting shell with tin or  nickel plated surface treatment.
● Adopt complete tin sealed design,shield level:5-1000MHz≥100dB.
● Two way transmission design.
● Easy installation, two side holes are used for fixing the main unit.
● Surface spray-paint treatment, anti-oxidation and no color fading.


       Name:5-way Tap           Model: 2805A- **



5-way Tap

Item

Parameters

Tap
Loss
(dB)

Normal

13(12)

14

16

18

20

22

24

26

Typical
(Permissible Deviation)

5MHz

±0.7

11.9

14.2

15.9

17.9

19.8

22.1

23.6

25.5

50MHz

±0.7

11.8

14.0

15.9

17.9

20.2

22.0

23.8

25.8

550MHz

±0.7

11.7

14.0

15.9

17.9

20.5

22.0

24.0

26.0

750MHz

±1.5

12.7

14.5

16.5

18.2

20.8

22.4

24.4

26.2

1000MHz

±1.5

13.5

14.8

16.6

18.6

20.8

22.4

24.6

26.6

Insertion
Loss
(dB)

5MHz

≤3.7

≤2.6

≤1.7

≤1.3

≤1.0

≤1.0

≤0.9

≤0.8

50MHz

≤3.5

≤2.4

≤1.5

≤1.3

≤1.0

≤1.0

≤0.7

≤0.7

550MHz

≤3.6

≤2.5

≤1.6

≤1.3

≤1.0

≤0.9

≤0.7

≤0.7

750MHz

≤3.9

≤2.6

≤1.7

≤1.4

≤1.2

≤1.2

≤0.8

≤0.8

1000MHz

≤4.0

≤2.9

≤2.3

≤1.6

≤1.4

≤1.2

≤1.0

≤0.9

Reverse Isolation
(dB)

5-50MHz

≥27

≥28

≥28

≥28

≥30

≥32

≥34

≥36

50-550MHz

≥24

≥25

≥25

≥25

≥28

≥30

≥32

≥32

550-750MHz

≥22

≥23

≥24

≥24

≥26

≥28

≥28

≥28

750-1000MHz

≥20

≥20

≥22

≥22

≥24

≥26

≥26

≥27

Tap-Tap Isolation
(dB)

5-50MHz

≥27

≥28

≥28

≥28

≥30

≥32

≥34

≥36

50-550MHz

≥25

≥25

≥25

≥25

≥28

≥30

≥32

≥32

550-750MHz

≥23

≥23

≥24

≥24

≥26

≥28

≥28

≥28

750-1000MHz

≥22

≥22

≥23

≥22

≥25

≥26

≥26

≥27

Return
Loss
(dB)

5-50MHz

≥18

≥20

≥20

≥22

≥22

≥22

≥22

≥22

50-550MHz

≥20

≥20

≥20

≥20

≥20

≥20

≥20

≥20

550-750MHz

≥16

≥17

≥17

≥17

≥17

≥17

≥17

≥17

750-1000MHz

≥16

≥16

≥16

≥16

≥16

≥16

≥16

≥16
