2816A
MXT
Features
● Zinc alloy die casting shell with tin or nickel plated surface treatment.
● Adopt complete tin sealed design，shield level：5-1000MHz≥100dB.
● Two way transmission design.
● Easy installation, two side holes are used for fixing the main unit.
● Surface spray-paint treatment, anti-oxidation and no color fading.

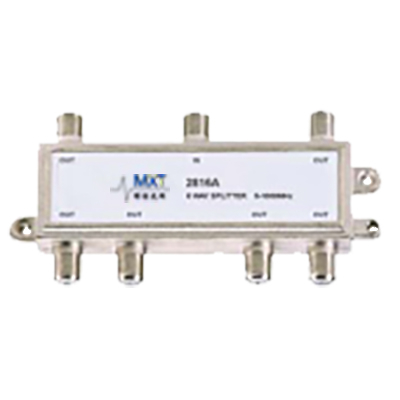

6-way Splitter 2816A
ITEMS | MODEL | |||
Frequency Range | 2815A | 2816A | 2818A | |
Insertion | 5-10 MHz | ≤8.9 | ≤8.9 | ≤10.6 |
10-50 MHz | ≤8.8 | ≤8.8 | ≤11.0 | |
50-750 MHz | ≤9.9 | ≤9.9 | ≤11.5 | |
750-1000 MHz | ≤10.5 | ≤10.5 | ≤12.0 | |
Isolation | 5-10 MHz | ≥27 | ≥27 | ≥27 |
10-50 MHz | ≥25 | ≥25 | ≥25 | |
50-750 MHz | ≥25 | ≥25 | ≥25 | |
750-1000 MHz | ≥23 | ≥23 | ≥23 | |
Return Loss | 5-10 MHz | ≥16 | ≥16 | ≥16 |
10-50 MHz | ≥18 | ≥18 | ≥18 | |
50-750 MHz | ≥18 | ≥18 | ≥18 | |
750-1000 MHz | ≥16 | ≥16 | ≥16 | |
