2814A
MXT
Features
● Zinc alloy die casting shell with tin or nickel plated surface treatment.
● Adopt complete tin sealed design，shield level：5-1000MHz≥100dB.
● Two way transmission design.
● Easy installation, two side holes are used for fixing the main unit.
● Surface spray-paint treatment, anti-oxidation and no color fading.

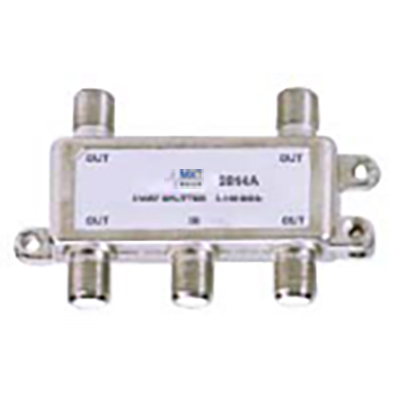

4-way Splitter 2814A
ITEMS | MODEL | |||
Frequency Range | 2812A | 2813A | 2814A | |
Insertion | 5-10 MHz | ≤3.5 | ≤5.7 | ≤6.8 |
10-50 MHz | ≤3.6 | ≤5.5 | ≤7.0 | |
50-750 MHz | ≤3.8 | ≤6.2 | ≤7.6 | |
750-1000 MHz | ≤4.0 | ≤6.5 | ≤8.0 | |
Isolation | 5-10 MHz | ≥25 | ≥22 | ≥27 |
10-50 MHz | ≥28 | ≥25 | ≥28 | |
50-750 MHz | ≥28 | ≥25 | ≥28 | |
750-1000 MHz | ≥25 | ≥22 | ≥25 | |
Return Loss | 5-10 MHz | ≥16 | ≥16 | ≥16 |
10-50 MHz | ≥18 | ≥18 | ≥18 | |
50-750 MHz | ≥18 | ≥18 | ≥18 | |
750-1000 MHz | ≥16 | ≥16 | ≥16 | |
Features
● Zinc alloy die casting shell with tin or nickel plated surface treatment.
● Adopt complete tin sealed design，shield level：5-1000MHz≥100dB.
● Two way transmission design.
● Easy installation, two side holes are used for fixing the main unit.
● Surface spray-paint treatment, anti-oxidation and no color fading.
4-way Splitter 2814A
ITEMS | MODEL | |||
Frequency Range | 2812A | 2813A | 2814A | |
Insertion | 5-10 MHz | ≤3.5 | ≤5.7 | ≤6.8 |
10-50 MHz | ≤3.6 | ≤5.5 | ≤7.0 | |
50-750 MHz | ≤3.8 | ≤6.2 | ≤7.6 | |
750-1000 MHz | ≤4.0 | ≤6.5 | ≤8.0 | |
Isolation | 5-10 MHz | ≥25 | ≥22 | ≥27 |
10-50 MHz | ≥28 | ≥25 | ≥28 | |
50-750 MHz | ≥28 | ≥25 | ≥28 | |
750-1000 MHz | ≥25 | ≥22 | ≥25 | |
Return Loss | 5-10 MHz | ≥16 | ≥16 | ≥16 |
10-50 MHz | ≥18 | ≥18 | ≥18 | |
50-750 MHz | ≥18 | ≥18 | ≥18 | |
750-1000 MHz | ≥16 | ≥16 | ≥16 | |
