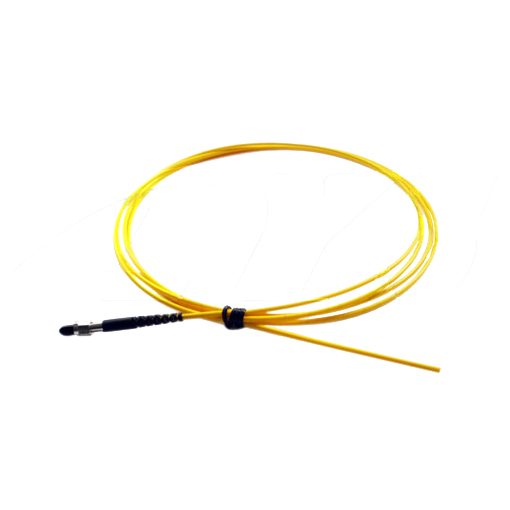

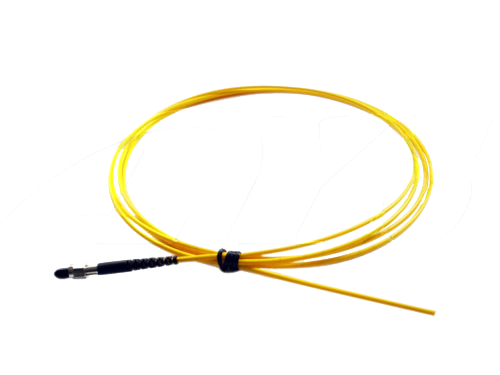

SMA905 Singlemode Fiber Optic Pigtail

Polish

UPC

APC

PC

Insertion Loss

≤0.2dB

≤0.3dB

≤0.2dB

Return Loss

≥55dB

≥65dB

≥35dB

Interchangeability

≤0.2dB

Salt Spray

≤0.1dB

Repeatability

≤0.1dB (1000 times)

Vibration

≤0.2dB (550Hz  1.5mm)

Temperature

≤0.2dB (-40+85 sustain 100 hours)

Humidity

≤0.2dB  (+25+65 93 R.H.100 hours)

Apex Offset

0μm ~ 50μm

Radius of Curvature

7mm ~ 25mm

Standards-Compliant

ROHS,IEC and GR-326

Fiber type

Min.Bandwidth

Distance

attenuation

62.5/125

850/1300nm

200/500 MHz/Km

@100Mbps 2km @1Gig 220m

850/1300nm

3.0/1.0dB/km

50/125

850/1300nm

500/500 MHz/Km

@100Mbps 2km @1Gig 500m

850/1300nm

3.0/1.0dB/km

50/125

10Gig Optimized

850/1300nm

2000/500 MHz/Km

@100Gig Varies by VCSEL

 typical 300m 2850nm

850/1300nm

3.0/1.0dB/km

9/125

1310/1550nm

Approx 100 Terahertz

Up to 100km Varies by

transceiver

1310/1550nm

0.4/0.3dB/km

Multimode:4,50/125-OM2
          5,62.5/125-OM1
          6,50/125-OM3

Fiber

Corning,China Fiber,other

Connector1

SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others

Polishing

PC,UPC,APC,MTRJ Male connector,MTRJ female connector

Connector2

SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others

Polishing

PC,UPC,APC,MTRJ Male connector,MTRJ female connector

Cord type

Simplex ,Duplex

Cable diameter

0.9mm ,2.0mm,1.8mm 3.0mm

Cable jacket

PVC,LSZH,OFNR,OFNP

length(M)

0.5m,1m,3M,5m,10m,20m,200m
