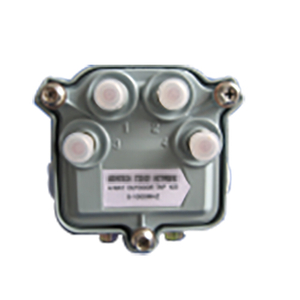

OUTDOOR D SERIES SPLITTERS Outdoor 8 Way TAP ( Half Power Pass ) 3808D-**

Availability:
OUTDOOR D SERIES SPLITTERS Outdoor 8 Way TAP ( Half Power Pass ) 3808D-**
  • 3808D

  • MXT

Features

● Used for field trunk of CATV, good waterproof design.
● 75Ω,5/8″KS-F trans-connector available.
● Adapt to 5-1000MHZ.
● Metal isolation netting, prevention of RF interference, good shield function.
● Pass power:10A AC/DC.


Outdoor 8 way TAP(half power pass)        mode: 3808D-**




8  WAY TAP


Item

PARAMETERS

Tap
Loss
(dB)

Normal

811

814

817

820

823

826

829

Typical
(Permissible Deviation)

5MHz

±1.0

11.9

13.7

16.5

19.2

23.8

25.4

28.2

50MHz

±1.0

11.5

14.0

16.5

19.7

23.6

25.6

28.6

550MHz

±1.0

11.6

14.5

16.9

19.8

23.9

25.9

28.9

750MHz

±1.0

12.0

15.2

17.2

20.4

24.3

26.4

29.3

1000MHz

±1.0

12.3

16.1

17.8

21.3

24.9

27.0

30.7

Insertion Loss
(dB)

5MHz

/

≤3.5

≤2.2

≤1.7

≤1.7

≤1.1

≤1.0

50MHz

/

≤3.8

≤2.7

≤1.9

≤1.9

≤1.3

≤1.1

550MHz

/

≤4.0

≤3.0

≤2.4

≤2.4

≤1.4

≤1.3

750MHz

/

≤4.5

≤3.5

≤2.8

≤2.8

≤2.0

≤1.8

1000MHz

/

≤5.0

≤4.0

≤3.2

≤3.2

≤2.4

≤2.2

Reverse Isolation
(dB)

5-50MHz

/

≥23

≥24

≥26

≥26

≥32

≥38

50-550MHz

/

≥22

≥24

≥26

≥26

≥31

≥31

550-750MHz

/

≥20

≥23

≥24

≥24

≥28

≥28

750-1000MHz

/

≥18

≥22

≥23

≥23

≥26

≥27

Tap-Tap Isolation
(dB)

5-50MHz

≥23

≥23

≥24

≥26

≥26

≥32

≥38

50-550MHz

≥22

≥22

≥24

≥26

≥26

≥31

≥31

550-750MHz

≥20

≥20

≥23

≥24

≥24

≥28

≥28

750-1000MHz

≥20

≥20

≥22

≥23

≥23

≥26

≥27

Return
Loss
(dB)

5-50MHz

≥20

≥18

≥20

≥22

≥22

≥22

≥22

50-550MHz

≥20

≥20

≥20

≥20

≥20

≥20

≥20

550-750MHz

≥17

≥16

≥17

≥17

≥17

≥17

≥17

750-1000MHz

≥14

≥14

≥14

≥14

≥14

≥14

≥14
